Parts Catalog

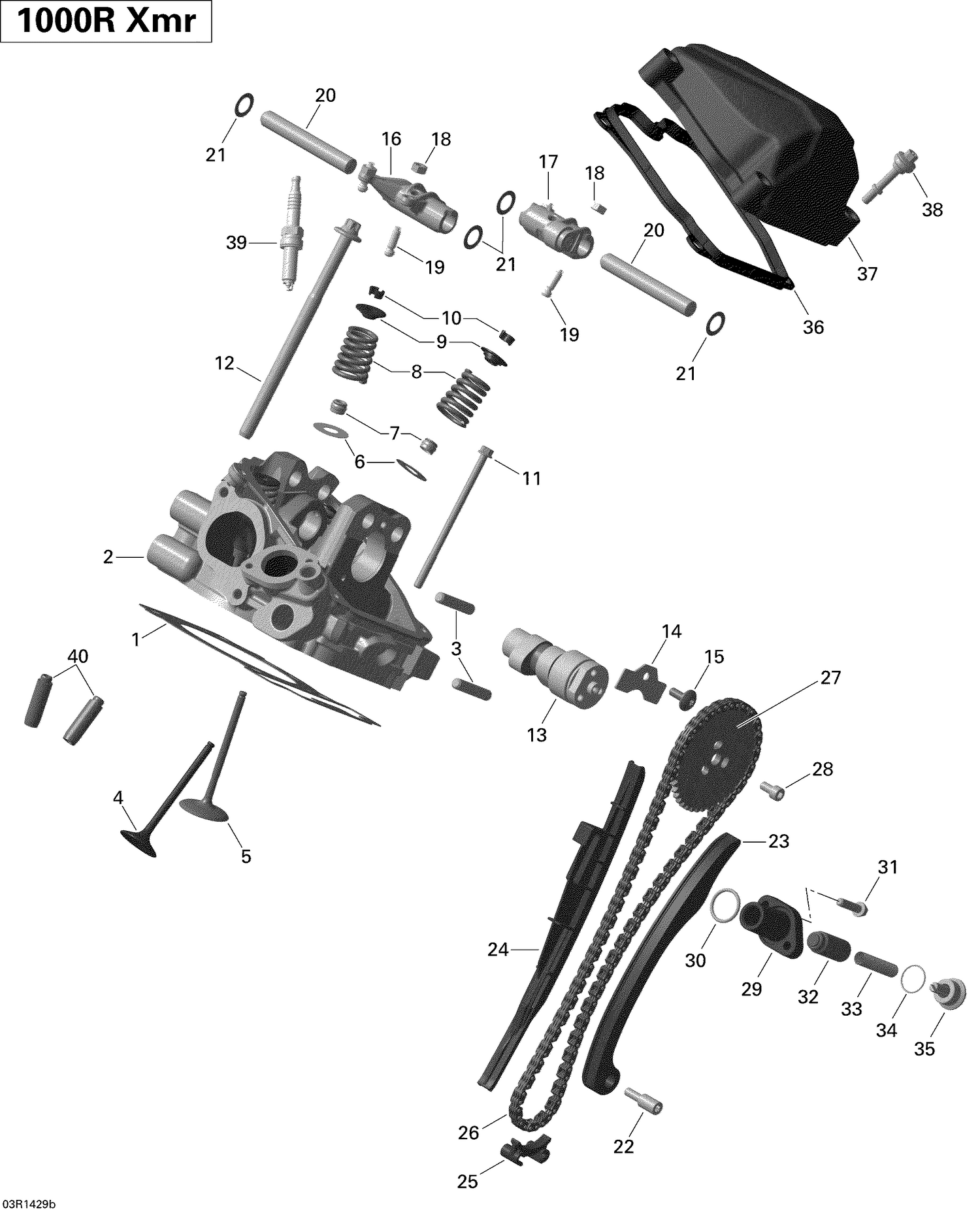

01- Cylinder Head, Rear _03R1429b

Parts (38)

Ref	Part Number	Description
1	420630195	Cylinder Head Gasket
3	420941014	Stud M8 x 26
4	420253172	Exhaust Valve 31MM This part replaces 420855023.
5	420253162	Intake Valve 36.5mm This part replaces 420254355.
6	420627525	Thrust Washer This part replaces 420627520.
7	420430420	Valve Stem Seal
8	420239292	Valve Spring
9	420254137	Valve Spring Retainer
10	420254602	Valve Cotter This part replaces 420254600.
11	420440612	Torx Flange Screw M6 X 105
12	420441287	Torx Screw M10 X 159 This part replaces 420441284.
13	420281942	Camshaft This part replaces 420637442.
14	420627743	Holding Strip
15	420241522	Torx Screw M6 X 16 This part replaces 420241525.
16	420653067	Rocker Arm Inlet This part replaces 420653065.
17	420653075	Rocker Arm Exhaust
18	420242913	Hex Nut M6 This part replaces 420242910.
19	420241337	Adjustment Screw M6 X 0.75 This part replaces 420241335.
20	420229714	Pin 12 X 87.5
21	420944382	Shim
22	420240943	Bearing Screw M6
23	420436019	Chain Tension Guide This part replaces 420436017.
24	420236583	Chain Guide
25	420236351	Chain Guide This part replaces 420236350.
26	420297068	Silent Chain This part replaces 420297067.
27	420254438	Timing Gear 42T This part replaces 420254435.
28	420840032	Allen Screw M6 X 12 This part replaces 420840031.
29	420236510	Chain Tensioner Housing
30	420430373	O-Ring This part replaces 420430370.
31	420641238	Torx Flange Screw M6 X 25
32	420236521	Chain Tensioner Plunger This part replaces 420236520.
33	420238120	Spring
34	420250890	O-Ring
35	420641150	Plug Screw
36	420630260	Gasket
37	420610393	Valve Cover This part replaces 420610394.
38	420440568	Hex Screw M6 X 30 This part replaces 420440567.
39	715900244	Spark Plug NGK LMAR8C-9
