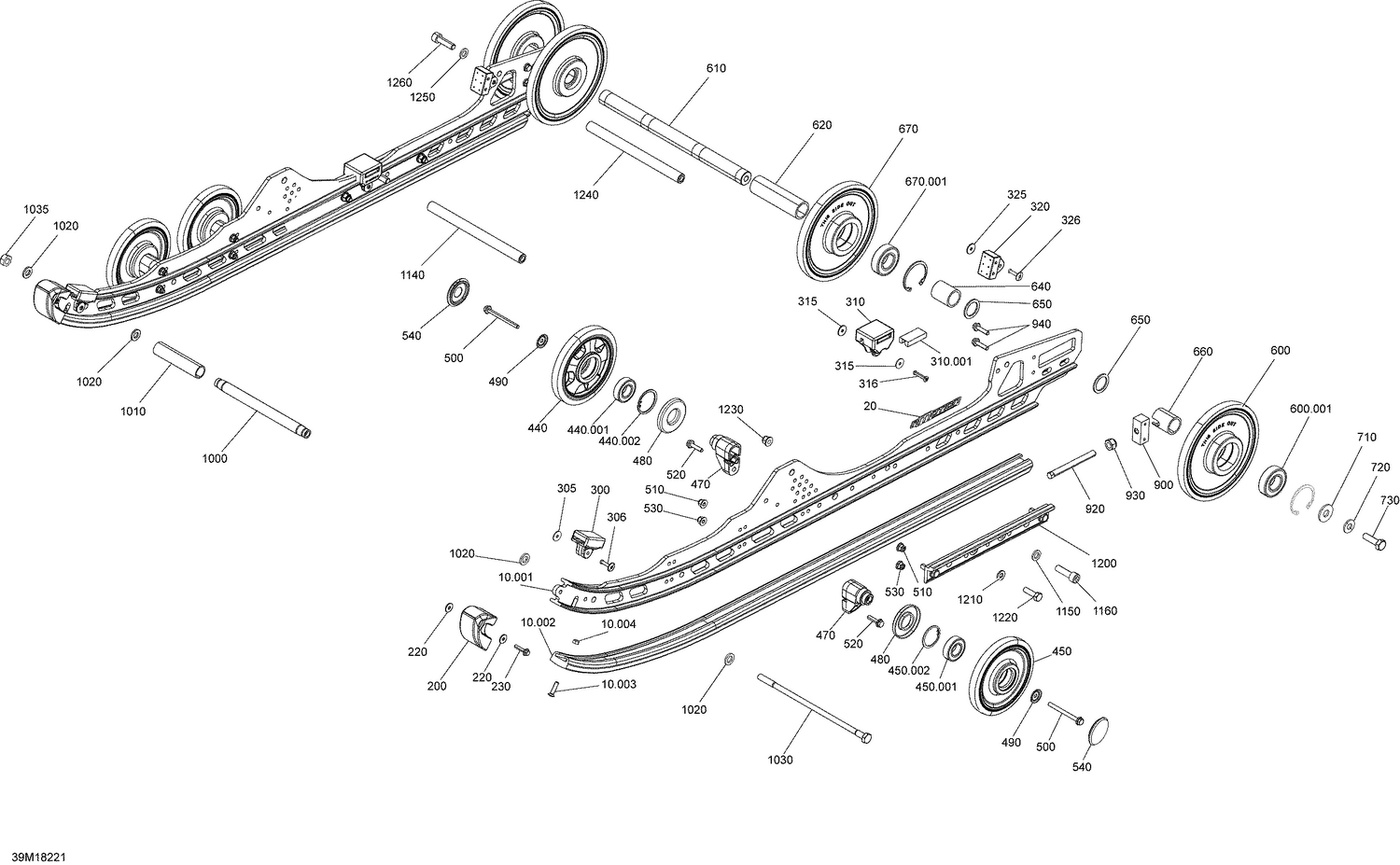

08- Rear Suspension MXZ X - 600R ETEC - Iron Dog - Inferior
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 516007816 | Runner Decal |
| 200 | 503196873 | Rail Protector This part replaces 503192530. |
| 220 | 250200140 | Washer |
| 230 | 207652544 | Hex. Flange Screw M5 X 25 |
| 300 | 503190576 | Rubber Stopper |
| 305 | 503191273 | Washer |
| 306 | 293150224 | Pop Rivet 3/16 |
| 315 | 503191273 | Washer |
| 316 | 293150013 | Pop Rivet 3/16" |
| 320 | 503192750 | Rubber Stopper |
| 325 | 503191273 | Washer |
| 326 | 293150224 | Pop Rivet 3/16 |
| 470 | 503193894 | Casted Support |
| 480 | 503190434 | Labyrinth Seal |
| 490 | 503191820 | Wheel Cup M6 |
| 500 | 250000944 | Hex. Flange Screw M6 X 70 |
| 510 | 233261466 | Hex. Flange Elastic Nut M6 |
| 520 | 250000945 | Hex. Flange Screw M6 X 25 |
| 530 | 233261466 | Hex. Flange Elastic Nut M6 |
| 540 | 503192771 | Black, Wheel Cap |
| 610 | 503167900 | Rear Axle |
| 620 | 503156000 | Center Spacer |
| 640 | 503182900 | Inner Spacer |
| 650 | 503180400 | Washer |
| 660 | 503189809 | Outer Spacer |
| 710 | 503183300 | Washer |
| 720 | 234201474 | Conical Spring Washer 10 mm |
| 730 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 900 | 503193808 | Tensioner |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1000 | 503193435 | Pivot Axle |
| 1010 | 503189265 | Spacer |
| 1020 | 250200143 | Flat Washer |
| 1030 | 503193227 | Bolt M10 X 251MM |
| 1035 | 233201466 | Flange Elastic Nut M10 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1200 | 503193726 | Black Reinforcement Runner |
| 1210 | 503192494 | Washer |
| 1220 | 207183054 | Hex. Cap Screw M8 X 30 |
| 1230 | 233281466 | Elastic Flange Nut M8 |
| 1240 | 503191260 | Axle Strap |
| 1250 | 503192496 | Washer |
