| Ref | Part Number | Description |
|---|
| 7 |
0326223 |
SUPPORT, Choke knob & shaft |
| 9 |
0431634 |
NEEDLE VALVE ASSY., Slow speed adjustment |
| 14 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 18 |
0330192 |
LINK, Cam follower |
| 23 |
0203949 |
E RING LINK This part replaces 0202755. |
| 26 |
0432470 |
FLOAT CHAMBER ASSY. |
| 30 |
0326224 |
SHAFT, Choke & fuel shut off |
| 31 |
0318194 |
BUSHING |
| 33 |
0326225 |
LEVER, Choke knob |
| 34 |
0324696 |
LINK, Lever to valve |
| 35 |
0326229 |
LINK, Choke lever |
| 37 |
0336186 |
KNOB, Choke This part replaces 0334441. |
| 38 |
0328742 |
NUT This part replaces 0306338. |
| 39 |
0323452 |
GASKET |
| 0432295 |
0432295 |

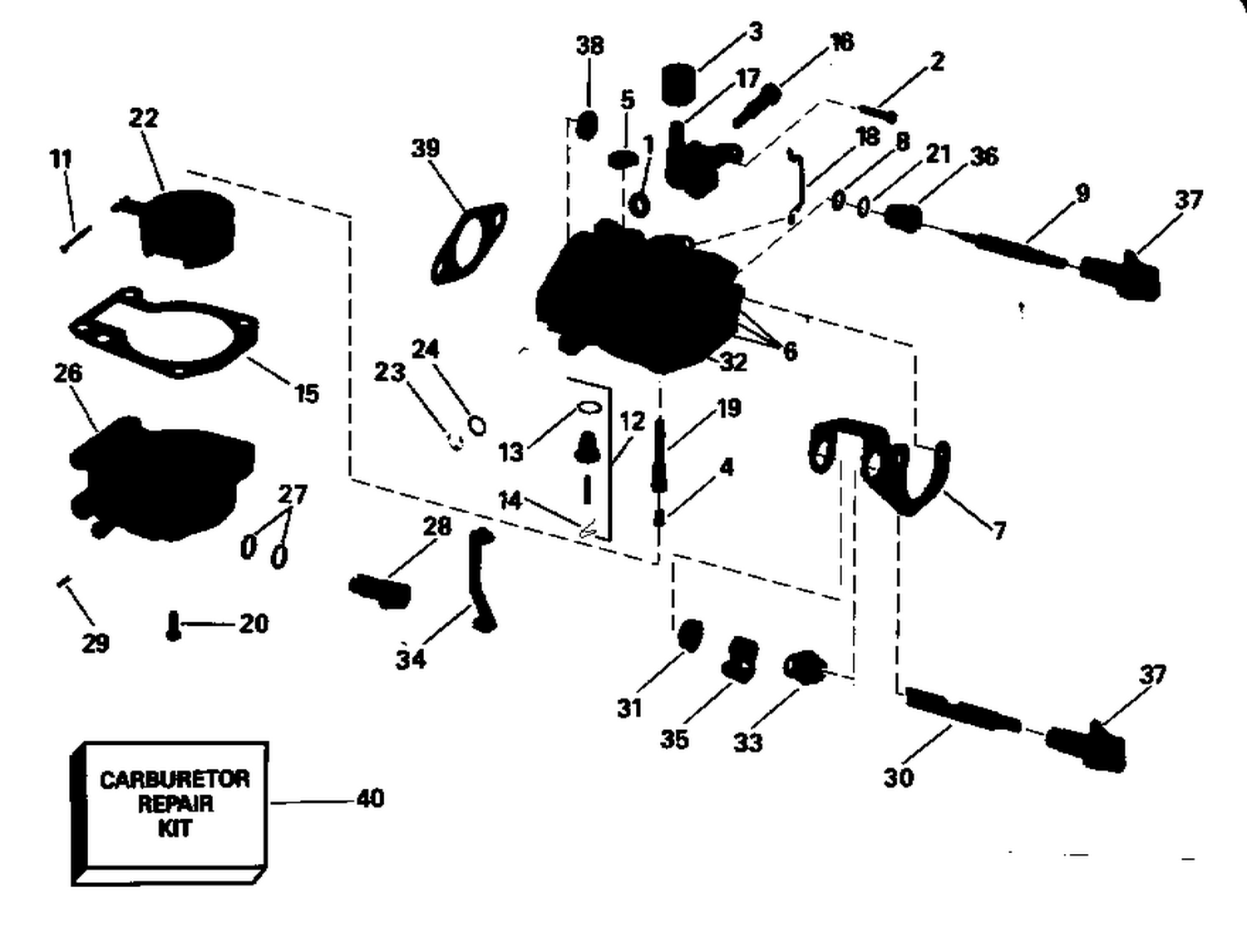

CARBURETOR ASSY. |
