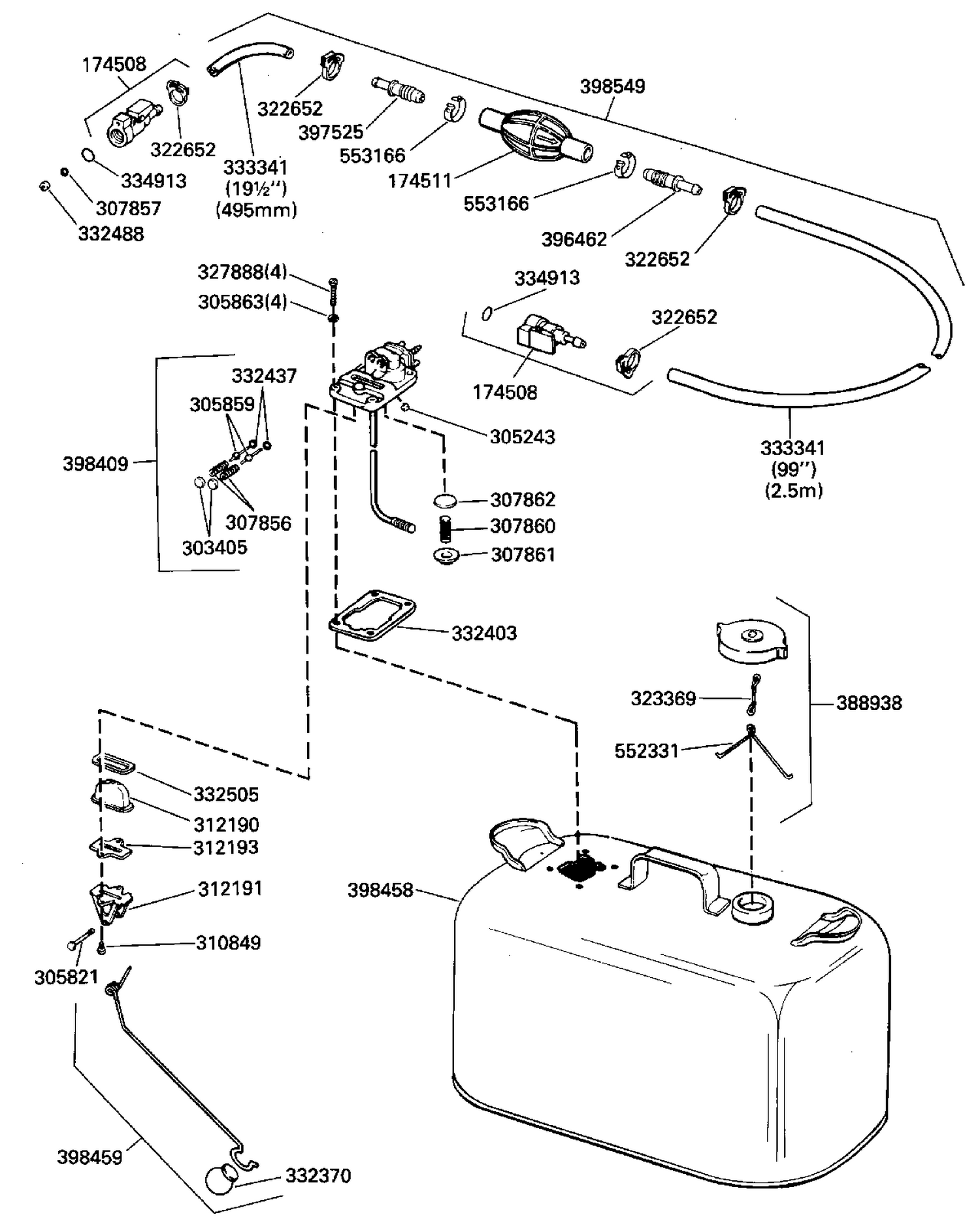

FUEL TANK
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 0310849 | 0310849 | HOUSING ASSY., Valve |
| 0312190 | 0312190 | LENS |
| 0312191 | 0312191 | SCREW, Indicator support |
| 0312193 | 0312193 | GASKET |
| 0327888 | 0327888 | SCREW |
| 0332370 | 0332370 | FLOAT |
| 0332403 | 0125530 | GASKET, Housing to tank This part replaces 0332403. |
| 0332488 | 0332488 | RING, Quad |
| 0332505 | 0332505 | SEAL |
| 0388938 | 0388938 | CAP ASSY., Fuel |
| 0398409 | 0398409 | HOUSING |
| 0398459 | 0398459 | FLOAT & INDICATOR |
| 0398549 | 5008609 | FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0398549. |
