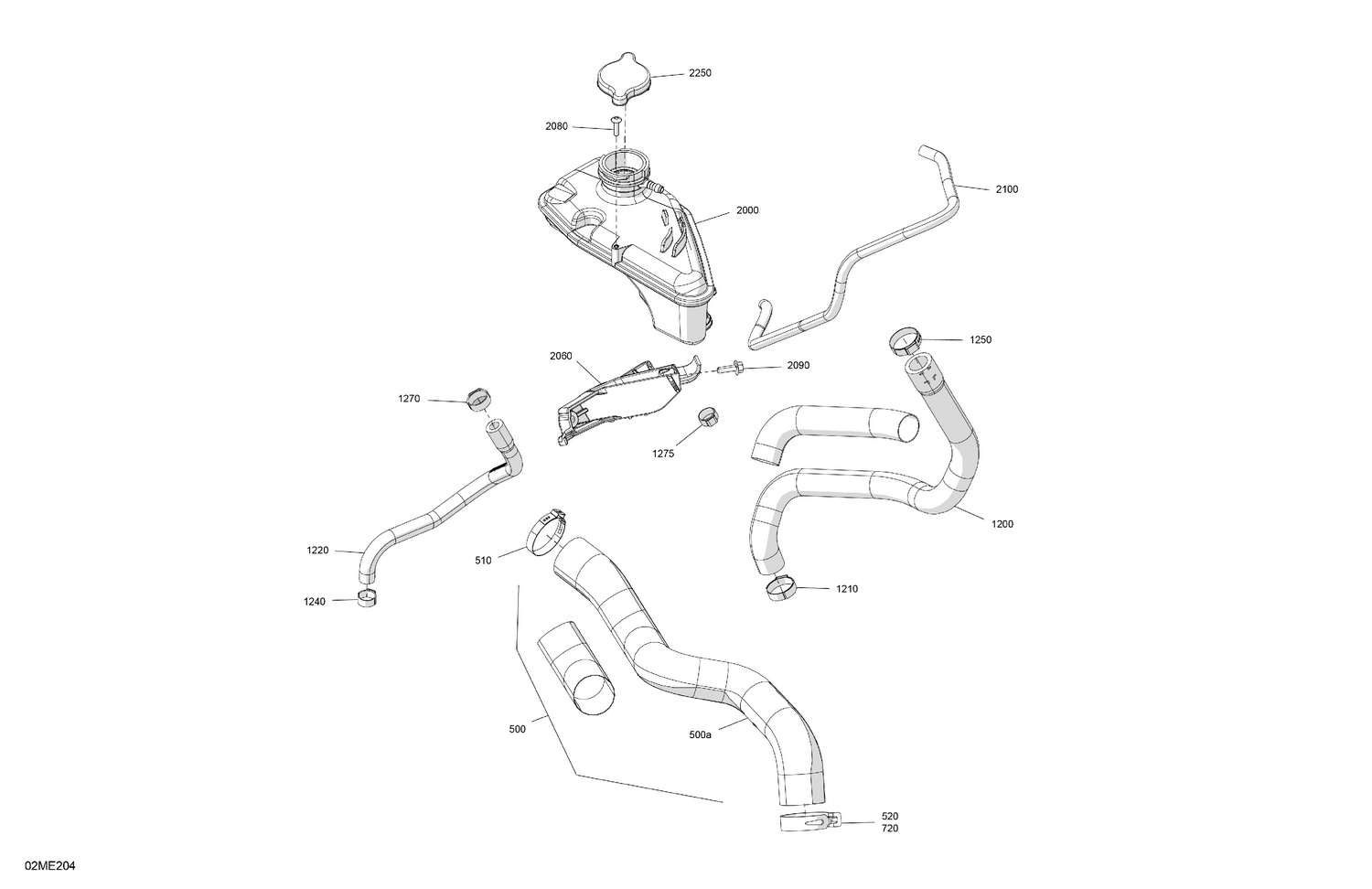

02- Engine - Cooling
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 500a | 509001413 | Thermostat Hose This part replaces 509001274. |
| 510 | 293650254 | Oetiker Gear Clamp |
| 520 | 293650264 | Norma Spring Clamp |
| 720 | 293650264 | Norma Spring Clamp |
| 1200 | 509001429 | Cooling Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509001342 | Purge Hose |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1270 | 293650030 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2000 | 509001314 | Coolant Tank |
| 2080 | 250000759 | Torx Truss Pt K40 X 16 |
| 2090 | 207651646 | Hex. Flange Screw M5 X 16 |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
