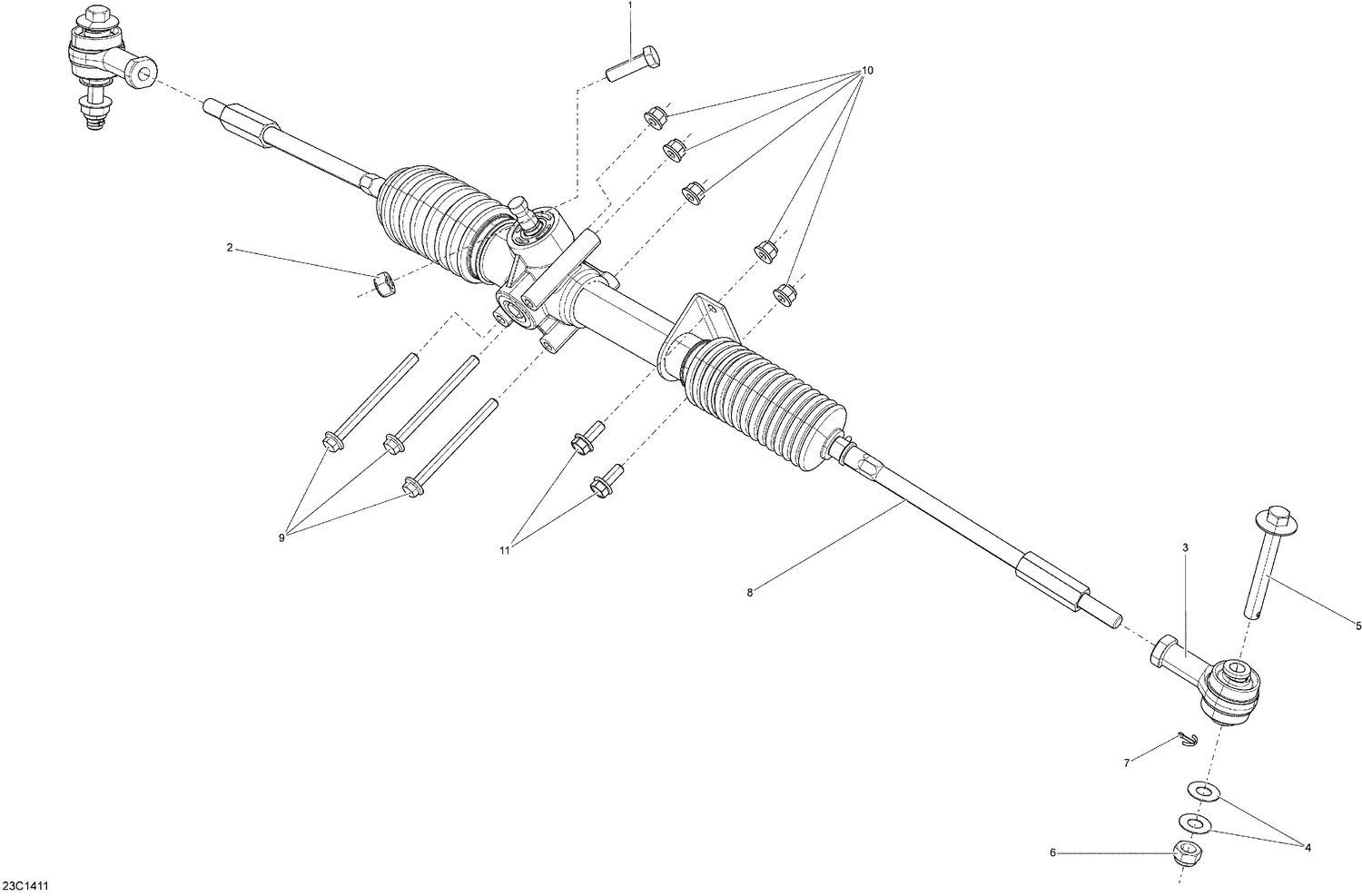

07- Steering _23C1411
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207103586 | Hex. Screw M10 X 35 |
| 2 | 232500416 | Elastic Stop Nut M10 |
| 3 | 709401134 | Ball Joint |
| 4 | 706200281 | Hardened Washer This part replaces 250200086. |
| 5 | 250000657 | Hexagonal Screw M12 X 88 |
| 6 | 232521416 | Elastic Stop Nut M12 |
| 7 | 211400017 | Cotter Pin |
| 8 | 709401335 | Rack And Pinion Steering |
| 9 | 207689534 | Hex. Flange Screw M8 X 95 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
