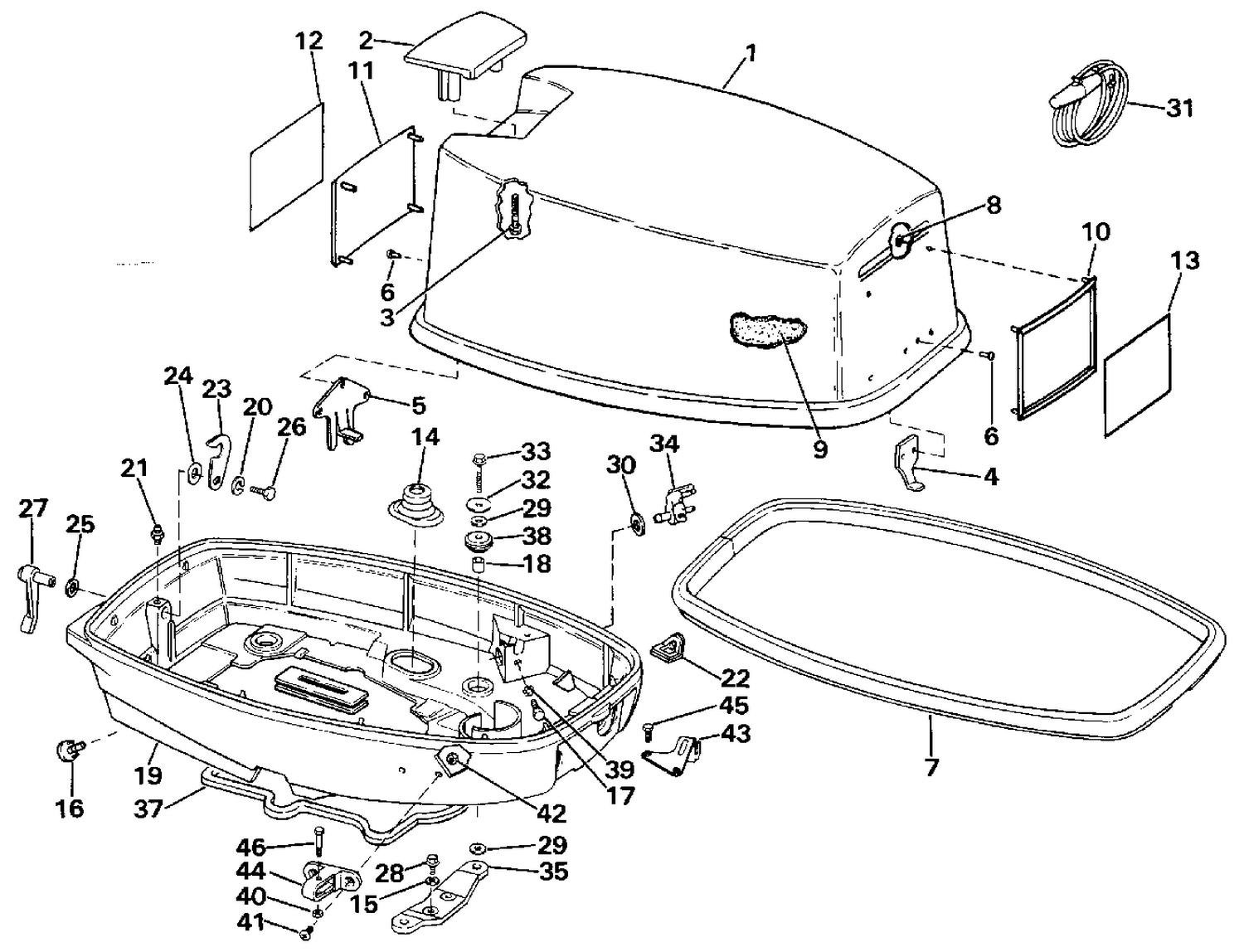

| Ref | Part Number | Description |
|---|
| 1 |
0397905 |
ENGINE COVER ASSY., Jo. |
| 4 |
0320400 |
HOOK, Engine cover |
| 9 |
0210157 |
SOUND BLANKET This part replaces 0329537. |
| 10 |
0331434 |
APPLIQUE |
| 11 |
0331482 |
APPLIQUE, Rear |
| 12 |
0333230 |
PLATE, Rear |
| 13 |
0333325 |
PLATE, Front |
| 14 |
0304019 |
CROMMET, CONTROL SHAFT |
| 16 |
0321885 |
NIPPLE |
| 17 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 18 |
0302406 |
SLEEVE |
| 19 |
0433392 |
ENGINE COVER, Lower This part replaces 0396982. |
| 26 |
0304027 |
VIS, arbre de commande de sens de marche |
| 28 |
0304027 |
VIS, arbre de commande de sens de marche |
| 29 |
0329241 |
RONDELLE |
| 31 |
0378347 |
CORDE DE LANCEUR |
| 32 |
0203622 |
WASHER |
| 33 |
0329240 |
SCREW |
| 35 |
0325868 |
BRACKET, Cove to exh. hsg., front |
| 36 |
0325327 |
GROMMET, Actuator cam |
| 37 |
0320158 |
SEAL, Housing to cover |
| 38 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 43 |
0331460 |
SUPPORT DE VERROUILLAGE |
| 44 |
0332637 |
BLOC, ancrage |
| 45 |
0122147 |
VIS, connecteur |
| 46 |
0332638 |
VIS, ancrage de câble de commande de sens de marche |
| 0398351 |
0398351 |
OWNER'S MANUAL, Jo. |
