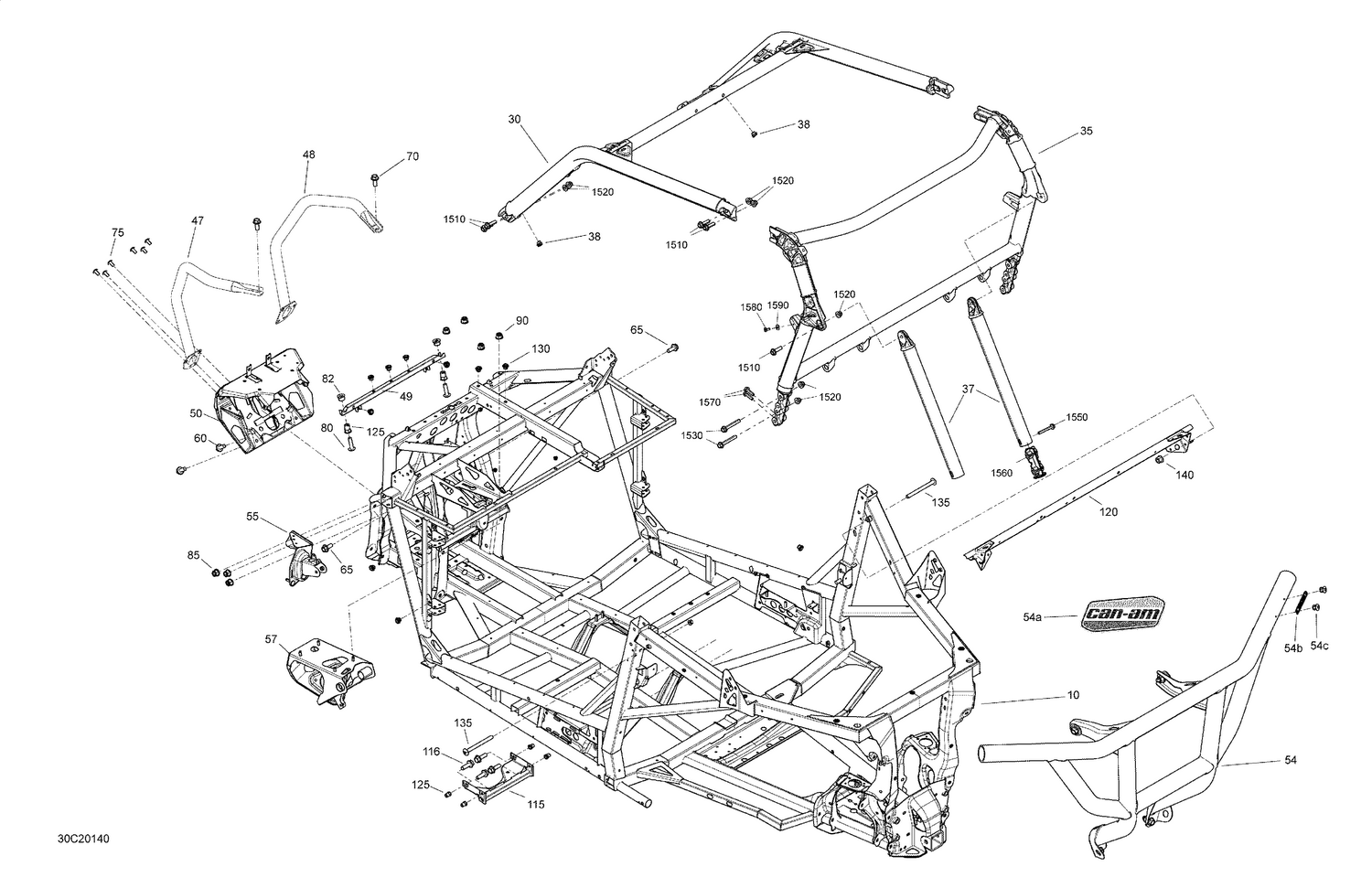

| Ref | Part Number | Description |
|---|
| 10 |
715008534 |
Frame Kit This part replaces 715007036. |
| 30 |
715009366 |
Silver, Front Channel Cage Ass'y This part replaces 715006748. |
| 35 |
715009380 |
Hyper Silver, Rear Cage Kit This part replaces 715006754. |
| 37 |
705211129 |
Hyper Silver, Rear Cage Extension This part replaces 705208392. |
| 38 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 47 |
705208399 |
Hyper Silver, LH Front Bumper |
| 48 |
705208402 |
Hyper Silver, RH Front Bumper |
| 49 |
705206313 |
Cross Member |
| 50 |
705209043 |
Deep Black, Front Bumper This part replaces 705205890. |
| 54a |
704904566 |
Decal "Can-Am" |
| 54b |
704902307 |
EMBLEM CAN-AM - Call your local BRP dealership |
| 54c |
293150189 |
Pop Rivet 1/8", Black |
| 55 |
705206217 |
Brake Support |
| 57 |
705206294 |
DPS Support |
| 60 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 65 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 70 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 75 |
250000746 |
Torx Truss Screw M8 X 16 |
| 80 |
250000745 |
Hex Torx Truss M8 X30 |
| 82 |
705207229 |
Bushing |
| 85 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 90 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 115 |
705211563 |
Bearing Support This part replaces 705206746. |
| 116 |
207582544 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 120 |
705209434 |
Central Tube This part replaces 705206568. |
| 125 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 135 |
250000806 |
Torx Truss M8 X 90 |
| 140 |
233081416 |
Hex. Flange Nut M8 |
| 1510 |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1520 |
233201466 |
Flange Elastic Nut M10 |
| 1530 |
207607056 |
Hex. Flange Screw M10 X 70 |
| 1550 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 1560 |
705210648 |
Sleeve This part replaces 705205634. |
| 1570 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 1580 |
250000717 |
Torx Head Screw M6 X 16 |
