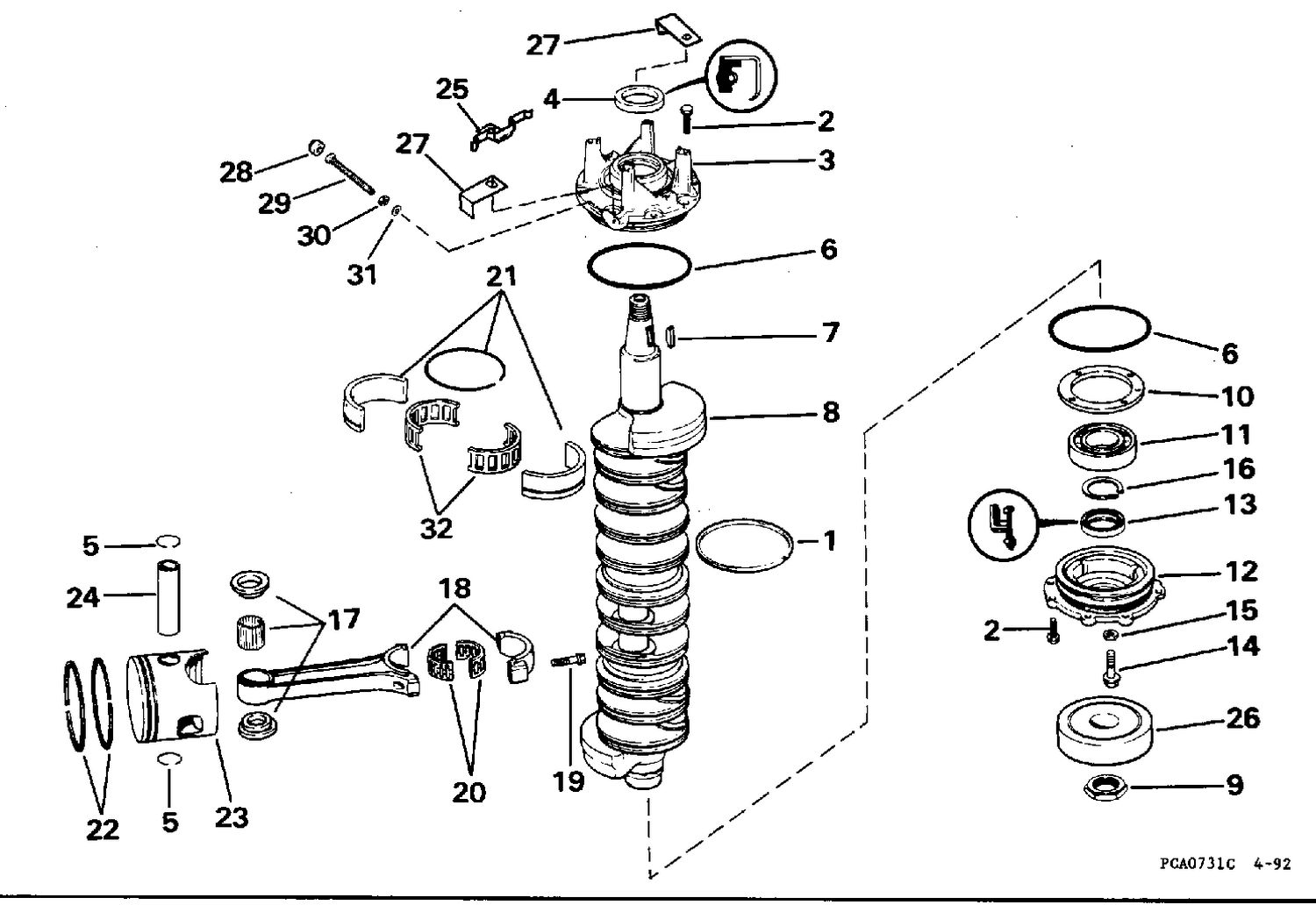

| Ref | Part Number | Description |
|---|
| 1 |
0326749 |
SEAL RING |
| 3 |
5000574 |
CRANKCASE HEAD & BRG. ASSY. This part replaces 0396668. |
| 8 |
0397161 |
CRANKSHAFT ASSY |
| 9 |
0332145 |
NUT, Damper to crankshaft |
| 12 |
5007695 |
CRANKCASE HEAD Assembly, Lower This part replaces 0434792. |
| 16 |
0326047 |
Retaining Ring |
| 17 |
0434844 |
BEARING, Wrist pin |
| 18 |
5005208 |
ROD ASSY., Connecting This part replaces 0435355. |
| 20 |
0396041 |
BEARING, Connecting rod |
| 21 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 22 |
0431844 |
RING SET, 0.0030 in. o.s. |
| 22 |
0431870 |
RING SET, Standard |
| 23 |
5006675 |
Piston&Ring Kt This part replaces 0432969. |
| 23 |
5006676 |
Piston&Ring Kt This part replaces 0432970. |
| 23 |
5006677 |
Pstn&Rng Kt.030 Os This part replaces 0433003. |
| 23 |
5006678 |
Pstn&Rng Kt.030 Os This part replaces 0433004. |
| 26 |
0394583 |
TORSIONAL DAMPER ASSY. |
| 28 |
0314416 |
BUMBER, Advance screw |
