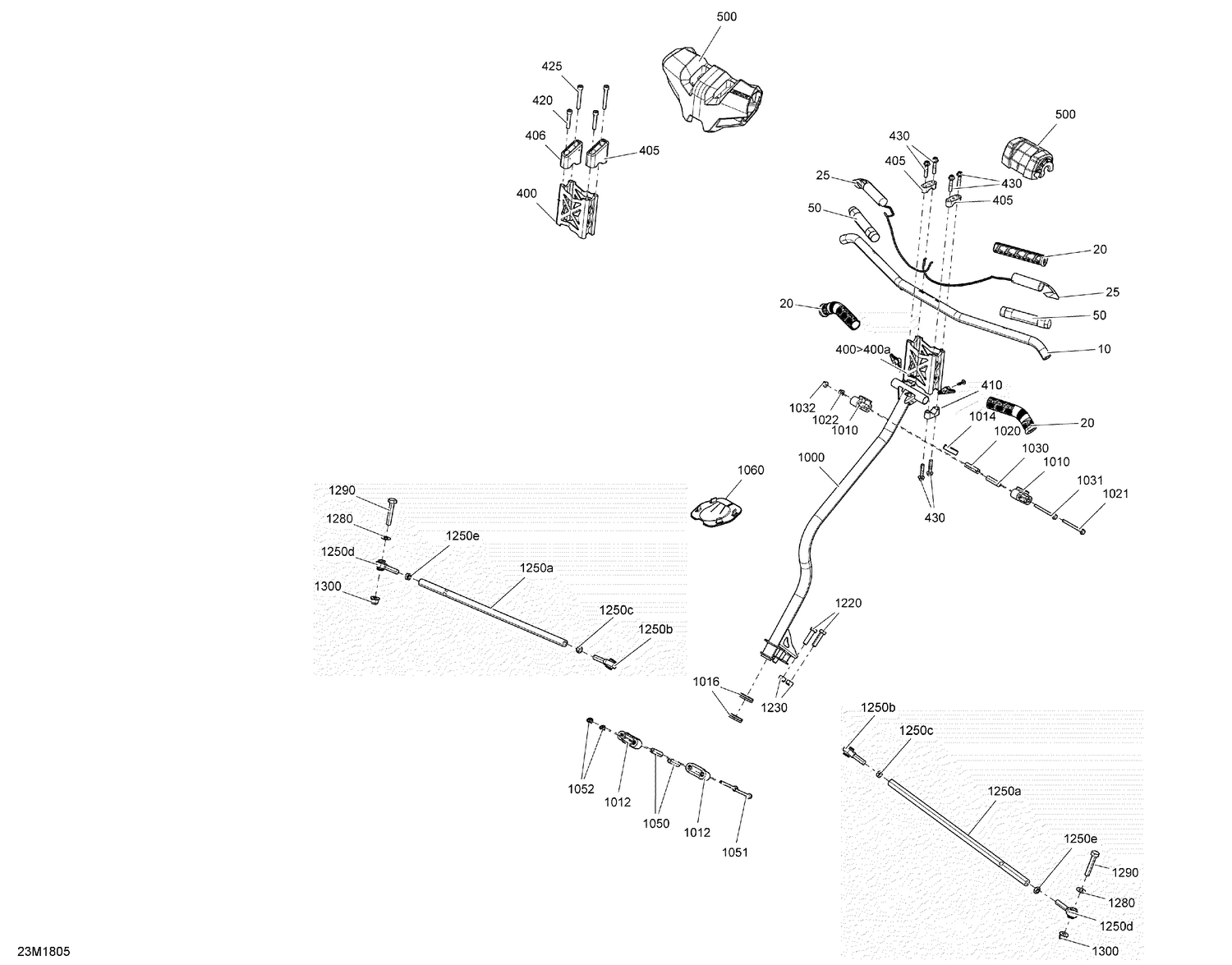

| Ref | Part Number | Description |
|---|
| 10 |
506152711 |
Black Handle Bar |
| 20 |
506152501 |
Grip |
| 25 |
506152800 |
LH HEATING ELEMENT 20 WATT - Call your local BRP dealership |
| 25 |
506152801 |
RH HEATING ELEMENT 20 WATT - Call your local BRP dealership |
| 50 |
506153178 |
Insulant This part replaces 506152423. |
| 400 |
506152759 |
HANDLEBAR EXTENSION 115 - Call your local BRP dealership |
| 405 |
506152729 |
LH HANDLEBAR SUPPORT - Call your local BRP dealership |
| 406 |
506152730 |
RH HANDLEBAR SUPPORT - Call your local BRP dealership |
| 410 |
506152751 |
Steering Support |
| 420 |
205084560 |
Socket Head Screw M8 X 45 |
| 425 |
205086060 |
Socket Head Screw M8 X 60 |
| 430 |
250000852 |
Hex. Flange Screw M8 X 1.25 x 40 |
| 500 |
506152721 |
STEERING PAD - Call your local BRP dealership |
| 1000 |
506152964 |
Steering Column |
| 1010 |
506152508 |
Upper Half-Housing |
| 1012 |
506152217 |
Lower Half-Housing |
| 1014 |
506152509 |
Upper Anti-Vibration Gasket |
| 1016 |
506152518 |
Lower Vibration Ring |
| 1020 |
506152297 |
Housing Bushing |
| 1021 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1022 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1030 |
506152297 |
Housing Bushing |
| 1031 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1032 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1040 |
506152297 |
Housing Bushing |
| 1041 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1042 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1050 |
506152297 |
Housing Bushing |
| 1051 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 1052 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1060 |
506152163 |
Plate |
| 1220 |
207004034 |
Hex. Screw M10 X 1.5 X 40 |
| 1230 |
233601466 |
Elastic Locking Nut M10 |
| 1250a |
506152496 |
Tie-Rod Ass'y |
| 1250b |
506152081 |
LH Thread Ball Joint |
| 1250c |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 1250d |
506152684 |
RH Threaded Ball Joint |
| 1250e |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 1280 |
506152582 |
Washer |
| 1290 |
207005554 |
Hex Screw M10 X 1.5 X 55 |
| 1300 |
233201464 |
Hex. Flange Elastic M10 x 1.5 |
