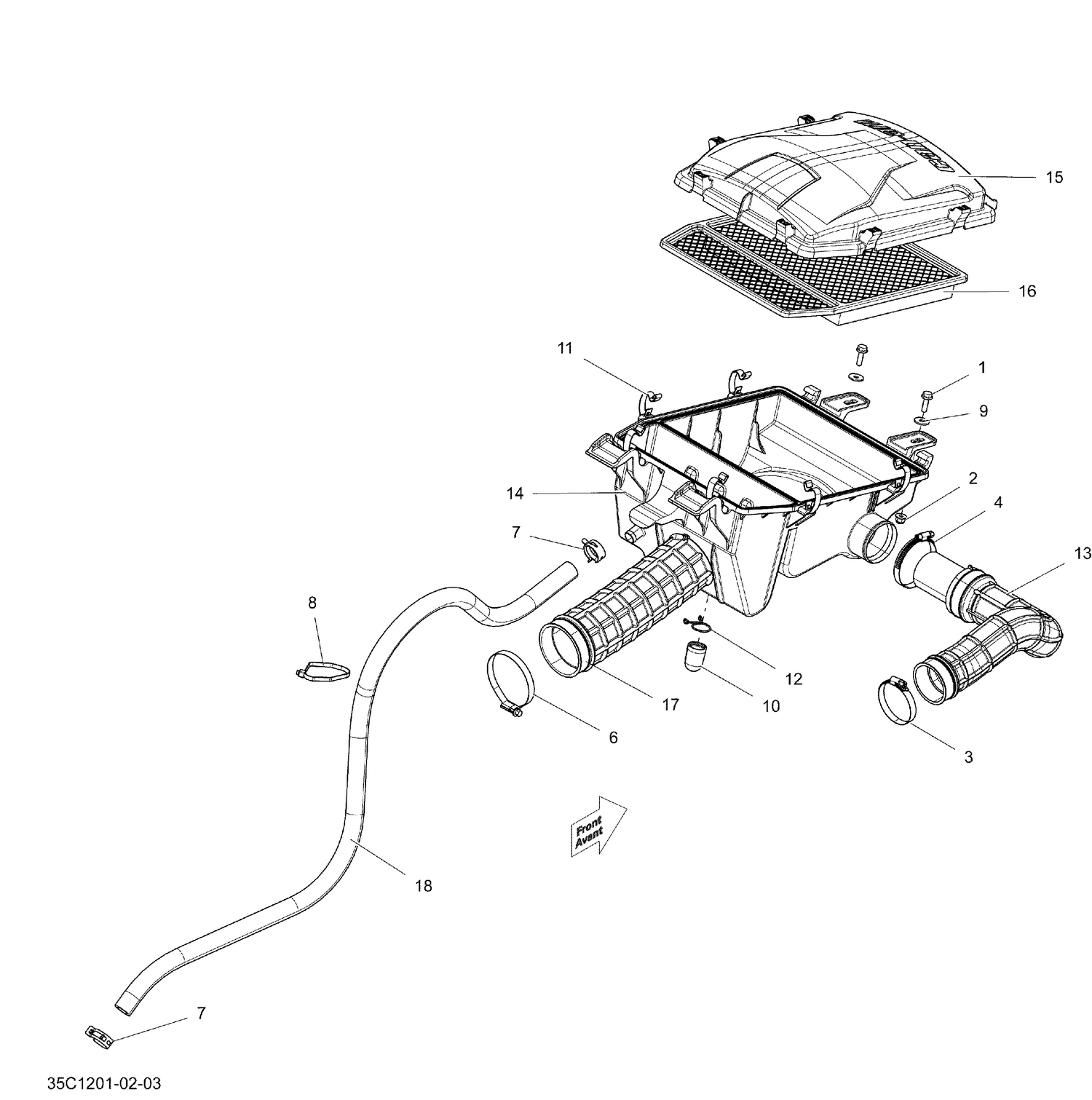

02- Air Intake
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3 | 293650077 | Norma Clamp This part replaces 293650078. |
| 4 | 293650079 | Norma Clamp |
| 6 | 293650091 | Norma Clamp |
| 7 | 293650213 | Norma Spring Clamp |
| 8 | 293750008 | Tie Wrap 368 mm |
| 9 | 250200082 | Flat Washer This part replaces 391302000. |
| 10 | 707800080 | Drain Tube |
| 11 | 707800249 | Cover Bracket |
| 12 | 707800278 | Retainer Clip |
| 13 | 707800322 | Intake Adaptor |
| 14 | 707800517 | Air Intake Silencer Base This part replaces 707800325. |
| 15 | 707800326 | Air Intake Silencer Cover |
| 16 | 707800327 | Air Filter |
| 17 | 707800329 | Intake Adaptor |
