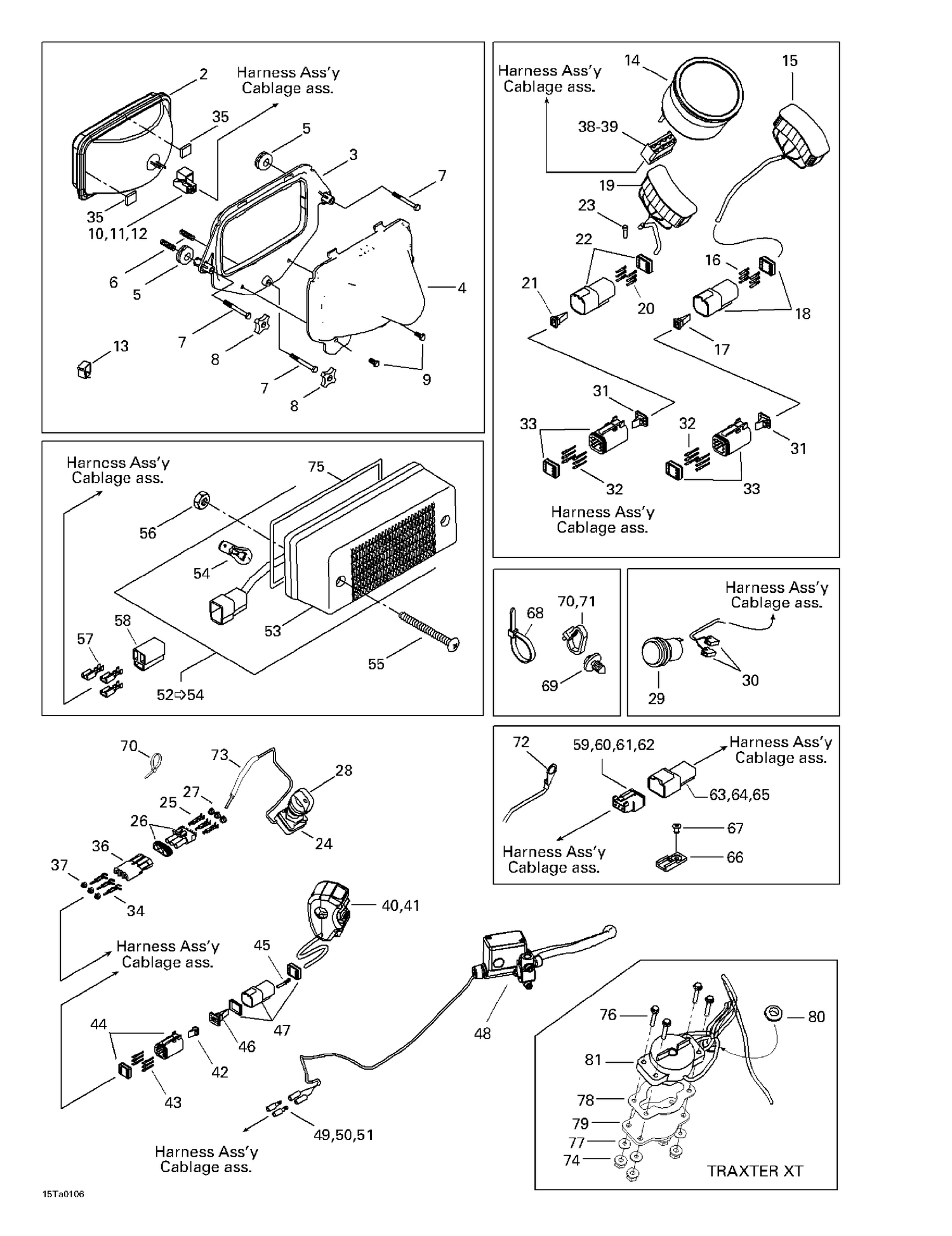

10- Main Harness And Electrical Accessories

10- Main Harness And Electrical Accessories

Parts (69)

RefPart NumberDescription
2 710000001 HEADLAMP - Call your local BRP dealership
3 705000182 Headlamp Support
4 705000023 Protector
5 709000582 Grommet This part replaces 293720053.
6 517168600 Spring
7 250000008 HEX. SCREW K40 X 40 - Call your local BRP dealership
8 572106600 Handle
9 241641040 PHILLIPS SCREW K40 X 10 - Call your local BRP dealership
10 710000027 Female Terminal
11 710000028 Female Lock, 2 Circuits
12 710000026 FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
13 414227300 Clip
15 710000007 RH Warning Lamp
16 409014800 MALE TERMINAL - Call your local BRP dealership
17 409014600 Male Lock, 6 Circuits
18 409015200 Male Terminal Housing, 6 Circuits
20 409014800 MALE TERMINAL - Call your local BRP dealership
21 409014600 Male Lock, 6 Circuits
22 409015200 Male Terminal Housing, 6 Circuits
23 515175303 PLUG - Call your local BRP dealership
25 278000223 Female Terminal
26 278000273 Male Housing, 3 Circuits
27 278000218 Wire Seal
28 710000101 BLANK KEY (B TYPE) - Call your local BRP dealership
28 710000137 BLANK KEY (A TYPE) - Call your local BRP dealership
29 861507200 Outlet Power Kit, 12 Volts This part replaces 710000024.
30 710000038 Female Terminal
31 409014900 FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership
32 409015100 FEMALE TERMINAL - Call your local BRP dealership
33 409015500 Female Terminal Housing (6 Circuits)
34 409004300 Male Terminal
35 293830088 Rubber Pad
36 278000281 Female Terminal Housing, 3 Circuits
37 278000218 Wire Seal
38 710000036 Female Terminal
39 710000035 Female Housing (8 Circuits)
41 710000173 BACK COVER - Call your local BRP dealership
42 409014900 FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership
43 409015100 FEMALE TERMINAL - Call your local BRP dealership
44 409015400 FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
45 409014800 MALE TERMINAL - Call your local BRP dealership
46 409014600 Male Lock, 6 Circuits
47 409015200 Male Terminal Housing, 6 Circuits
48 705600120 FRONT MASTER CYLINDER - Call your local BRP dealership
49 278001007 Insulated Sheath
50 278000770 Insulated Sheath
51 710000082 Female Terminal
53 710000055 TAIL LIGHT LENS, RED - Call your local BRP dealership
54 520000758 Bulb This part replaces 410504100.
55 208656091 PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
56 233251434 Flange Elastic Nut M5 This part replaces 233251414.
57 561503100 FEMALE TERMINAL - Call your local BRP dealership
58 409204300 Female Housing
59 515175303 PLUG - Call your local BRP dealership
60 515175248 Female Lock, 3 Circuits
61 409015100 FEMALE TERMINAL - Call your local BRP dealership
62 515175249 FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership
63 710000043 MALE LOCK, 3 CIRCUITS - Call your local BRP dealership
64 409014800 MALE TERMINAL - Call your local BRP dealership
65 710000044 MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership
66 270000141 Clip
67 390402400 Pop Rivet 3/16"
68 293750008 Tie Wrap 368 mm
69 293730040 Mount Dart This part replaces 293730018.
70 293750002 Tie Wrap 142 mm
71 414115200 Tie-Rap 180 mm
72 278001392 Open Barrel Terminal
73 710000171 Protector Tube
75 710000129 GASKET - Call your local BRP dealership
