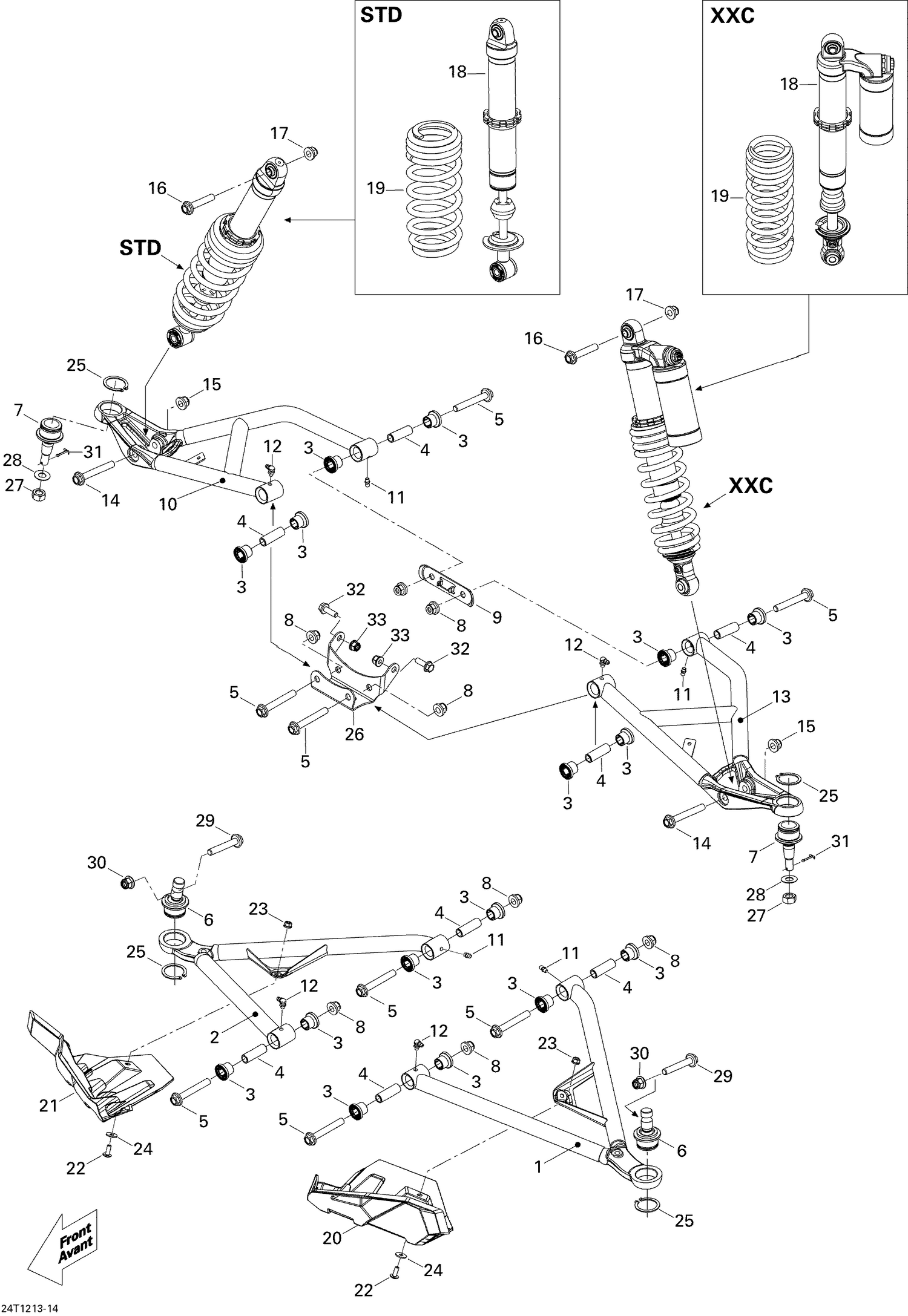

| Ref | Part Number | Description |
|---|
| 1 |
706204639 |
LH Lower Suspension Arm This part replaces 706200955. |
| 2 |
706202870 |
Black, RH Lower Arm This part replaces 706200984. |
| 5 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 6 |
706202045 |
Ball Joint This part replaces 706201393. |
| 7 |
706202044 |
Ball Joint This part replaces 706201394. |
| 8 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 9 |
706200998 |
Front Suspension Cross Plate |
| 10 |
706201797 |
Black RH Upper Arm This part replaces 706201527. |
| 11 |
408200700 |
Grease Fitting |
| 12 |
293550056 |
Grease Fitting 90° |
| 13 |
706201796 |
Black LH Upper Arm This part replaces 706201526. |
| 14 |
250001038 |
Hex. Flange Screw M10 X 75 This part replaces 207607587. |
| 15 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 16 |
207605546 |
Hex. Flange Screw M10 X 55 |
| 17 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 20 |
706202808 |
LH Joint Protector This part replaces 706201303. |
| 21 |
706202809 |
RH Joint Protector This part replaces 706201304. |
| 22 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 23 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 24 |
234062670 |
Stainless Steel Flat Washer |
| 25 |
293370035 |
Circlip |
| 26 |
705203247 |
Upper Front Holder This part replaces 705202285. |
| 27 |
250100099 |
Nut M12 |
| 28 |
706200281 |
Hardened Washer |
| 29 |
207606044 |
Hex. Flange Screw M10 X 60 |
| 30 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 31 |
211400017 |
Cotter Pin |
| 32 |
207682544 |
Hex. Flange Screw M8 X 25 |
