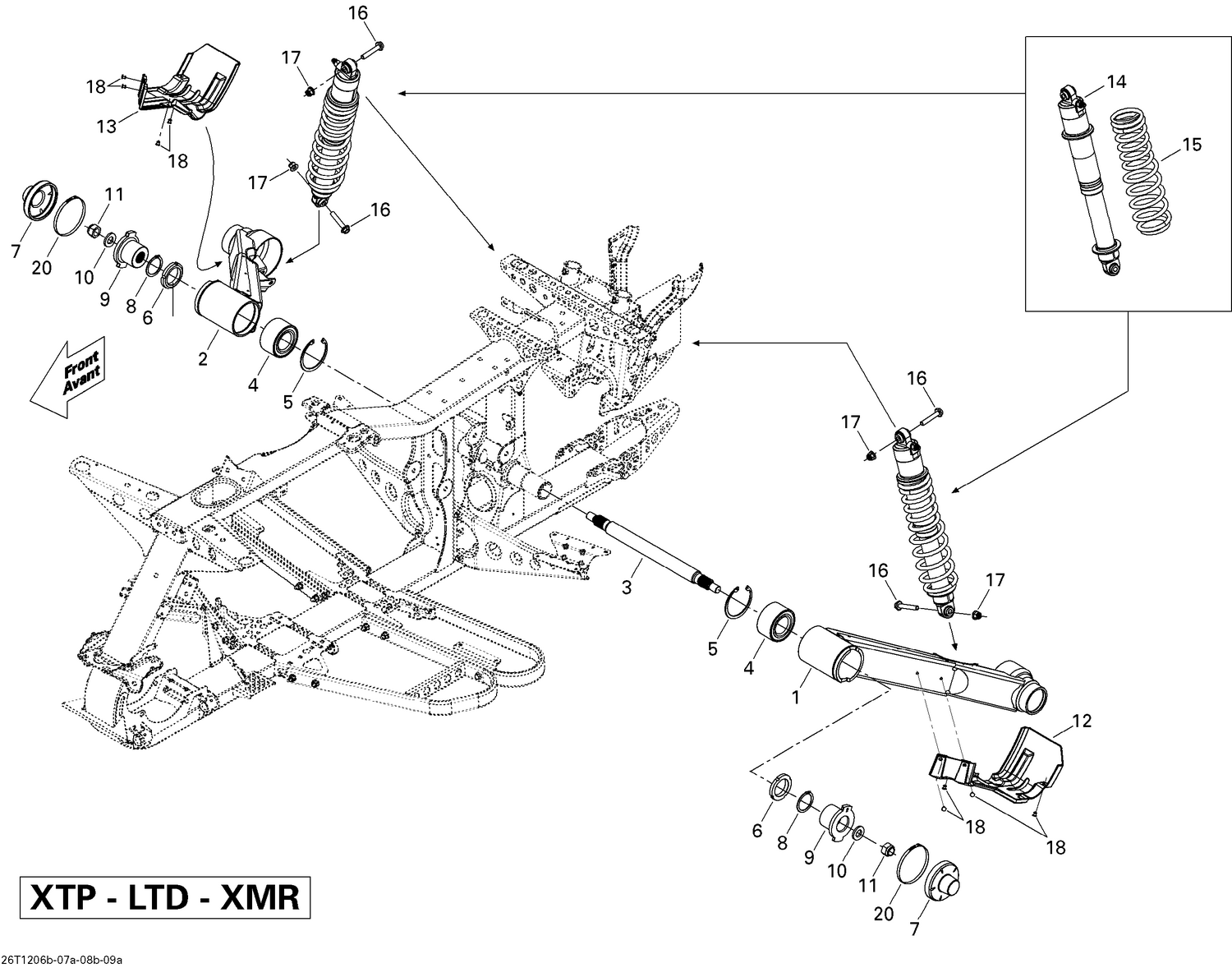

08- Rear Suspension
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706001188 | LH SWING ARM - Call your local BRP dealership |
| 2 | 706003427 | Rh Swing Arm This part replaces 706001190. |
| 3 | 706001078 | Sway Bar |
| 4 | 293350037 | Ball Bearing |
| 5 | 293370041 | Circlip |
| 6 | 706000221 | Nut |
| 7 | 706000749 | Cover |
| 8 | 293370027 | Circlip 45 mm |
| 9 | 706000554 | Lever |
| 10 | 250200045 | Washer |
| 11 | 232591414 | Elastic Stop Nut M18 |
| 12 | 706000333 | LH PROTECTOR - Call your local BRP dealership |
| 13 | 706000334 | RH PROTECTOR - Call your local BRP dealership |
| 14 | 706001000 | REAR SHOCK - Call your local BRP dealership |
| 15 | 706001056 | SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership |
| 16 | 207605544 | Hex. Flange Screw M10 X 55 |
| 17 | 233201414 | Hex. Flange Elastic Nut M10 |
| 18 | 293150104 | Pop Rivet 3/16" |
