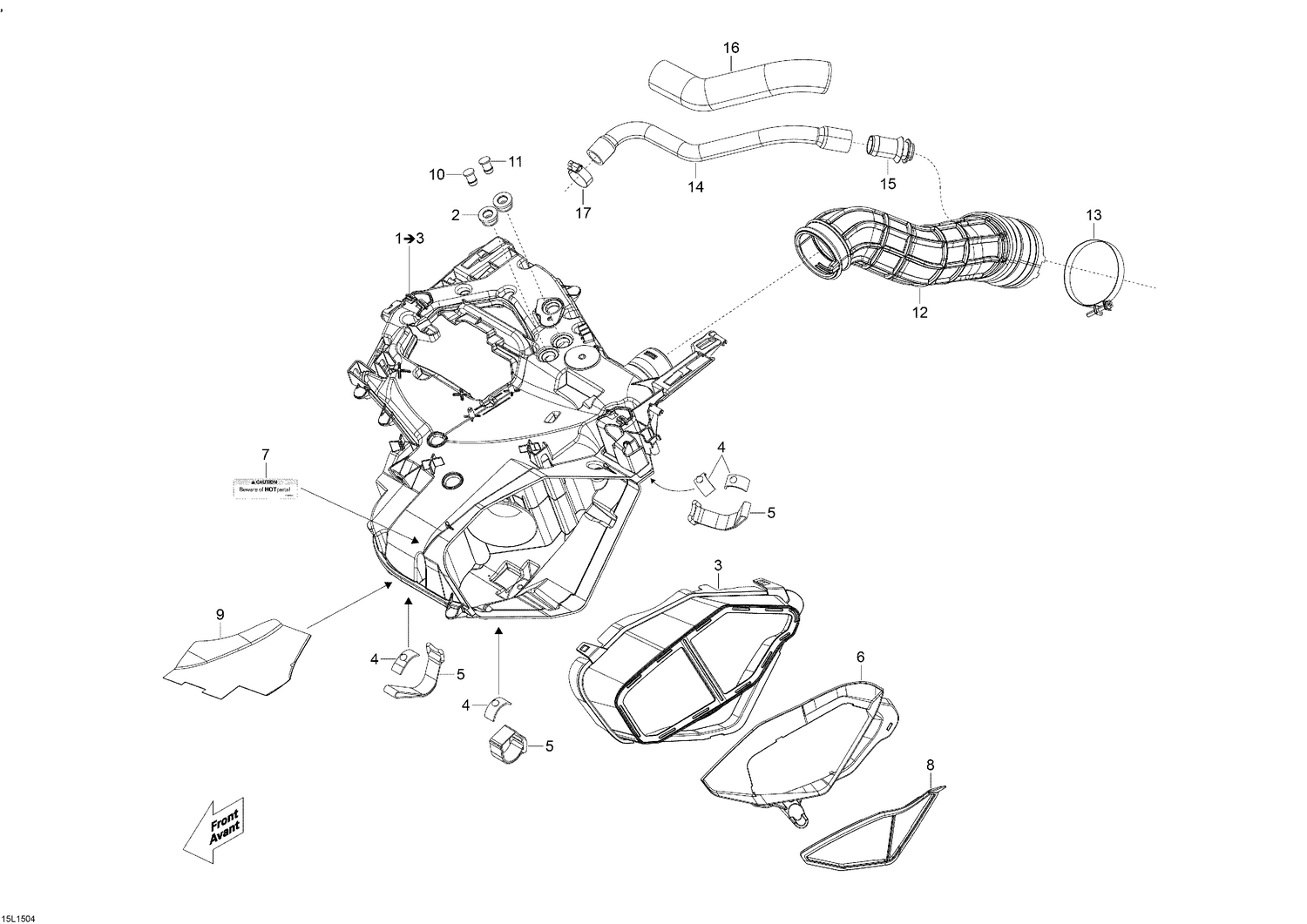

02- Air Intake System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000574 | Grommet |
| 3 | 508000595 | Air Filter |
| 4 | 508000537 | Rubber Stopper |
| 5 | 508000820 | Velcro-Strip This part replaces 508000532. |
| 6 | 508001021 | Adapter This part replaces 508000687. |
| 7 | 516004651 | Hot Parts Warning Decal |
| 8 | 508000609 | Air Filter |
| 9 | 508000622 | Heat Shield |
| 10 | 572092900 | Cap |
| 11 | 572092900 | Cap |
| 12 | 508000773 | Intake Hose |
| 13 | 293650229 | Clamp |
| 14 | 508000746 | Vent Hose |
| 15 | 273000234 | Breather |
| 16 | 508000648 | Insul. Tube |
