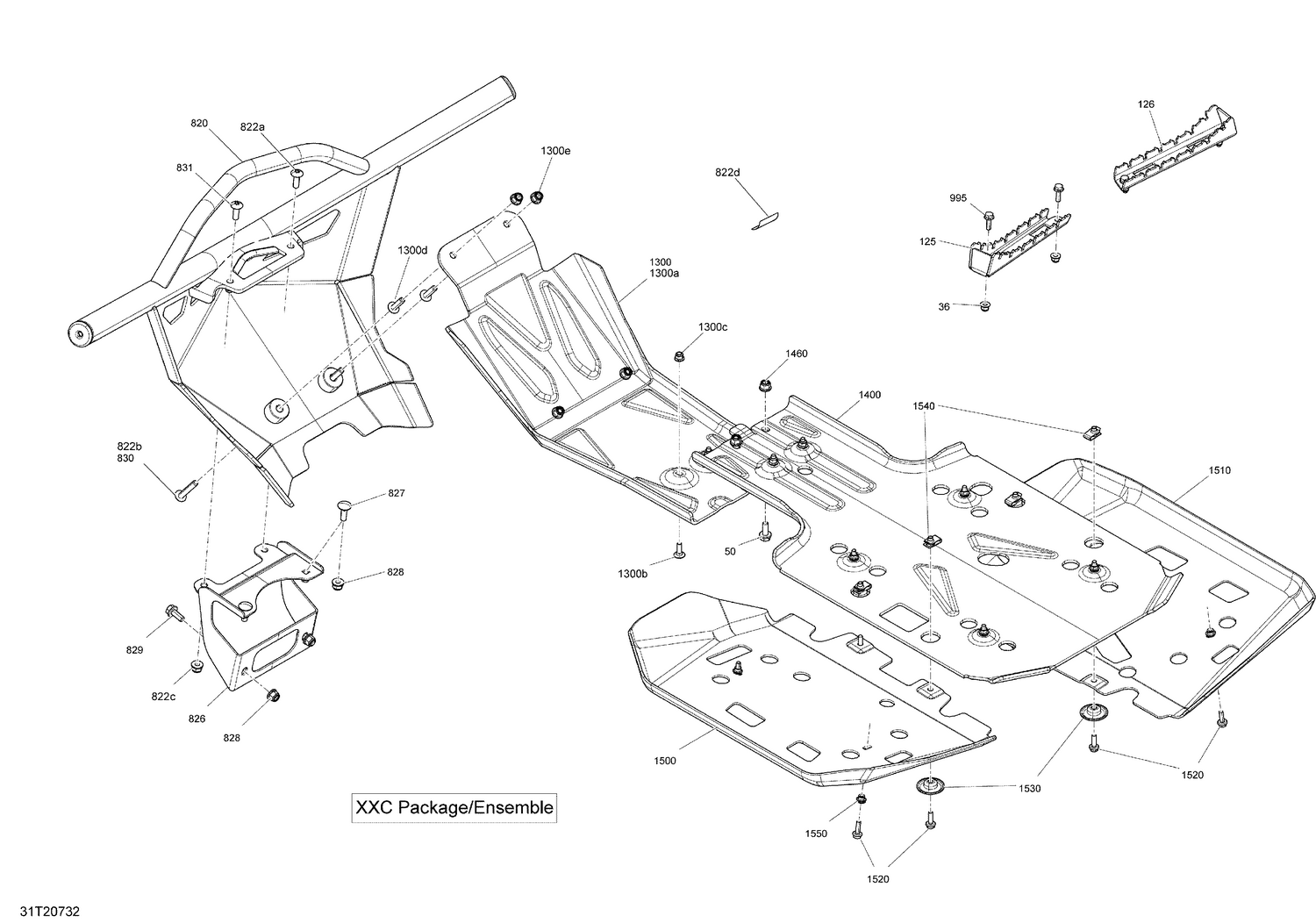

09- Body - Front Bumper And Skid Plate - XXC
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 36 | 233261434 | Flange Elastic Nut M6 |
| 50 | 207682044 | Hex. Flange Screw M8 X 20 |
| 125 | 705004352 | LH Footrest |
| 126 | 705005395 | RH Footrest |
| 826 | 705012722 | Bumper Support |
| 827 | 207782544 | Carriage Bolt, M8 X 25 |
| 828 | 233281434 | Hex. Flange Elastic Nut M8 |
| 829 | 207682534 | Hex. Flange Screw M8 X 25 |
| 830 | 250000761 | Torx Truss Screw M8 X 50 |
| 831 | 250000874 | Torx Truss M8 X 25 |
| 995 | 207662034 | Hex. Flange Screw M6 X 20 |
| 1300a | 704904566 | Decal "Can-Am" |
| 1300b | 207762044 | Carriage Bolt M6 X 20 |
| 1300c | 233261434 | Flange Elastic Nut M6 |
| 1300d | 250000745 | Hex Torx Truss M8 X30 |
| 1300e | 233281434 | Hex. Flange Elastic Nut M8 |
| 1400 | 705204031 | Central Skid Plate |
| 1460 | 233281434 | Hex. Flange Elastic Nut M8 |
| 1500 | 705010659 | LH Skid Plate |
| 1510 | 705010660 | RH Skid Plate |
| 1520 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1530 | 705007171 | Cup |
| 1540 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
