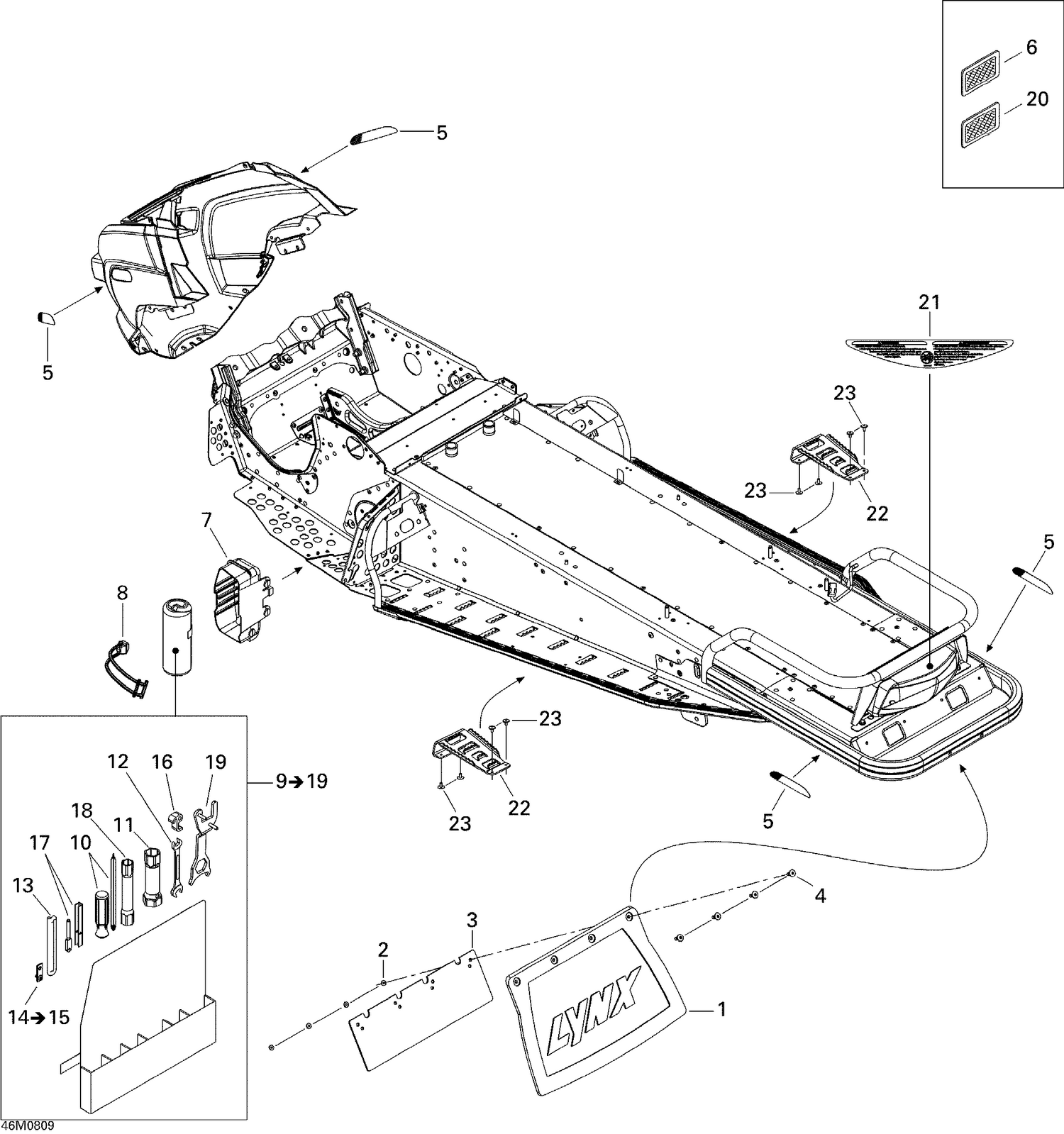

09- Utilities
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000600 | Snow Guard |
| 2 | 517225900 | Flat Washer |
| 3 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 4 | 293150100 | Pop Rivet 3/16 |
| 5 | 520000525 | REFLECTOR - Call your local BRP dealership |
| 6 | 520000271 | Reflector, Amber |
| 7 | 520000322 | TRUNK - Call your local BRP dealership |
| 8 | 520000528 | Latch |
| 10 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 11 | 529014800 | Socket Wrench 21/26 mm |
| 12 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 13 | 412500200 | Starter Rope 2200 mm, Meter |
| 15 | 390402200 | Pop Rivet 3/16 |
| 16 | 529000060 | Starter Grip This part replaces 529019400. |
| 17 | 529035501 | Spacing Tool |
| 18 | 295000175 | Socket Wrench 16/18 mm |
| 19 | 520000721 | WRENCH - Call your local BRP dealership |
| 20 | 415037900 | Reflector, White |
| 21 | 520000611 | SECURITY LABEL - Call your local BRP dealership |
| 22 | 520000492 | Footrest |
