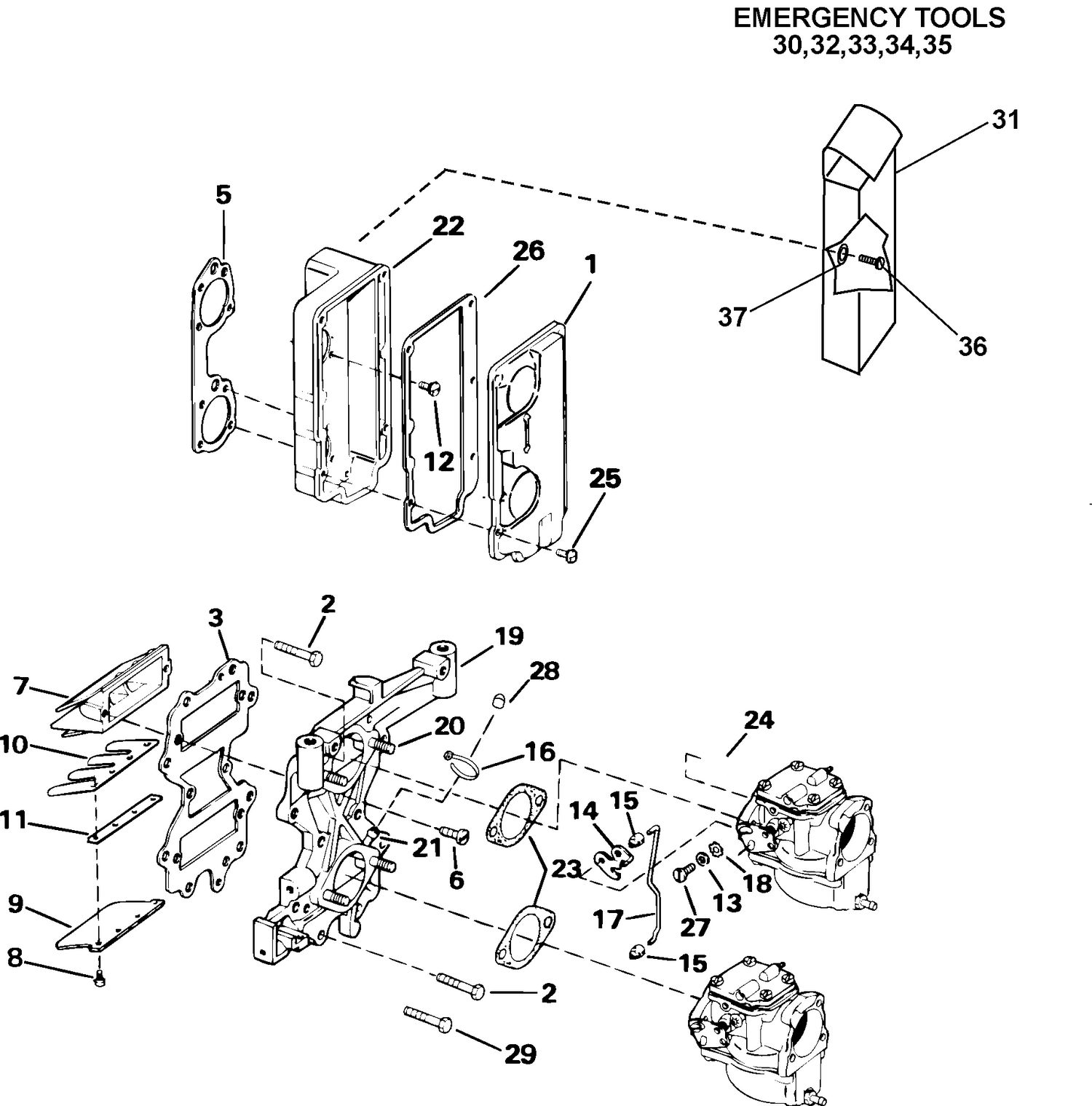

INTAKE MANIFOLD & AIR SILENCER
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0329396 | COVER |
| 2 | 0306409 | VIS, collecteur vers carter-moteur |
| 3 | 0335633 | GASKET |
| 5 | 0330910 | GASKET |
| 6 | 0306474 | SCREW |
| 7 | 0389823 | CLAPET |
| 14 | 0329418 | LEVER, Synchronization adj. |
| 15 | 0318165 | DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 17 | 0329888 | LINK |
| 19 | 0431988 | MANIFOLD ASSY. |
| 22 | 0349725 | BASE, Air silencer |
| 23 | 0325092 | GASKET |
| 24 | 0316355 | BUT, Carburetor mounting |
| 26 | 0330698 | GASKET |
| 28 | 0350828 | CAP, Manifold fitting |
| 29 | 0306418 | VIS, ancrage |
| 36 | 0328774 | SCREW, Tool bag to air silencer |
