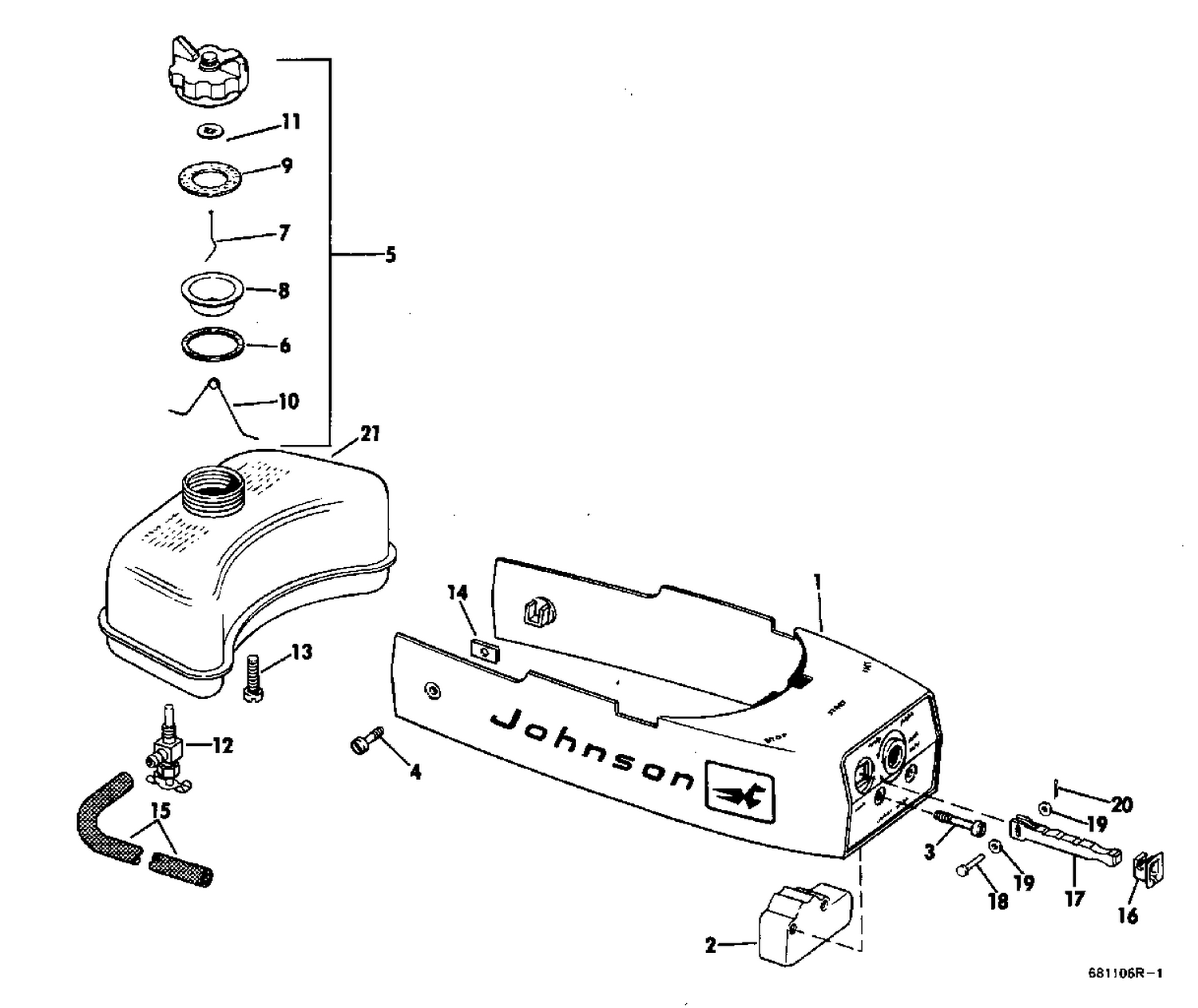

MOTOR COVER GROUP
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0382430 | MOTOR COVER & TRANSFER ASSEMBLY |
| 2 | 0313801 | SILENCER, Carburetor to motor cover |
| 3 | 0313803 | SCREW, Bracket to carburetor |
| 4 | 0313804 | SCREW,Motor cover mountings,rear |
| 5 | 0382706 | GAS CAP ASSEMBLY |
| 6 | 0121528 | GASKET |
| 7 | 0160261 | ESCUTCHEN PIN |
| 8 | 0314782 | CUP, Inner |
| 8 | 0315258 | HINGE PIN This part replaces 0314258. |
| 9 | 0314316 | GASKET |
| 12 | 0677052 | SHUT OFF VALVE |
| 13 | 0306434 | SCREW, Gas tank mounting |
| 14 | 0303211 | FASTENER,Screw motor cover |
| 16 | 0312890 | DETENT CHIKE KNOB |
| 17 | 0314147 | CHOKE KNOB |
| 19 | 0306544 | WASHER |
| 20 | 0301912 | COTER PIN |
| 21 | 0383644 | GAS TANK ASSEMBLY |
| 0382844 | 0382844 | DECAL SET |
