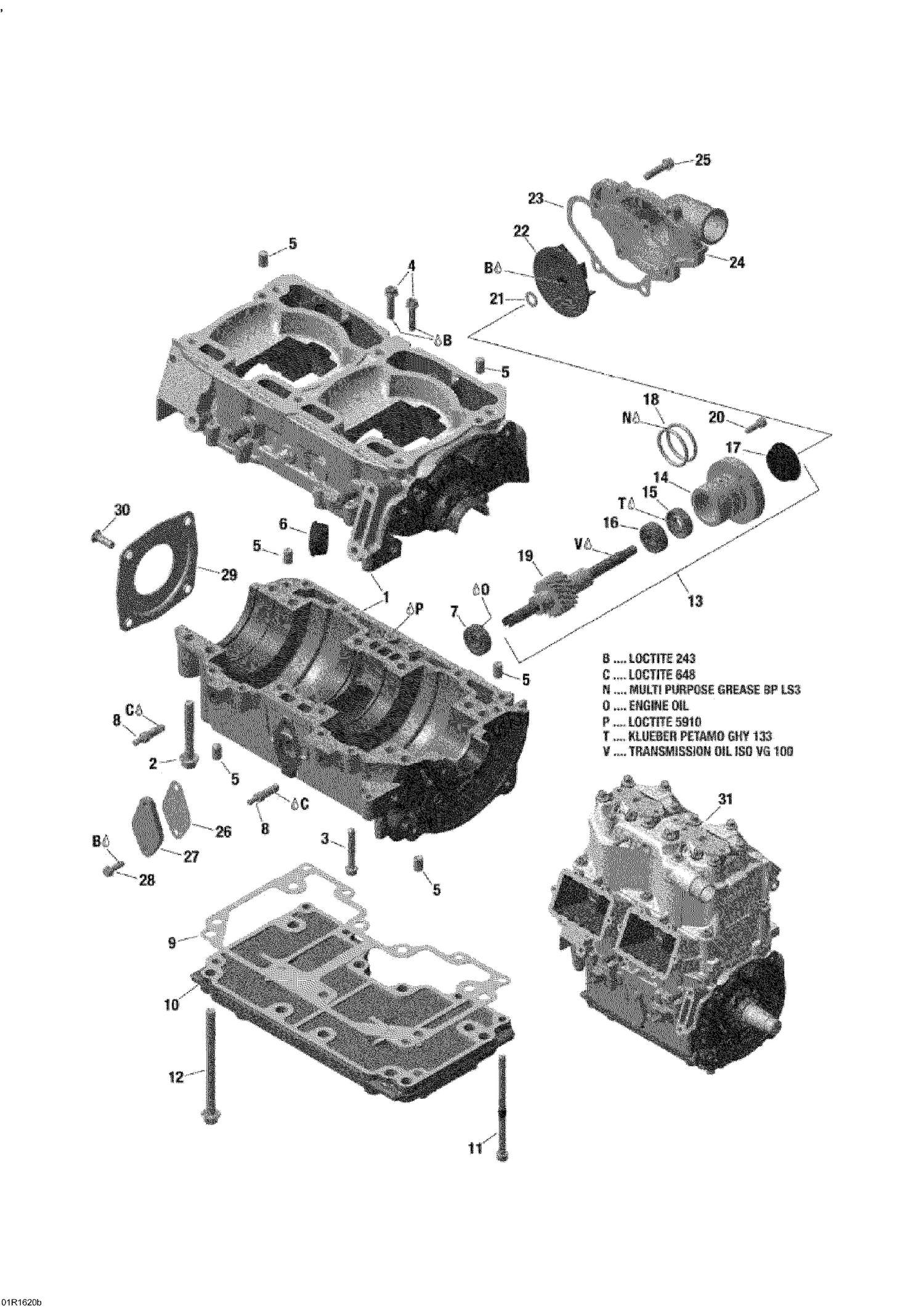

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| C |
Not |
Available As Spare Part - Loctite 609 |
| N |
Not |
Available As Spare Part - Multipurpose Grease BP LS3 |
| O |
Not |
Available As Spare Part - Engine Oil |
| P |
Not |
Available As Spare Part - Loctite 5910 |
| T |
Not |
Available As Spare Part - Grease |
| 5 |
420632010 |
Center Pin 8 X 12 |
| 6 |
420660890 |
Cable Grommet |
| 7 |
420232100 |
Ball Bearing |
| 8 |
420956071 |
Check Valve This part replaces 420956070. |
| 10 |
420812683 |
ENGINE SUPPORT - Call your local BRP dealership |
| 14 |
Not |
Available As Spare Part - Step Collar |
| 16 |
420232100 |
Ball Bearing |
| 17 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 19 |
Not |
Available As Spare Part - Water Pump Shaft |
| 21 |
420944033 |
Washer |
| 24 |
420822280 |
Water Pump Housing |
| 27 |
420810827 |
Cover Plate |
| 29 |
420812422 |
Oil Seal Cover This part replaces 420812420. |
| 31 |
300079755 |
Short Block Engine 797 E-TEC |
