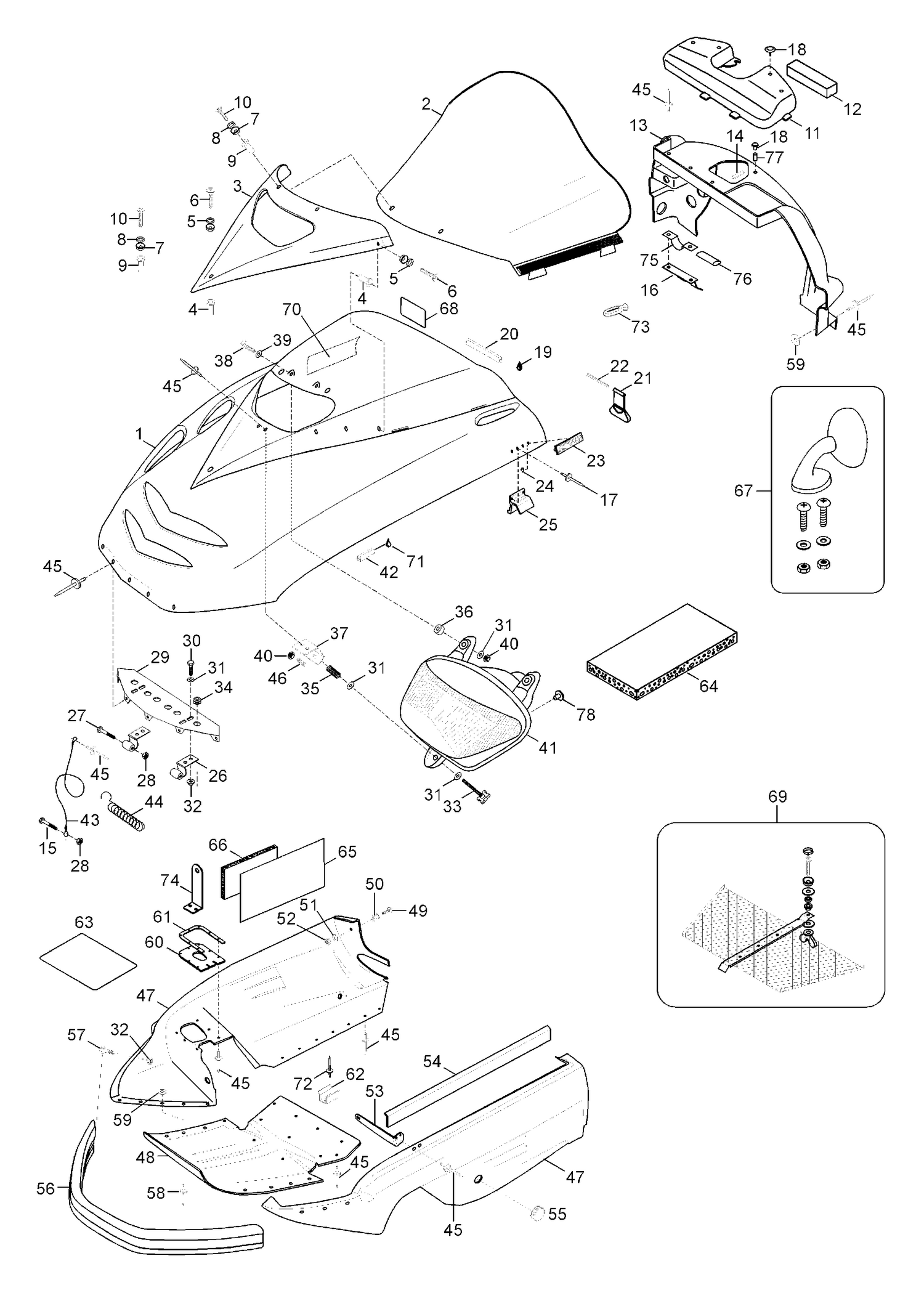

09- Hood
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5144406 | Hood blue |
| 2 | 5143620 | Windshield |
| 3 | 5241479 | Cover of lamp |
| 4 | 28051 | Well-Nut |
| 5 | 282001 | Cover |
| 6 | 40163 | Slot screw |
| 7 | 282002 | Screw bottom |
| 8 | 282003 | Screw cover |
| 9 | 250100018 | NUT M5 - Call your local BRP dealership This part replaces 28050. |
| 10 | 40179 | Slot screw M5x25 |
| 11 | 5343385 | Intake cover |
| 12 | 5343389 | Foam |
| 13 | 5144792 | Rear hood |
| 14 | 28413 | Sealing list |
| 15 | 40247 | Screw M5x16 |
| 16 | 5343015 | Bracket, console |
| 17 | 36009 | Rivet |
| 18 | 414644300 | Black, Dart |
| 19 | Not | Available As Spare Part - Bearing - DOES NOT APPLY TO THIS MODEL |
| 20 | 5442148 | Rubber ribbon of windsh. |
| 21 | 547233 | Pull rubber |
| 22 | 41011 | Spring Pin |
| 23 | 21131 | Reflector, yellow |
| 24 | 41034 | Push nut |
| 25 | 5441542 | Guide |
| 26 | 5440164 | Hinge weld. |
| 27 | 40235 | Screw M5x35 |
| 28 | 33009 | Nut elastic M5 |
| 29 | 5241372 | Retainer of hinge |
| 30 | 40030 | Screw M6x20 |
| 31 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 33 | 40342 | Adjuster screw |
| 34 | 28022 | Grommet |
| 35 | 25010 | Spring |
| 36 | 28032 | Grommet |
| 37 | 5443909 | Head lamp support |
| 38 | 40833 | Screw |
| 39 | 20007 | Washer |
| 40 | 33010 | Lock Nut M6 (1=10Pcs) |
| 41 | 42301 | Headlamp Assy |
| 42 | 5441964 | Trim |
| 43 | 5441558 | Retainer Cable |
| 44 | 2505171211 | Spring |
| 45 | 36036 | Rivet |
| 46 | 33066 | Nut |
| 47 | 5141333 | Bottom pan, R.H. |
| 47 | 5141335 | Bottom pan, L.H. |
| 48 | 5142892 | Bottom pan, middle |
| 49 | 40168 | Slot screw M4x25 |
| 50 | 542307 | Counter roll |
| 51 | 20037 | Washer |
| 52 | 33008 | Nut elastic M4 |
| 53 | 5343855 | Bracket |
| 53 | 5343856 | Bracket |
| 54 | 537206 | Support |
| 55 | 570277300 | Cap |
| 56 | 5241557 | Bumper |
| 57 | 40031 | Screw M6x25 |
| 58 | 36037 | Rivet |
| 59 | 20008 | Washer |
| 60 | 5342198 | Grommet |
| 61 | 5342199 | Plate |
| 62 | 5342387 | Guide |
| 63 | 44110 | Aluminum Foil |
| 64 | 414632400 | Foam (74'’x34'’x1/2) |
| 65 | 5345032 | Al-tape |
| 66 | 5342419 | Heat Shield |
| 67 | Not | Available As Spare Part - Mirror kit - DOES NOT APPLY TO THIS MODEL |
| 68 | Not | Available As Spare Part - Reflector tape - DOES NOT APPLY TO THIS MODEL |
| 69 | Not | Available As Spare Part - Grill Kit - DOES NOT APPLY TO THIS MODEL |
| 70 | Not | Available As Spare Part - Heat Shield - DOES NOT APPLY TO THIS MODEL |
| 72 | 36083 | Rivet |
| 73 | 570023800 | Latch |
| 74 | 5445031 | Front support |
| 75 | 5444001 | Support |
| 76 | 39026 | Tube |
| 77 | 5443985 | Rubber sleeve |
