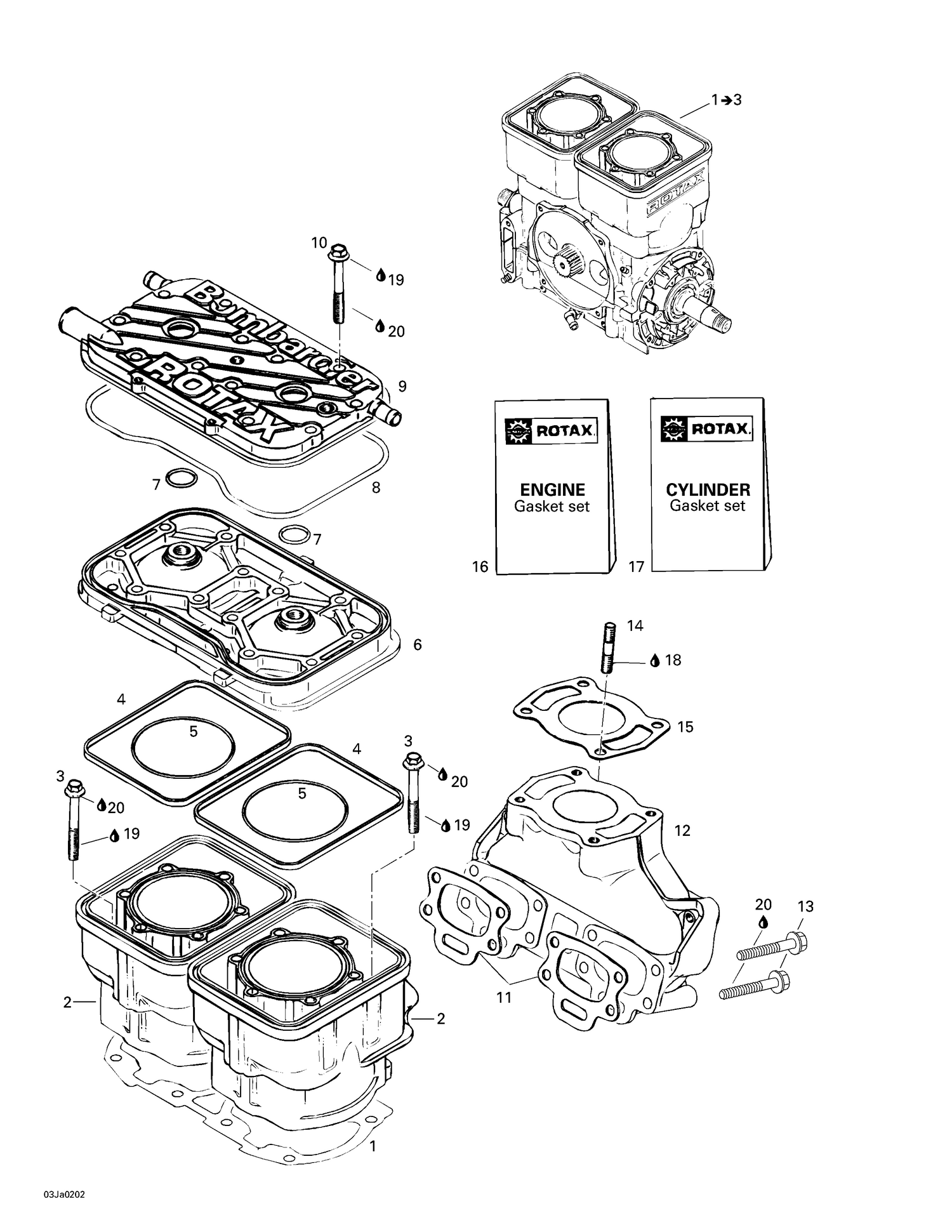

| Ref | Part Number | Description |
|---|
| 1 |
290931404 |
Gasket Cylinder 0.8 mm |
| 1 |
421000097 |
REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership |
| 2 |
290923805 |
Cylinder with Sleeve (Silver) |
| 2 |
421000056 |
REBUILD-CYLINDERS RESLEEVING 717 95-96 - Call your local BRP dealership |
| 3 |
290440368 |
HEX. FLANGE SCREW M8 X 90 - Call your local BRP dealership |
| 4 |
290850045 |
Rubber Ring |
| 5 |
420931410 |
O-Ring This part replaces 290931410. |
| 6 |
290923252 |
Head Cylinder (Silver) |
| 7 |
420430782 |
O-Ring |
| 8 |
420950360 |
O-RING - Call your local BRP dealership |
| 9 |
290923262 |
Cylinder Head Cover (Silver) |
| 10 |
290841998 |
Hex. Flange Screw M8 x 68.5 |
| 11 |
420850638 |
Gasket This part replaces 290850638. |
| 12 |
290979146 |
Exhaust Manifold |
| 13 |
290841998 |
Hex. Flange Screw M8 x 68.5 |
| 14 |
290940798 |
STUD M10 X 25, PTO - Call your local BRP dealership |
| 15 |
420950253 |
Exhaust Gasket This part replaces 290950253. |
| 16 |
420886319 |
ENGINE GASKET SET - Call your local BRP dealership This part replaces 290886319. |
| 17 |
290886318 |
Cylinder Gasket Set (Not Shown) |
| 18 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 290931400 |
Gasket |
Cylinder 0.3 mm 290931400 |
| 290931401 |
Gasket |
Cylinder 0.4 mm 290931401 |
| 290931402 |
GASKET |
CYLINDER 0.5 MM - Call your local BRP dealership 290931402 |
| 290931403 |
Gasket |
Cylinder 0.6 mm 290931403 |
