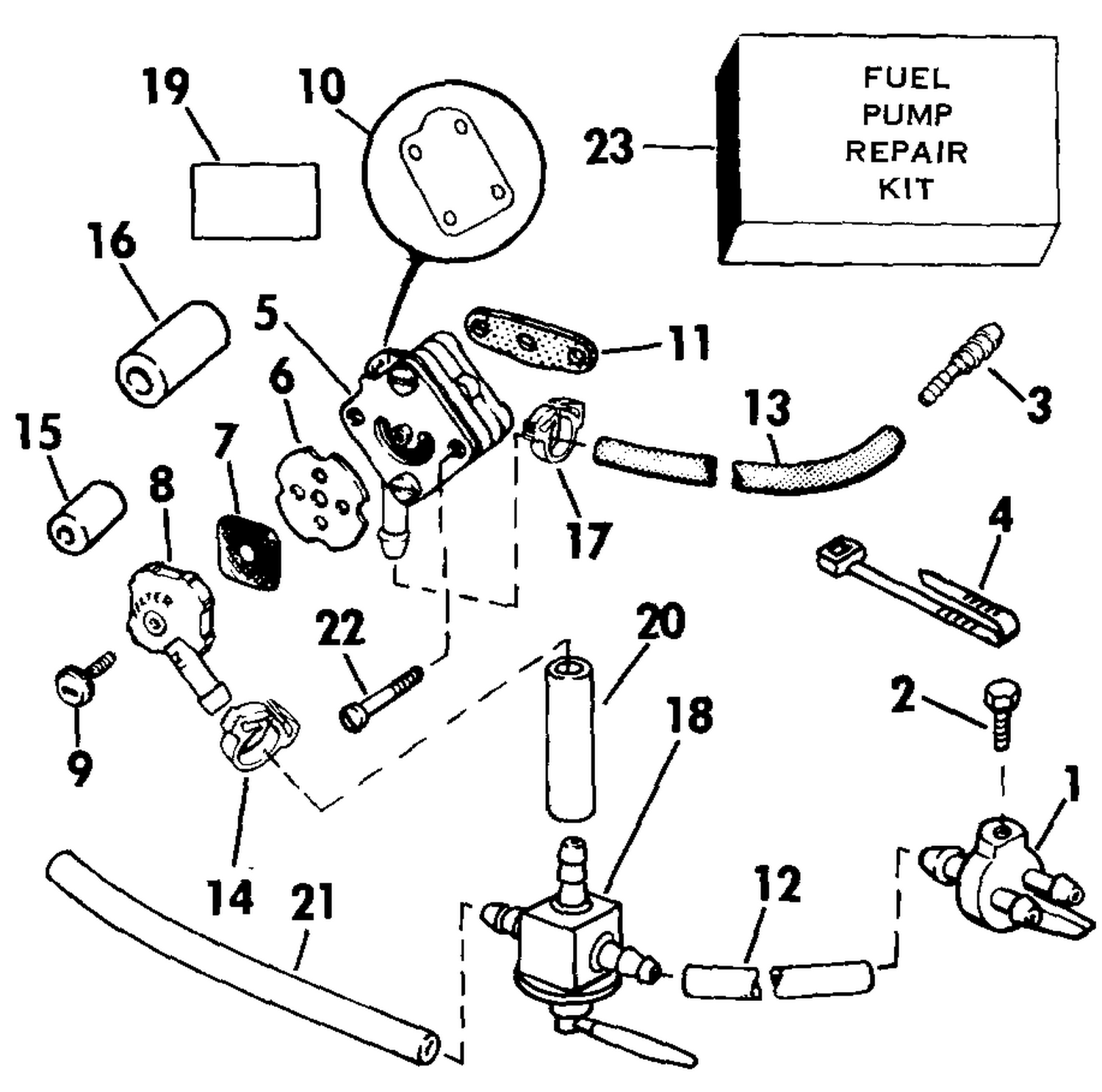

| Ref | Part Number | Description |
|---|
| 1 |
0393334 |
CONNECTEUR, carburant - mâle |
| 2 |
0313117 |
SCR,Clamp,eng cable |
| 3 |
0322524 |
INDICATOR FITTING |
| 4 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 5 |
0397445 |
FUEL PUMP ASSY |
| 11 |
0303615 |
GASKET |
| 12 |
HOSE, |
Valve to connector, 13" |
| 13 |
HOSE, |
Fuel, 6-1/4" long |
| 14 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 16 |
0309174 |
CAP |
| 17 |
0322653 |
CLAMP |
| 18 |
0173727 |
VALVE ASSEMBLY |
| 19 |
0123694 |
DECAL |
| 20 |
HOSE, |
Valve to pump, 3" |
| 21 |
HOSE, |
Fuel pump to connector, 26" |
| 22 |
0310356 |
SCREW |
| 955 |
515178223 |
Clip Connector |
| 3005 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 3600 |
515178248 |
Ground Wire |
| 3605 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3607 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 |
250000911 |
Hex. Flange Screw M5 X 16 |
| 4100 |
278003012 |
Starter Relay |
| 4200 |
515178919 |
Positive Cable |
| 4205 |
710000495 |
Protector Cap |
| 4210 |
232561434 |
Elastic Stop Nut M6 |
| 4240 |
207551044 |
Hex. Flange Screw M5 X 10 |
| 4327a |
250000282 |
Battery Bolt Kit |
| 4330 |
710001817 |
Protector Cap |
| 4340 |
515178695 |
Battery Strip |
| 4350 |
515178690 |
Battery Support Under |
| 4360 |
293150103 |
Pop Rivet 3/16 |
| 4370 |
250000843 |
Torx Truss Screw M6 X 30 |
| 4371 |
224061121 |
Flat Washer |
| 4700 |
515178564 |
Cable |
| 4720 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4730 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 0174510 |
0174510 |
ADAPTER KIT, Remote fuel tank with valve |
| 0174522 |
0174510 |
ADAPTER KIT, Remote fuel tank with valve This part replaces 0174522. |
