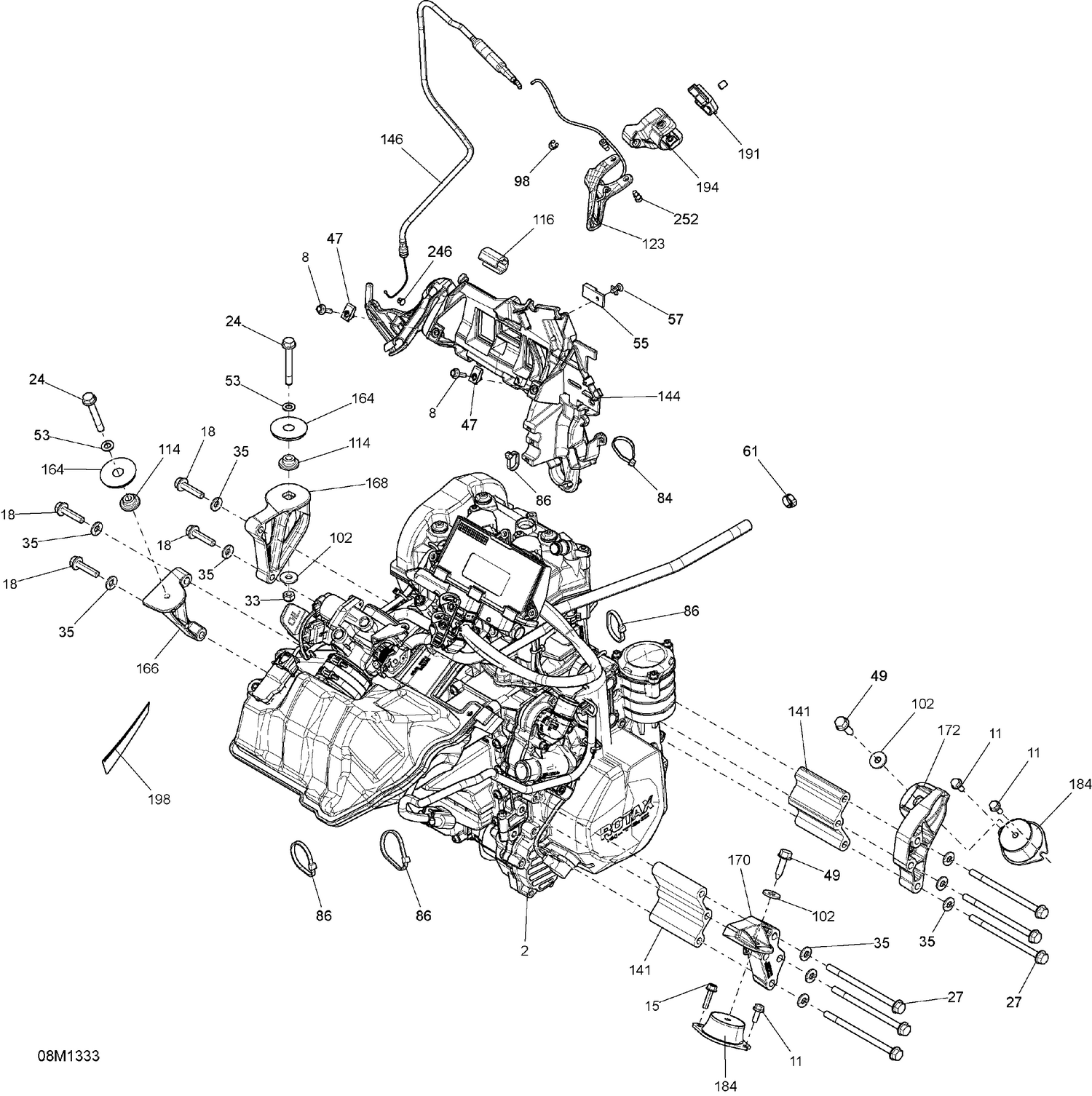

01- Engine And Engine Support
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Engine 600 ACE Ass'y |
| 8 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 15 | 207562534 | Hex. Flange Screw M6 X 25, Scotch Grip |
| 24 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 27 | 230582544 | Hex. Flange Screw M8 X 125, Scotch Grip |
| 33 | 232581414 | Hex. Elastic Stop Nut M8 |
| 35 | 234281474 | Conical Spring Washer M8 |
| 47 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 49 | 250000257 | Cone Screw, M8 X 30 |
| 53 | 250200008 | Flat Washer With Teflon 8 mm |
| 55 | 270000141 | Clip |
| 57 | 293150027 | Avdel Rivet |
| 61 | 293650046 | Oetiker Clamp |
| 84 | 293750008 | Tie Wrap 368 mm |
| 86 | 414115200 | Tie-Rap 180 mm |
| 98 | 414274500 | Circlip |
| 102 | 503183200 | Yellow, Washer |
| 114 | 512060285 | Spacer |
| 116 | 512060313 | Protector |
| 123 | 512061252 | Throttle Handle Ass'y This part replaces 512060616. |
| 141 | 512060505 | Shim |
| 144 | 512060509 | MODULE SUPPORT - Call your local BRP dealership |
| 164 | 512061203 | Stopper This part replaces 512060647. |
| 166 | 512061139 | Rear Support PTO This part replaces 512060660. |
| 168 | 512061140 | Front Support PTO This part replaces 512060661. |
| 170 | 512061142 | Rear Support MAG This part replaces 512060662. |
| 172 | 512060663 | Front Support, MAG |
| 184 | 512060729 | Rubber Mount |
| 191 | 512060859 | Upper Housing |
| 194 | 512060860 | Lower Housing |
| 198 | 516005521 | Caution Decal, Oil Level |
| 246 | 707000434 | Cable Guide |
| 252 | 732601143 | Flange Screw |
