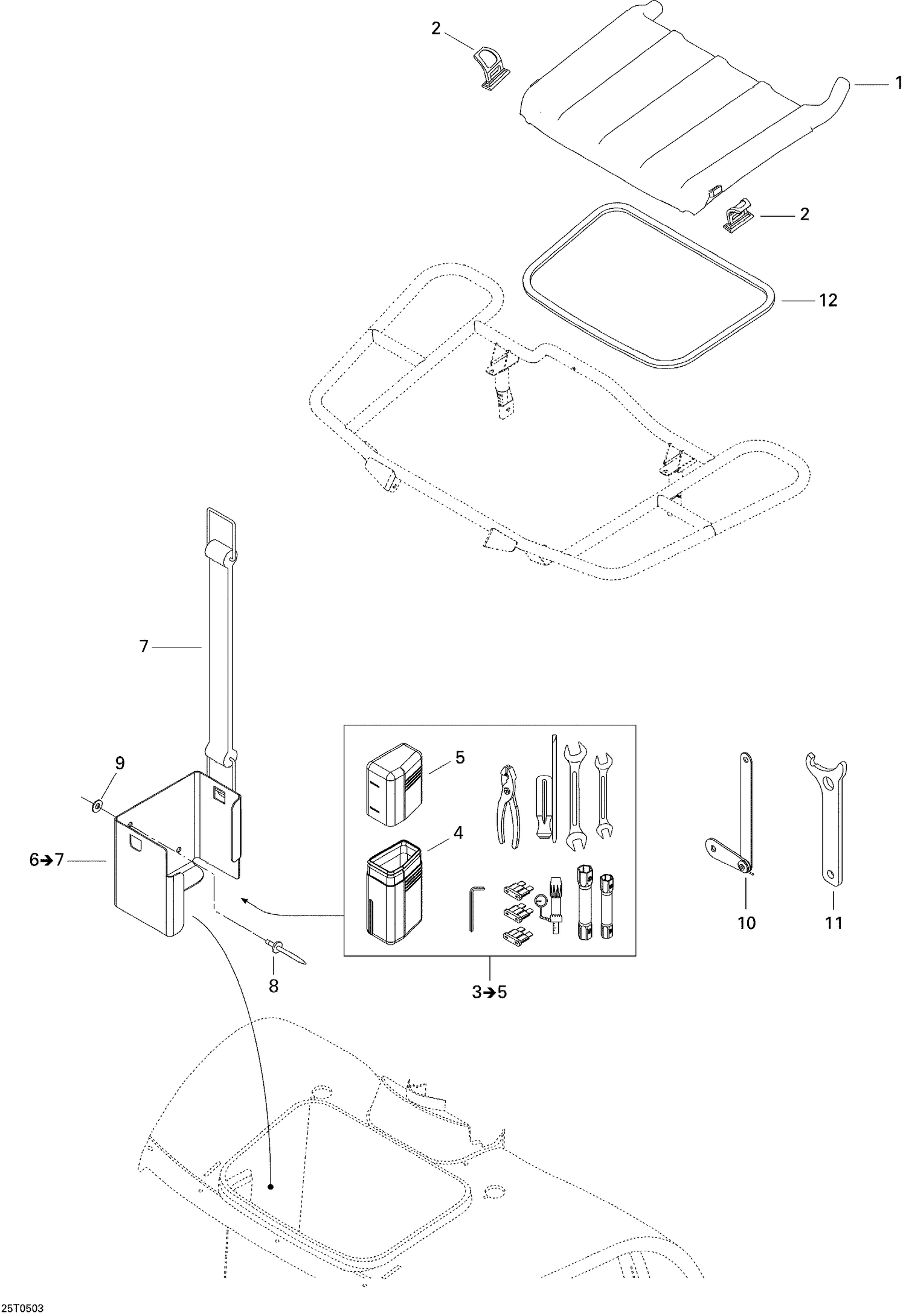

09- Front Storage Tray
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 708200042 | Storage Cover |
| 2 | 708200003 | COVER LATCH - Call your local BRP dealership |
| 4 | A50121179000 | TOOL BOX - Call your local BRP dealership This part replaces 708200041. |
| 5 | Not | Available As Spare Part - Box Cover |
| 7 | 293850097 | Retainer Strap This part replaces 293850080. |
| 8 | 390402300 | Pop Rivet 3/16" |
| 9 | 517225900 | Flat Washer |
| 10 | 529035599 | TRANSMISSION WRENCH ASS'Y - Call your local BRP dealership |
| 11 | 529000035 | Adjustment Wrench This part replaces 529032900. |
