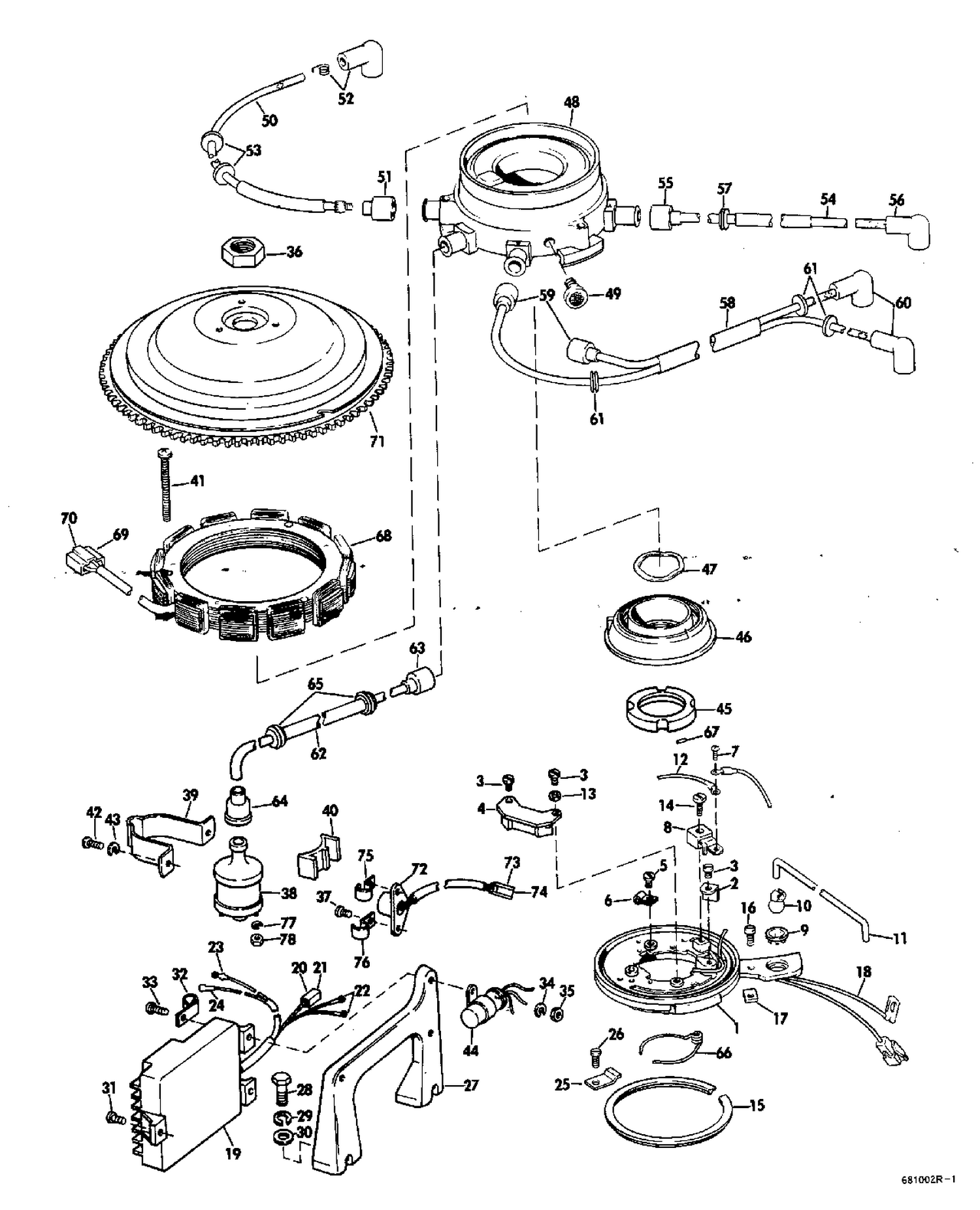

| Ref | Part Number | Description |
|---|
| 1 |
0382751 |
BASE PLATE ASSY |
| 2 |
0313585 |
CLIP |
| 3 |
0510338 |
SCREW |
| 4 |
0382534 |
SENSOR ASSEMBLY |
| 5 |
0311389 |
SCREW, Lead clamps |
| 6 |
0314200 |
CLAMP |
| 7 |
0314471 |
SCREW |
| 8 |
0382495 |
CONTACT ASSEMBLY |
| 9 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 10 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 11 |
0313738 |
ROD, Spark advance |
| 12 |
0382535 |
LEAD ASSEMBLY |
| 14 |
0307466 |
SCRES, Bowl to body |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0306158 |
SCREW, Clamp |
| 17 |
0313674 |
CLAMP LEADS |
| 18 |
0580696 |
LEAD ASSY. |
| 19 |
0382478 |
PULSE PACK ASSY |
| 20 |
0510765 |
HOUSING |
| 23 |
0510779 |
TERMINAL, Ring |
| 24 |
0510778 |
TERMINAL, Slip on |
| 25 |
0313668 |
CLAMP, Dist.base |
| 27 |
0312964 |
BRACKET, Pulse pack mounting |
| 28 |
0310896 |
SCREW |
| 29 |
0307708 |
RONDELLE GROWER |
| 30 |
0120025 |
WASHER, Mounting screw |
| 31 |
0304607 |
PULSE PACK SCREW ASSY |
| 32 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 33 |
0307152 |
SCREW, Cliipper assemlby |
| 36 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 37 |
0304607 |
PULSE PACK SCREW ASSY |
| 38 |
0381886 |
PULSE TRANSFORMER ASSY. |
| 39 |
0313976 |
BRACKET,Pulse trans-former exhaust cover, |
| 40 |
0313977 |
CRADLE, Pulse transformer |
| 41 |
0313740 |
SCREW, Starter and distributor |
| 44 |
0580732 |
VOLTAGE SUPPRESSOR ASSY |
| 45 |
0313587 |
ROTOR, Distributor sensor |
| 46 |
0382424 |
ROTOR |
| 47 |
0313667 |
SPR, Washer, flywheel to rotor |
| 48 |
0382480 |
DIST. CAP AND SCREEN ASSY |
| 50 |
0382591 |
LEAD ASSEMBLY #1 |
| 51 |
0313586 |
CONVER, H. T. lead |
| 53 |
0551426 |
GORMMET |
| 54 |
0382592 |
LEAD ASSEMBLY #3 |
| 55 |
0313586 |
CONVER, H. T. lead |
| 57 |
0551426 |
GORMMET |
| 58 |
0382593 |
LEAD ASS.,#2,#4 |
| 59 |
0313586 |
CONVER, H. T. lead |
| 61 |
0551426 |
GORMMET |
| 62 |
0382594 |
LEAD ASSY., Distributor to coil |
| 63 |
0313586 |
CONVER, H. T. lead |
| 64 |
0510332 |
NIPPLE |
| 65 |
0551426 |
GORMMET |
| 66 |
0313743 |
RING, Reverse cut off |
| 67 |
0313755 |
PIN, Rotor to c/shaft |
| 68 |
0580725 |
STATOR ASSY., 15 amp |
| 69 |
0510471 |
CONNECTOR |
| 70 |
0510469 |
TAB |
| 71 |
0580685 |
FLYWHEEL & RING GEAR |
| 72 |
0580705 |
HOUSING RECTIFIER AND LEAD ASSY |
| 75 |
0310499 |
CLAMP, Sensor |
| 76 |
0310441 |
CLAMP, CPS lead |
| 77 |
0550757 |
L'WASHER,Coil term |
| 0383075 |
0383075 |
DISTRIBUTOR BASE ASSY., Complete |
