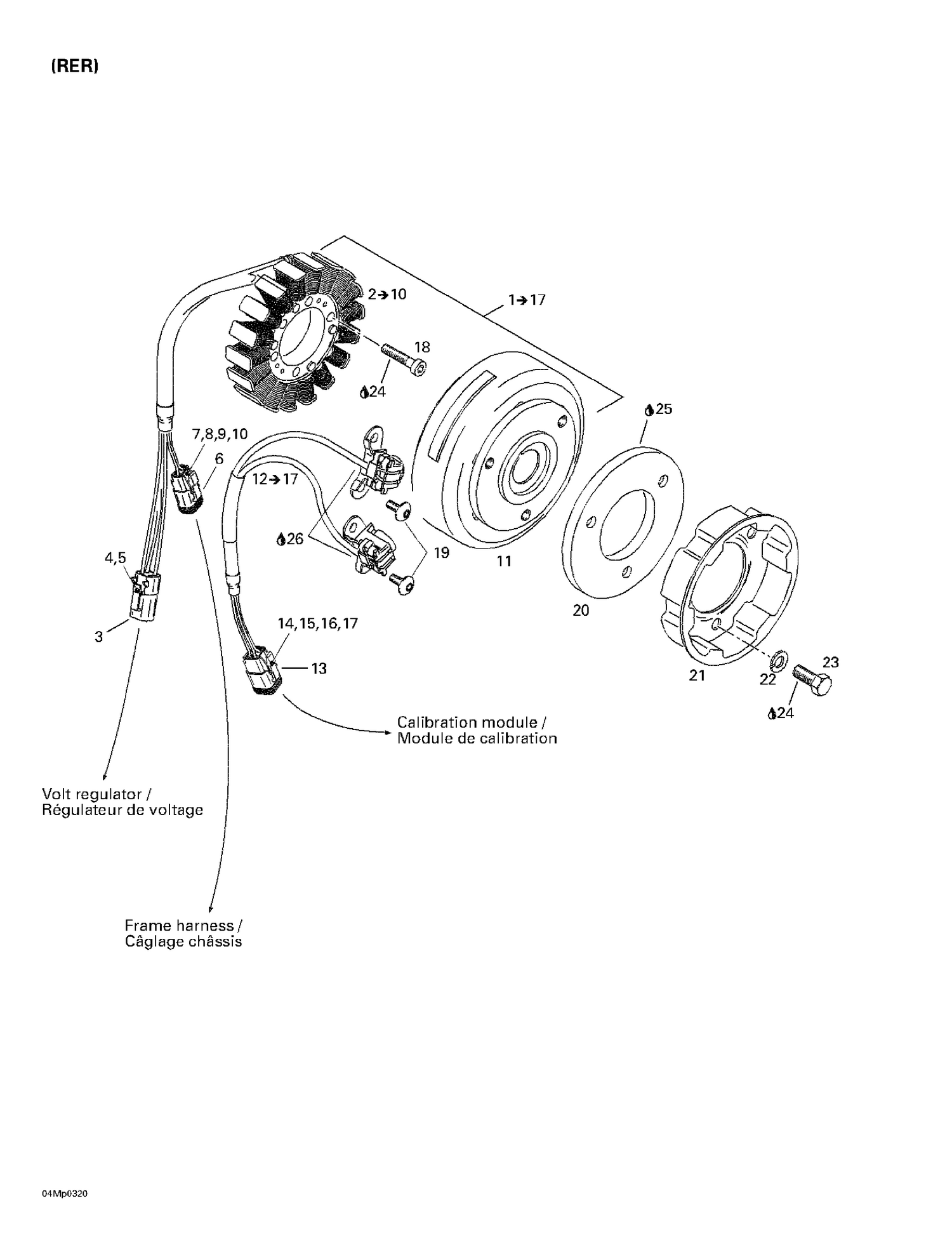

| Ref | Part Number | Description |
|---|
| 3 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 4 |
515175568 |
Male Terminal |
| 5 |
278001474 |
Female Lock, 4 Circuits |
| 6 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 7 |
278000632 |
Female Terminal |
| 8 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 9 |
515175675 |
Female Lock, 2 Circuits |
| 10 |
293000052 |
Sealing Cap |
| 11 |
410922947 |
FLYWHEEL - Call your local BRP dealership |
| 13 |
515175672 |
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership |
| 14 |
278000632 |
Female Terminal |
| 15 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 16 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 17 |
293000052 |
Sealing Cap |
| 18 |
205063044 |
Socket Head Screw M6 X 30 |
| 19 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 20 |
420866756 |
Flywheel |
| 21 |
420852533 |
Starting Pulley This part replaces 420852532. |
| 22 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 23 |
207182044 |
Hex. Screw M8 X 20 |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
