Home / BRP / 2020 / 010 - SKI-DOO - Europe - BACKCOUNTRY Series / 001 - BACKCOUNTRY 600R E-TEC - Europe, 2020 000UJLC00 / GEARCASE

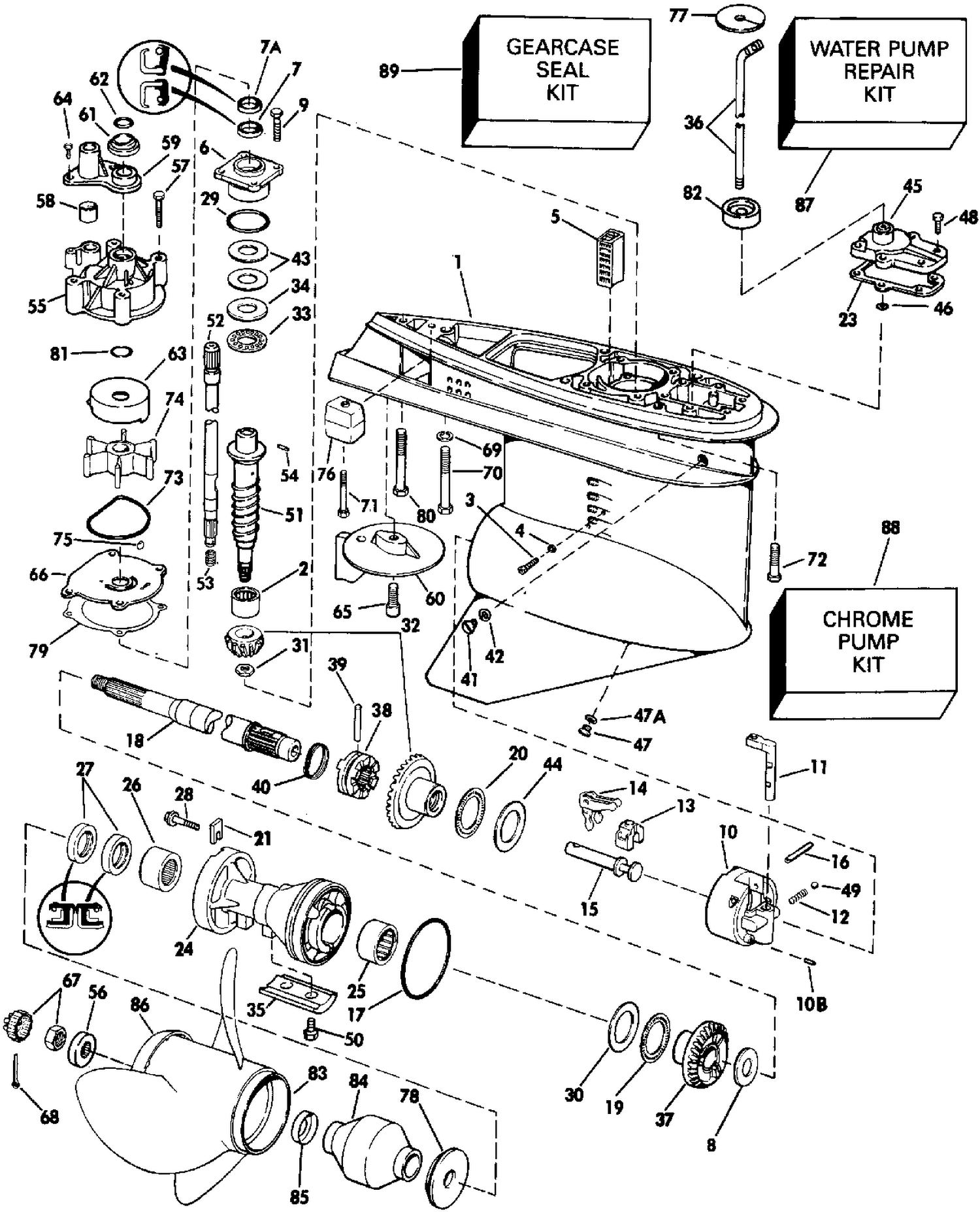

GEARCASE

GEARCASE

Parts (45)

RefPart NumberDescription
17 0305123 O RING This part replaces 0321119.
26 0434467 NEEDLE BEARING ASSY.
36 0324407 SHIFT ROD
52 5000618 Kit This part replaces 0335900.
53 0335684 DRIVESHAFT SPRING
55 0435485 IMPELLER HOUSING ASSY. This part replaces 0395040.
57 0335221 SCREW, Throttle body to reed plate This part replaces 0328715.
60 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0327640.
63 0435027 CUP & PLATE This part replaces 0330379.
63 0435526 CHROME CUP & PLATE KIT This part replaces 0330384.
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
66 0435027 CUP & PLATE This part replaces 0330380.
66 0435526 CHROME CUP & PLATE KIT This part replaces 0330383.
70 0331998 SCREW, Gearcase to housing
72 0331999 SCREW, Gearcase housing
73 0331353 Seal, Impeller Housing Plate.
77 0322302 SEAL, Adapter to frame
80 0330263 SCREW, Mounting, 3/8 in. X 3.50 in.
81 0332000 SEAL RING
83 0174821 PROP, 4 blade 13 1/4 X 29
83 0174926 PROPELLER, 15 X 15 SST
83 0387995 PROP, 14-1/2 x 24 sstr
83 0387996 PROP, 14-1/2 x 26 sstr
83 0389019 PROP, 14-1/2 x 23 SST
83 0389923 PROP, 14-1/2 x 21 SST
83 0389924 PROP, 14-1/2 x 19 SST
83 0390725 PROP, 14 x 25 SST
83 0391201 PROP, 14-1/2 x 19
83 0391202 PROP, 14-1/2 x 21
83 0391203 BEARING ASSY,Rear,std
83 0391863 PROPELLER, 14 1/2 X 27 OMC SRX
83 0391864 PROPELLER, 14 1/2 x 29 OMC SRX
83 0394752 PROPELLER, 14 1/2 x 18 OMC Raker
83 0394753 PROPELLER, 14 1/2 x 20 OMC Raker
83 0394754 PROPELLER, 14 1/2 x 22 OMC Raker
83 0394755 PROPELLER, 13 1/2 X 24 OMC RAKER
83 0394756 PROPELLER, 14 1/2 x 26 OMC Raker
83 0394757 PROPELLER, 14 1/2 x 28 OMC Raker
83 0431717 PROP, 4 blade, 13 1/2 x 23
83 0431718 PROP, 4 blade, 13 1/4 x 25
83 0431719 PROP, 4 blade, 13 1/4 x 27
87 5001594 WATER PUMP REPAIR KIT This part replaces 0395060.
88 0435526 CHROME CUP & PLATE KIT This part replaces 0395059.
0434013 5000775 Kit Ayd/Shaft-20 This part replaces 0434013.
0434417 0434417 GEARCASE ASSY., Complete
