Parts Catalog

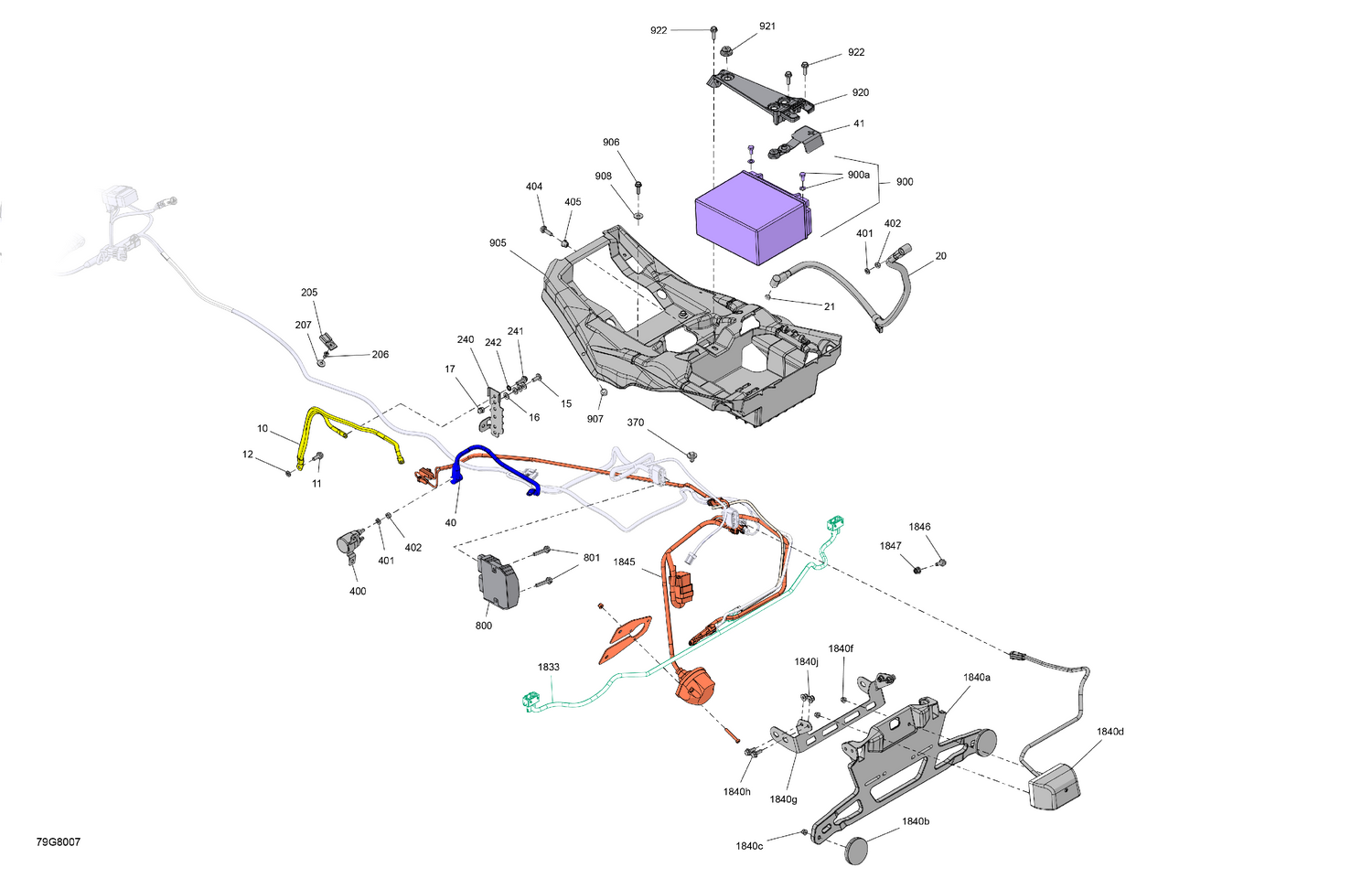

08- Electric - Rear Section

Parts (43)

Ref	Part Number	Description
10	710004382	Ground Cable
11	207561644	Hex. Flange Screw M6 X 16, Scotch Grip
12	234161601	Lock Washer Helical M6
15	250000717	Torx Head Screw M6 X 16
16	224061121	Flat Washer
17	232361493	Domed Nut M6
20	710004377	Positive Cable
21	232561414	Elastic Stop Nut M6
40	710004376	Positive Cable
41	710006729	Battery Cable Cap
205	270000141	Clip
206	390402300	Pop Rivet 3/16"
207	391301600	Washer
240	710004118	Connector Bracket
241	210262040	Hex. Flange Screw M6 X 20
242	234461608	External Serrated Lock Washer 6 mm
370	293730040	Mount Dart
400	710007777	Starter Relay
401	234161601	Lock Washer Helical M6
402	232561414	Elastic Stop Nut M6
404	207662054	Hex. Flange Screw M6 X 20
405	233261414	Hex. Flange Elastic Nut M6 x 1.0
800	710010539	Voltage Regulator This part replaces 515177325.
801	207563034	Hex. Flange Screw M6 X 30, Scotch Grip
900a	250000282	Battery Bolt Kit
905	710008370	Battery Support This part replaces 710006561.
906	210262050	Hexagonal Head Screw
907	293830005	Rubber Bumper
908	234062670	Stainless Steel Flat Washer
920	710009129	Retaining Plate This part replaces 710002404.
921	705014429	Rubber Stopper This part replaces 705003666.
922	207662054	Hex. Flange Screw M6 X 20
1833	515178093	REAR LIGHT HARNESS - Call your local BRP dealership
1840a	708300434	Plate Support
1840b	705011221	Red Reflector
1840c	233251434	Flange Elastic Nut M5 This part replaces 233251414.
1840d	710005563	License Plate Light
1840f	233251434	Flange Elastic Nut M5 This part replaces 233251414.
1840g	710009520	License Plate Support
1840h	207661644	Hex. Flange Screw M6 X 16
1840j	233261414	Hex. Flange Elastic Nut M6 x 1.0
1845	860200927	Trailer Plug Ass'y
1846	207661644	Hex. Flange Screw M6 X 16
