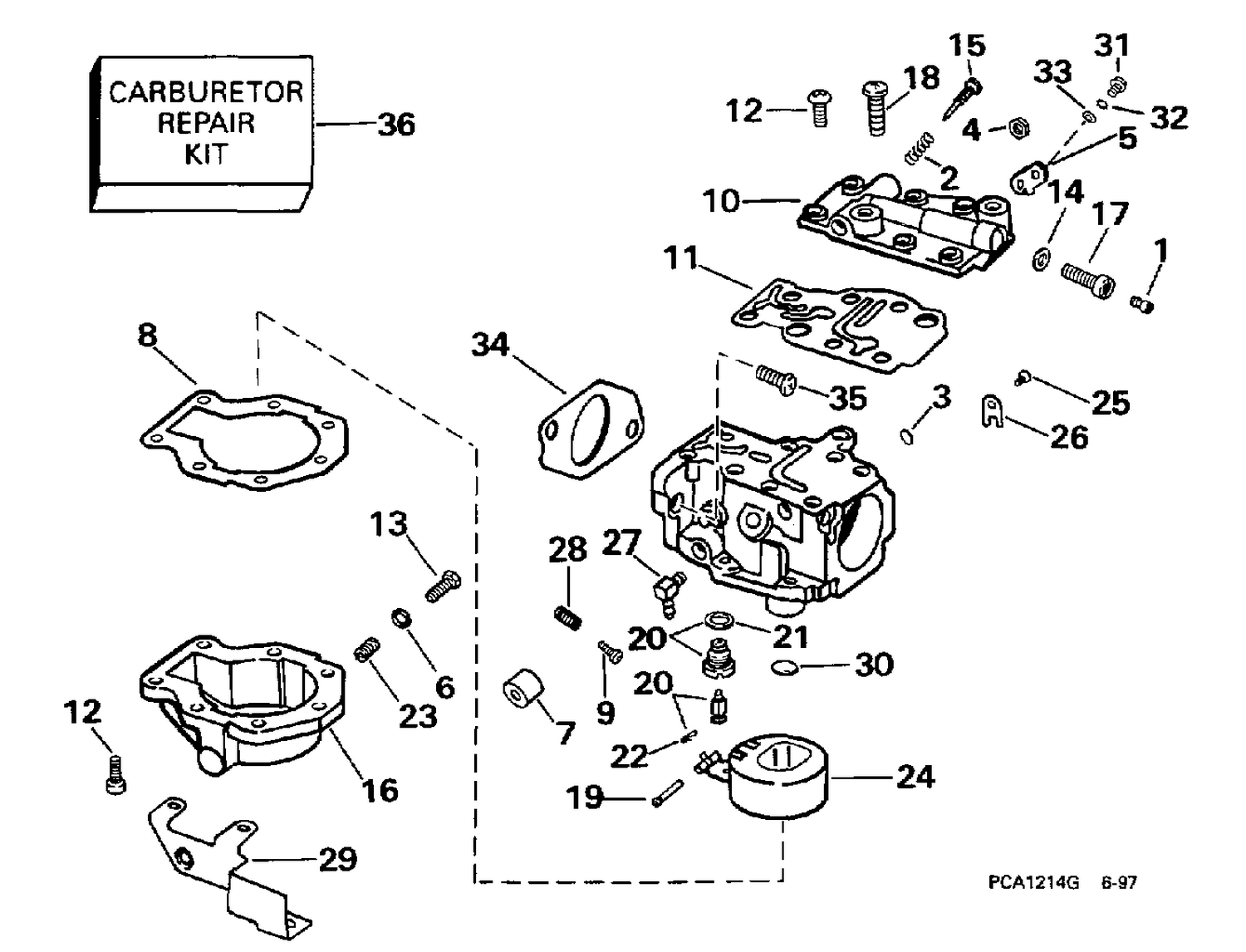

CARBURETOR -- 25 HP

CARBURETOR -- 25 HP

Parts (9)

RefPart NumberDescription
7 0323326 GALET, came
22 0336842 CLIP, SPRING
31 0306014 VIS, ancrage
34 0340461 GASKET
35 0340002 SCREW, Carburetor mounting, M6
0438270 0438270 CARBURETOR ASSY.
0438271 0438271 CARBURETOR ASSY.
0438272 0438272 CARBURETOR ASSY.
0438273 0438273 CARBURETOR ASSY.
