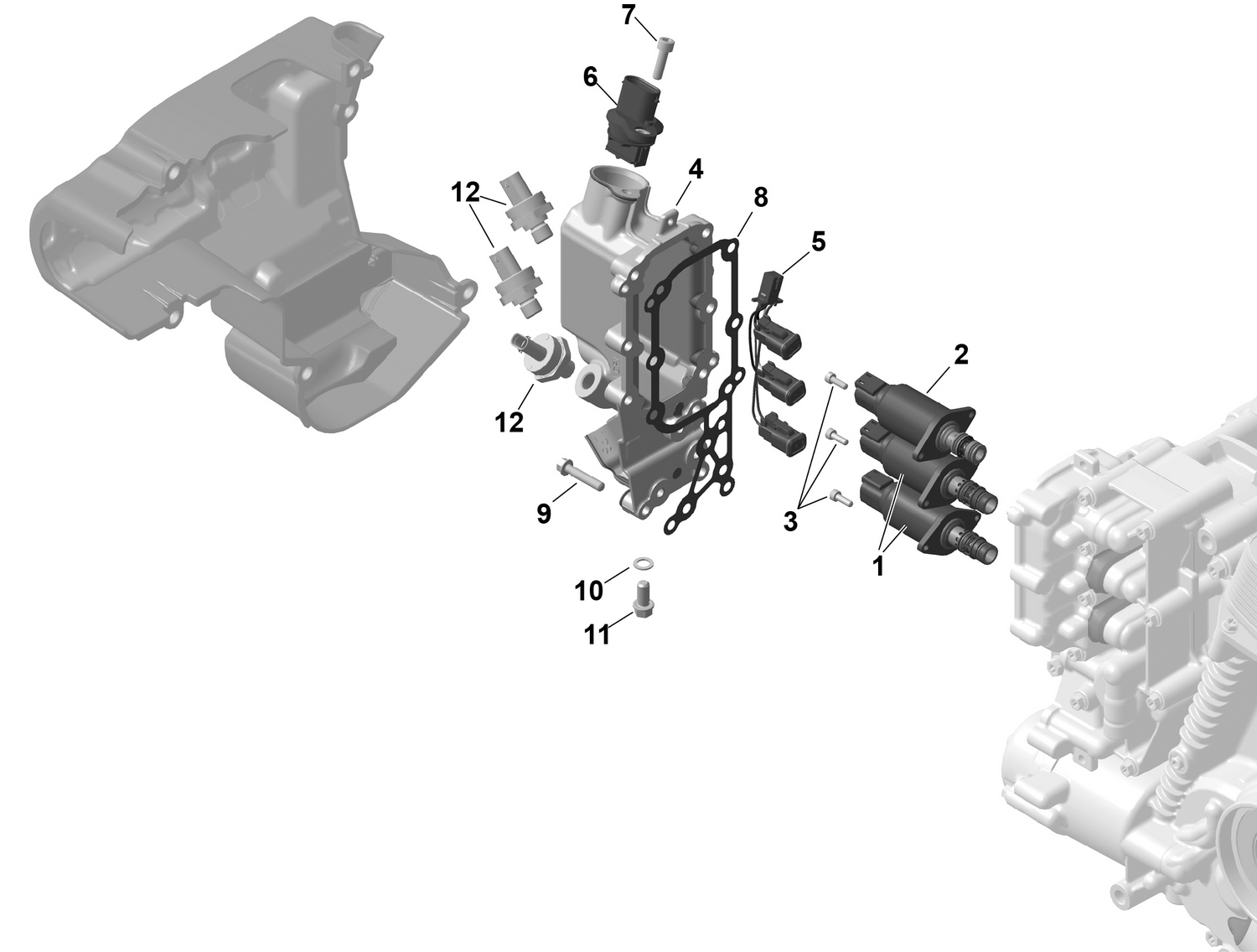

01- ROTAX - GearBox Housing
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420664634 | Solenoid Valve |
| 2 | 420664632 | Solenoid Valve |
| 3 | 420440294 | Allen Screw M4X12 |
| 4 | 420210196 | Hydraulic Valve Cover |
| 5 | 420264106 | Internal Gearbox Wiring Harness |
| 6 | 420264552 | Multiple Connector |
| 7 | 420241935 | Allen Screw M6x20 |
| 8 | 420431053 | Gasket |
| 9 | 420440647 | Torx Flange Screw M6 X 30 |
| 10 | 420950141 | Sealing Ring |
| 11 | 420440852 | Torx Flange Screw M8 X 16 |
