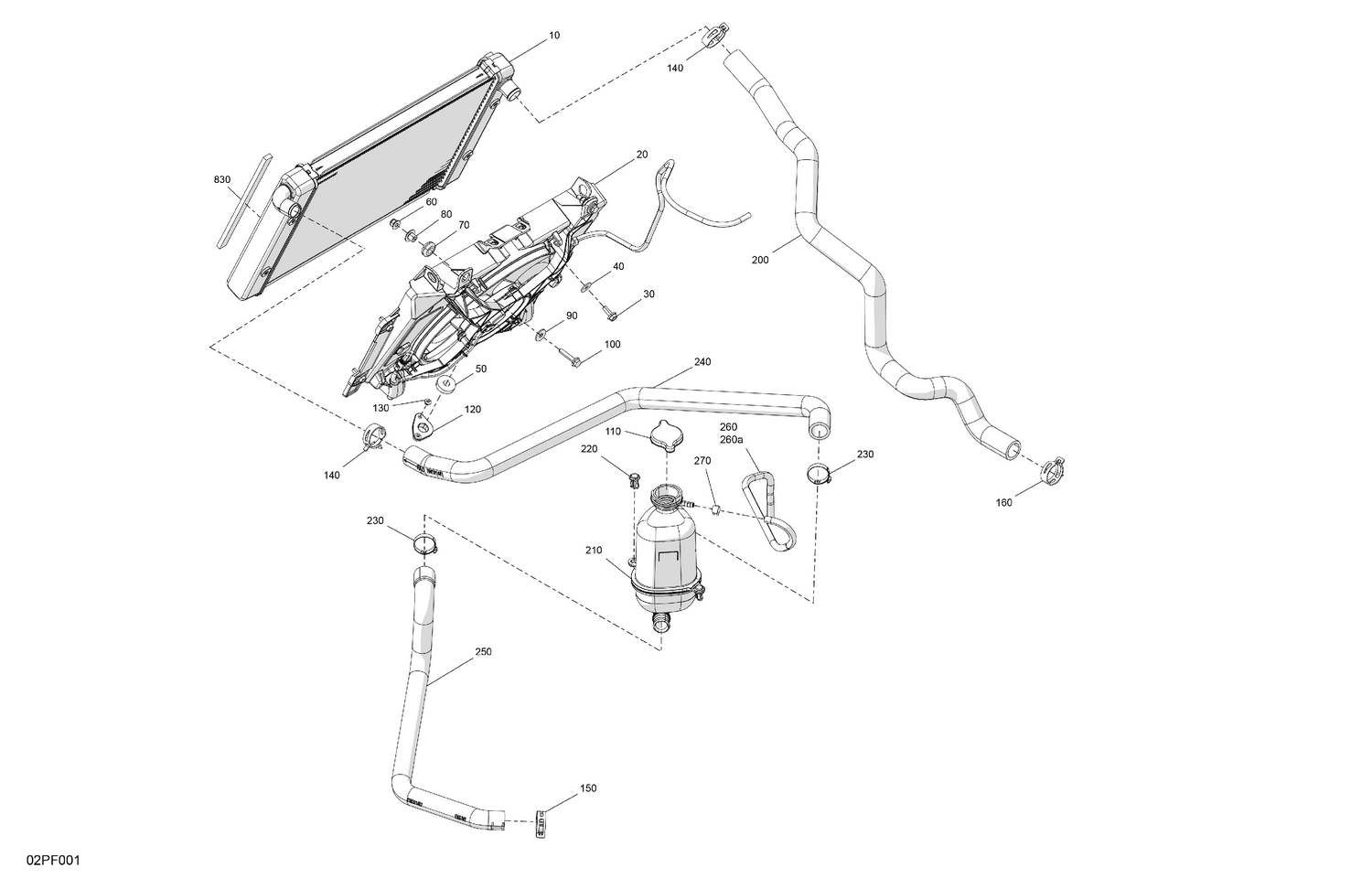

02- Engine - Cooling
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200762 | Radiator |
| 20 | 709200763 | Cooling Fan |
| 30 | 250000906 | Hex Flange Screw M6 X 16 |
| 40 | 234062410 | Flat Washer 6 mm |
| 50 | 709200948 | Grommet |
| 60 | 233261466 | Hex. Flange Elastic Nut M6 |
| 70 | 293720130 | Overmolded Grommet |
| 80 | 709001288 | Bushing |
| 90 | 250200082 | Flat Washer |
| 100 | 207663046 | Hex. Flange Screw M6 X 30 |
| 110 | 709200207 | Radiator Pressure Cap |
| 120 | 709201149 | Radiator Support |
| 130 | 293150293 | Pop Rivet 3/16 X ,425 |
| 140 | 293650108 | Norma Spring Clamp |
| 150 | 293650109 | Norma Spring Clamp |
| 160 | 293650108 | Norma Spring Clamp |
| 200 | 709201483 | Coolant Hose |
| 210 | 715009560 | Coolant Tank |
| 220 | 293150230 | Tuflok Plastic Rivet |
| 230 | 293650331 | Crimp Clamp |
| 240 | 709201481 | Coolant Hose |
| 250 | 709201482 | Coolant Hose |
| 260a | XXX | Not Available As Spare Parts |
| 270 | 414554800 | Spring Clamp |
