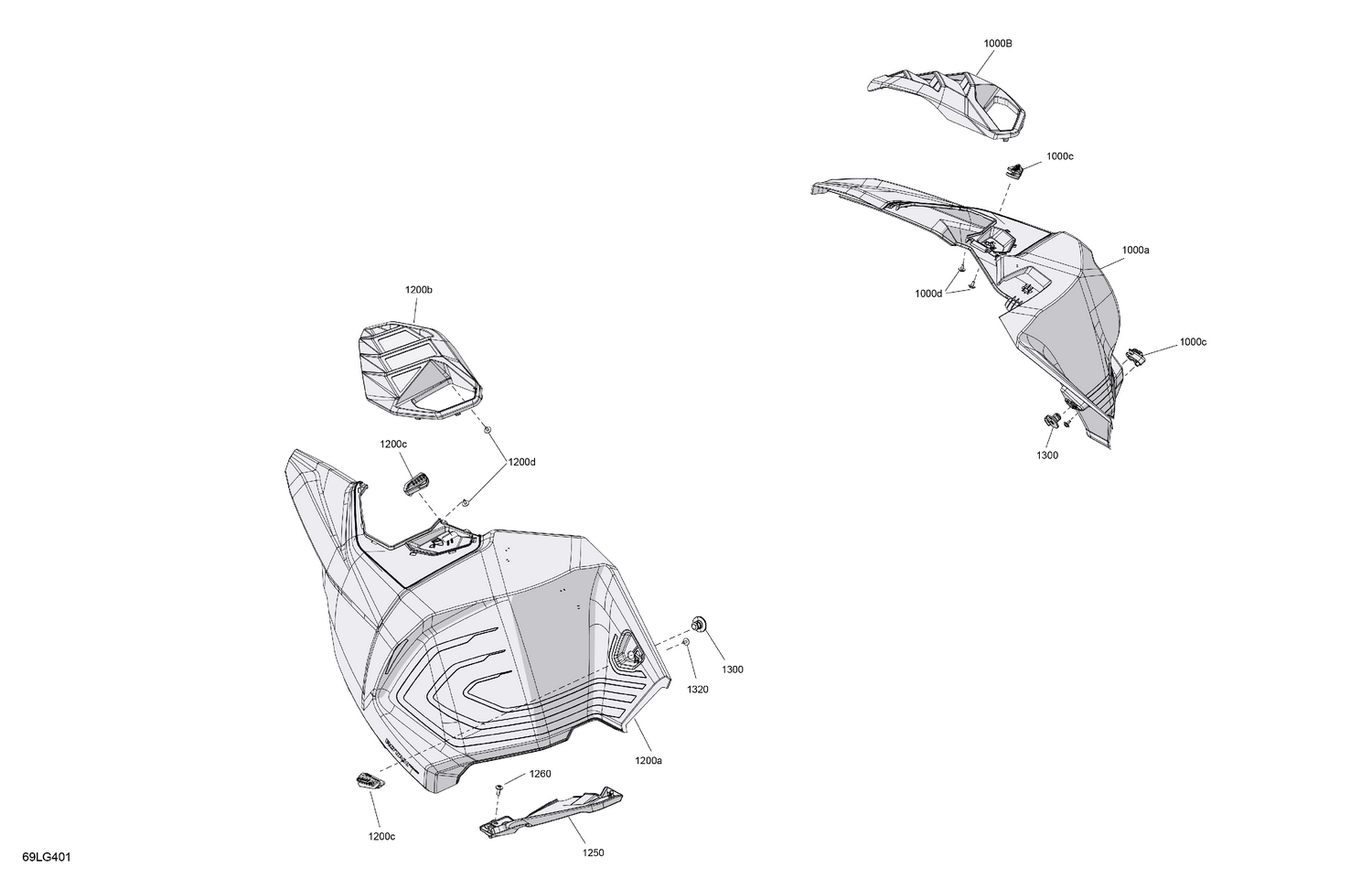

07- Body - Side Panels
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 517306817 | RH Side Panel 24" With Gearbox |
| 1000b | 517309378 | Deep Black, RH Grille Trim |
| 1000c | 517305773 | RH Rear Latch |
| 1000d | 250000805 | Plastite Screw M4 X 10 |
| 1200a | 517307250 | LH Side Panel 24" |
| 1200b | 517309379 | Deep Black, LH Grille Trim |
| 1200c | 517305774 | LH Rear Latch |
| 1200d | 250000805 | Plastite Screw M4 X 10 |
| 1250 | 517310039 | LH Lower Molded Snow Guard |
| 1260 | 250000721 | Torx Truss Screw M6 X 16 |
| 1300 | 517305985 | Rear Stud |
