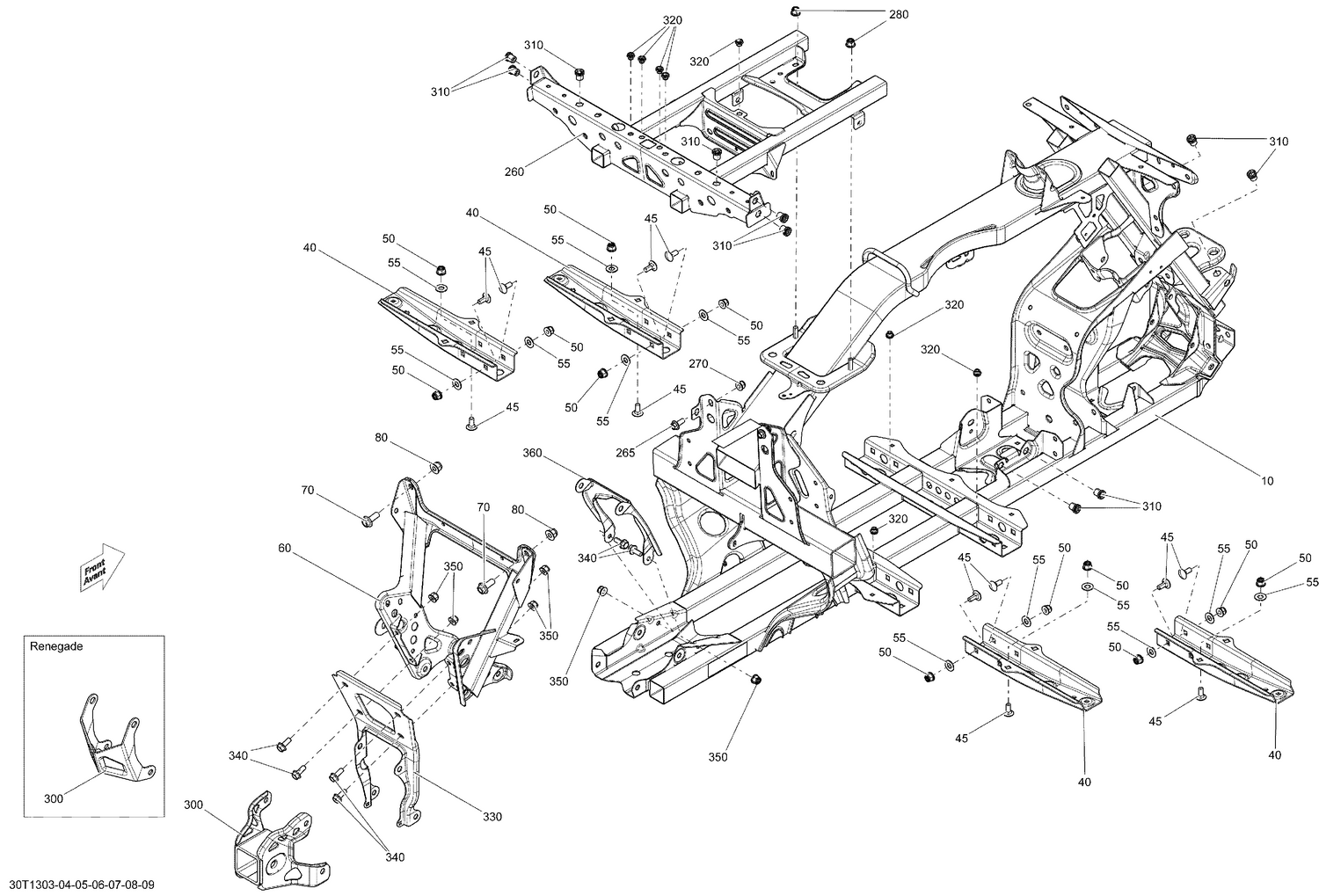

| Ref | Part Number | Description |
|---|
| 40 |
703500852 |
SUPPORT KIT - Call your local BRP dealership This part replaces 705202021. |
| 45 |
207782044 |
Carriage Bolt, M8 X 20 |
| 50 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 55 |
234001410 |
Flat Washer 10 mm |
| 60 |
705210818 |
Rear Pillar This part replaces 705201907. |
| 70 |
207602546 |
Hex. Flange Screw M10 X 25 |
| 80 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 260 |
705202291 |
WELDED EXTENSION, BLACK - Call your local BRP dealership |
| 265 |
207602546 |
Hex. Flange Screw M10 X 25 |
| 270 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 280 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 310 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 330 |
705203301 |
Rear Support |
| 340 |
207682046 |
Hex. Flange Screw M8 X 20 |
| 350 |
233281416 |
Hex. Elastic Flange Nut M8 |
