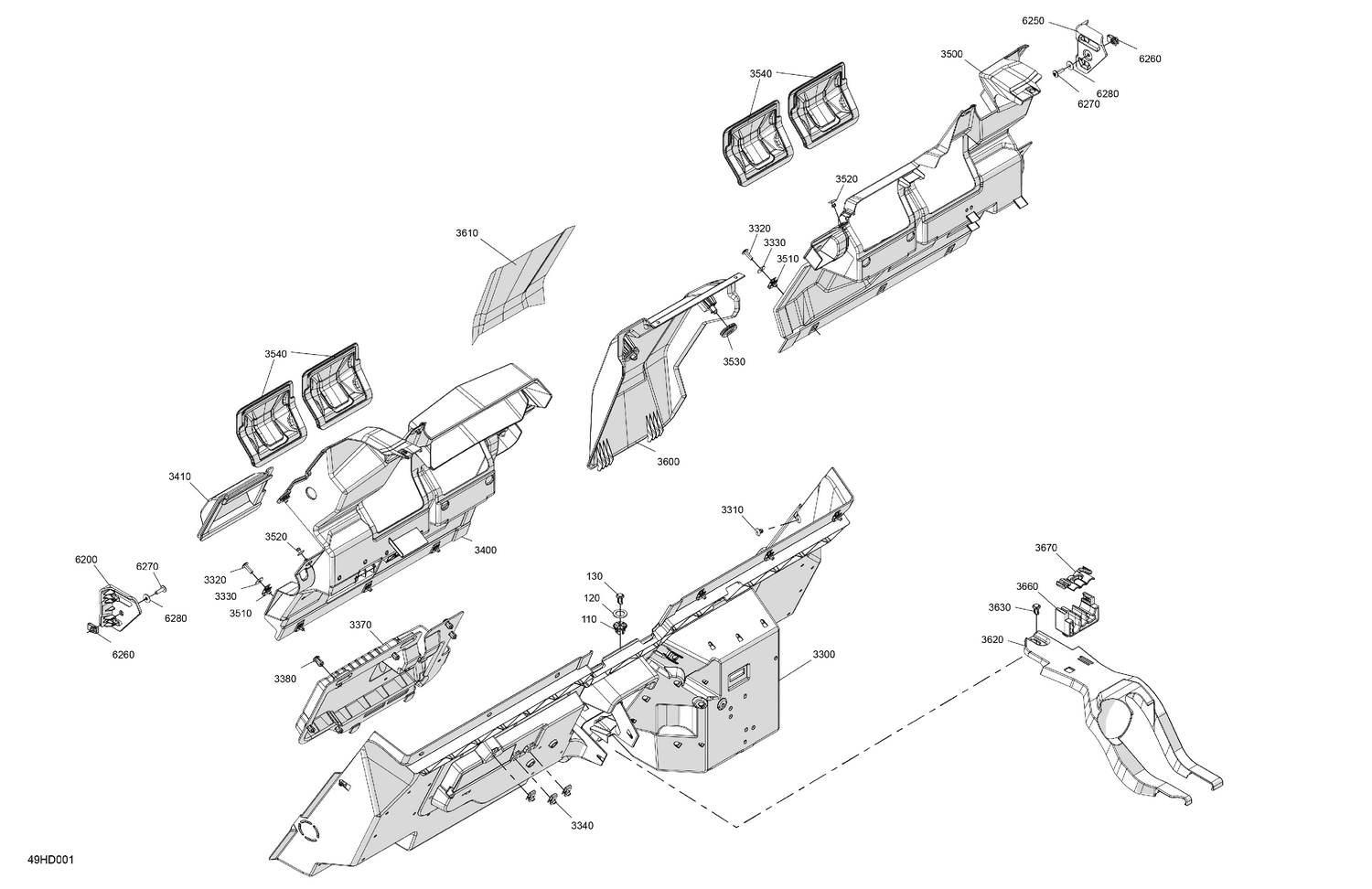

07- Cab Interior - Back Wall
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 707900133 | Insert |
| 120 | 503189273 | Washer |
| 130 | 293150230 | Tuflok Plastic Rivet |
| 3300 | 707900929 | Rear Lower Seperation Panel |
| 3310 | 293150104 | Pop Rivet 3/16" |
| 3320 | 250000722 | Torx Screw M6 X 20 |
| 3330 | 234062670 | Stainless Steel Flat Washer |
| 3340 | 250100198 | Panel Nut M6 X 1.0 |
| 3370 | 707900880 | Fuse Box Cover |
| 3380 | 293150230 | Tuflok Plastic Rivet |
| 3400 | 703501073 | LH Upper Bulkhead Kit |
| 3410 | 707900652 | Bulkhead Cover |
| 3500 | 707900935 | RH Upper Bulkhead Kit |
| 3510 | 250100198 | Panel Nut M6 X 1.0 |
| 3520 | 293150104 | Pop Rivet 3/16" |
| 3530 | 705010718 | Grommet |
| 3540 | 707900486 | Bulkhead Cover |
| 3600 | 707900442 | Central Upper Rear Bulkhead |
| 3610 | 707900773 | Aluminum Foil |
| 3620 | 707901047 | Rear Hose Support |
| 3630 | 293150230 | Tuflok Plastic Rivet |
| 3660 | 707900699 | Support Hose Rear |
| 3670 | 707900729 | Support Hose Rear |
| 6200 | 707900615 | LH Shoulder Pad |
| 6250 | 707900616 | RH Shoulder Pad |
| 6260 | 250100198 | Panel Nut M6 X 1.0 |
| 6270 | 250000722 | Torx Screw M6 X 20 |
