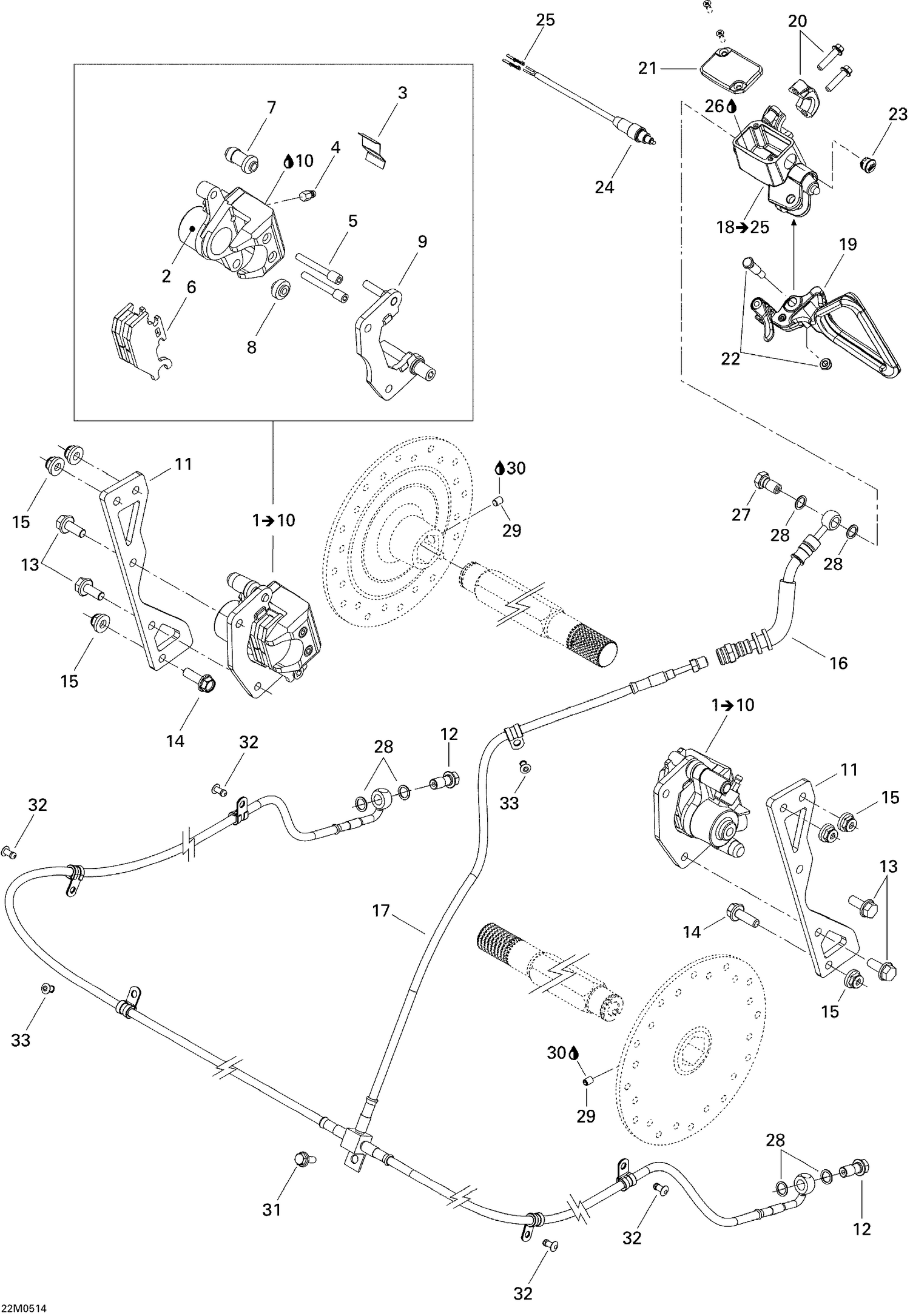

06- Hydraulic Brake
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705600294 | Piston Set |
| 3 | 705600079 | Spring |
| 4 | 705600080 | Bleeding Screw |
| 5 | 705600081 | Pin Set (2) |
| 6 | 705600014 | Brake Pad Kit |
| 7 | 705600082 | Compression Boot |
| 8 | 705600083 | Compression Boot |
| 9 | 705600298 | LH CALIPER SUPPORT - Call your local BRP dealership |
| 10 | Not | Available As Spare Part - Grease, Therma Lube, 2 G |
| 11 | 507032368 | Brake Support |
| 12 | 705600609 | Banjo Bolt (M10 x 1.25 thread) This part replaces 705600396. |
| 13 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 14 | 207682544 | Hex. Flange Screw M8 X 25 |
| 15 | 233281414 | Hex. Flange Elastic Nut M8 |
| 16 | 705600071 | Brake Hose |
| 17 | 507032371 | LH Front Hose Ass'y |
| 19 | 507032406 | Lever Ass'y |
| 20 | 507032477 | Clamp And Screw Kit This part replaces 415029800. |
| 21 | 415029900 | Cap |
| 22 | 415030000 | Pin Ass'y |
| 23 | 414990600 | WINDOW - Call your local BRP dealership |
| 24 | 507032366 | Microswitch |
| 25 | 605642628 | CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 26 | 293600063 | BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership |
| 26 | 293600131 | HYDRAULIC OIL - Call your local BRP dealership This part replaces 293600062. |
| 27 | 414920500 | Banjo Bolt |
| 28 | 414920600 | Washer |
| 29 | 414440800 | Socket Set Screw M8 X 10 |
| 30 | 293800005 | Loctite 271, 10 ml |
| 31 | 207661644 | Hex. Flange Screw M6 X 16 |
| 32 | 390909100 | Avex Rivet |
