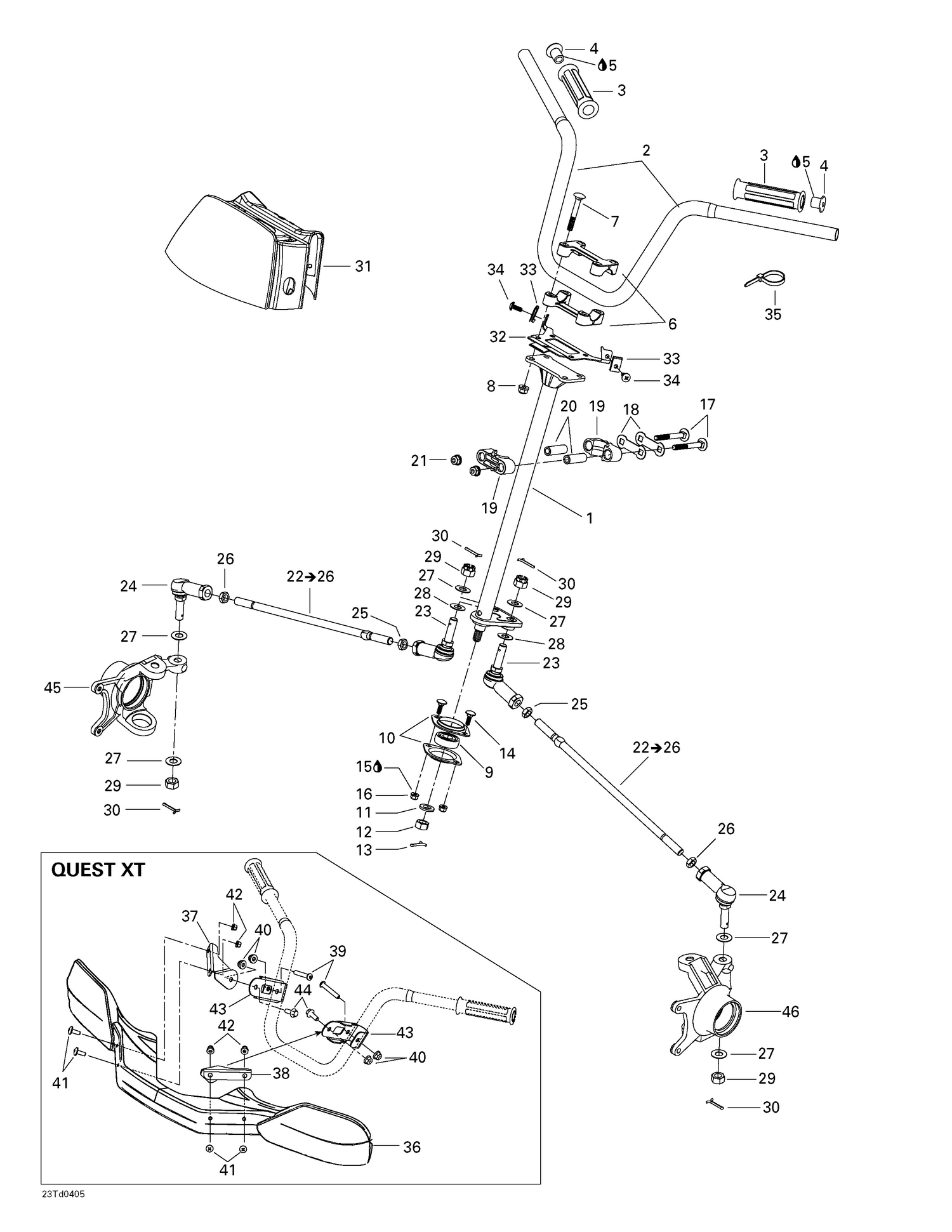

07- Steering System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 709400089 | Main Tube, Black |
| 2 | 709400199 | HANDLE BAR - Call your local BRP dealership |
| 3 | 709400493 | Handle Grip This part replaces 709400157. |
| 4 | 709400189 | END-PIECE - Call your local BRP dealership |
| 5 | 293800100 | Loctite 406, 7 Oz |
| 6 | 709400028 | Steering Clamp |
| 7 | 207786544 | CARRIAGE BOLT M8 X 65 - Call your local BRP dealership |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 9 | 709400439 | Ball Bearing This part replaces 709400224. |
| 10 | 709400152 | FLANGE, BEARING - Call your local BRP dealership |
| 11 | 234021410 | Flat Washer 12 mm |
| 12 | 250100099 | Nut M12 This part replaces 250100045. |
| 13 | 211400017 | Cotter Pin |
| 14 | 207762544 | Carriage Bolt M6 X 25 |
| 15 | 293800060 | Loctite 243, 10 ml |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 207787044 | Carriage Bolt M8 X 70 |
| 18 | 506150600 | Stopper Plate |
| 19 | 709400034 | HALF-HOUSING - Call your local BRP dealership |
| 20 | 506150500 | Housing Bushing |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 23 | 709402302 | RH Ball Joint This part replaces 709400241. |
| 24 | 709402303 | LH Ball Joint This part replaces 709400242. |
| 25 | Not | Available As Spare Part - R.h. hex jam nut M12 |
| 26 | Not | Available As Spare Part - LH hex jam nut M12 |
| 27 | 706200281 | Hardened Washer |
| 28 | 503189276 | Washer |
| 29 | 250100099 | Nut M12 This part replaces 250100045. |
| 30 | 211400013 | Cotter Pin |
| 31 | 709400229 | Steering Cover, Slate Grey |
| 32 | 709400077 | Cover Support, Black |
| 33 | 211100050 | Speednut M6 |
| 34 | 250000080 | PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 35 | 414115200 | Tie-Rap 180 mm |
| 43 | 709400118 | U Shaped Bracket |
| 45 | 709400095 | RH Knuckle |
| 293750008 | Tie | Wrap 368 mm 293750008 |
