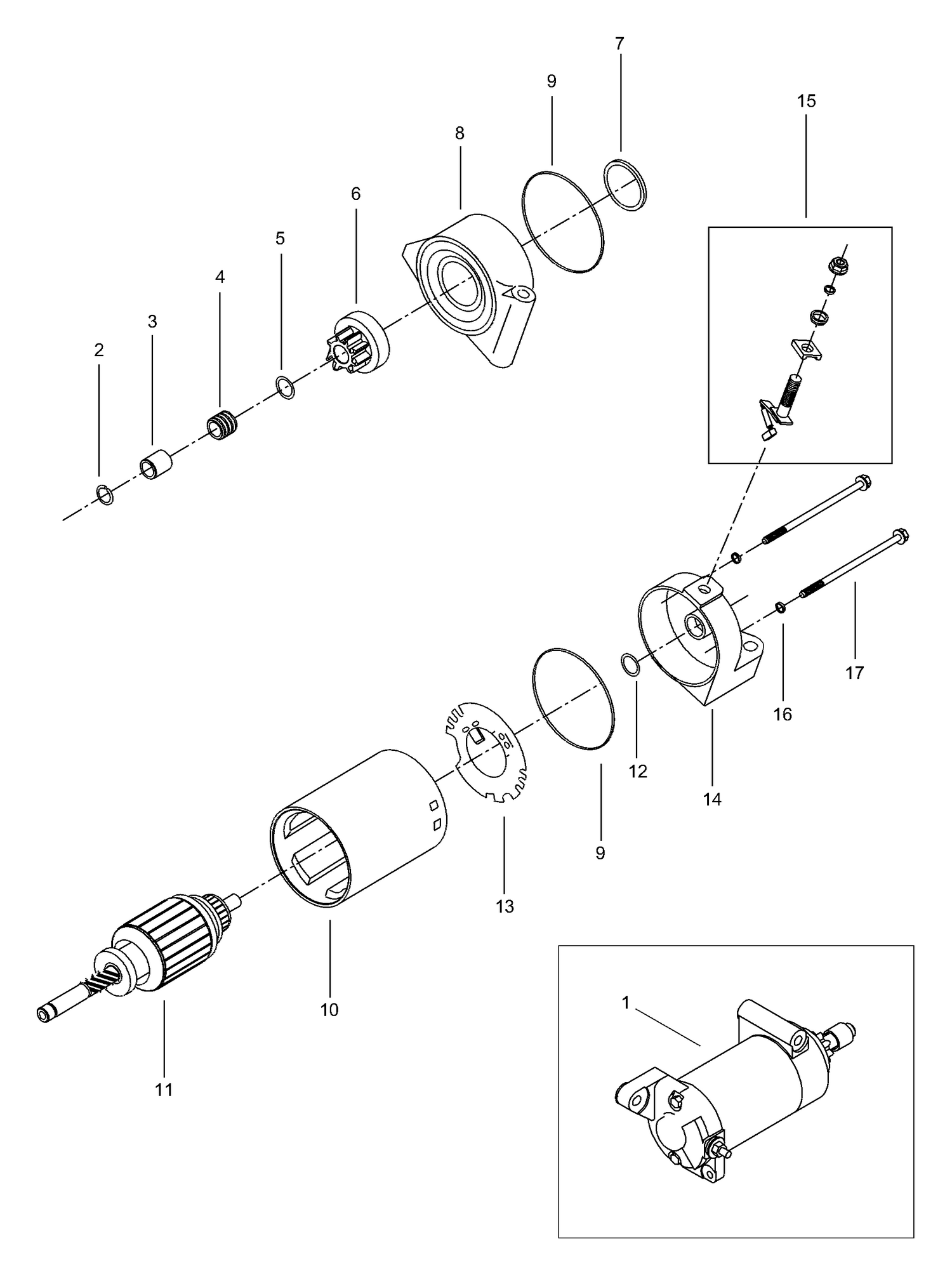

| Ref | Part Number | Description |
|---|
| 1 |
515176133 |
Electric start This part replaces 515176003. |
| 2 |
410207700 |
SNAP RING - Call your local BRP dealership |
| 3 |
415129338 |
KIT-CLUTCH - Call your local BRP dealership This part replaces 515175928. |
| 4 |
415129338 |
KIT-CLUTCH - Call your local BRP dealership This part replaces 410922957. |
| 5 |
278001105 |
WASHER PLATE - Call your local BRP dealership |
| 6 |
515175783 |
STARTER CLUTCH - Call your local BRP dealership |
| 7 |
415129342 |
O Ring Kit This part replaces 278000696. |
| 8 |
515175784 |
Housing assy |
| 9 |
278000695 |
O-ring |
| 10 |
410213104 |
Yoke assy |
| 11 |
515175785 |
Armature assy |
| 12 |
410204500 |
FLAT WASHER - Call your local BRP dealership |
| 13 |
515175786 |
BRUSH HOLDER - Call your local BRP dealership |
| 14 |
515175787 |
Housing assy |
| 15 |
410212100 |
Brush kit |
| 16 |
278000060 |
O-RING - Call your local BRP dealership |
