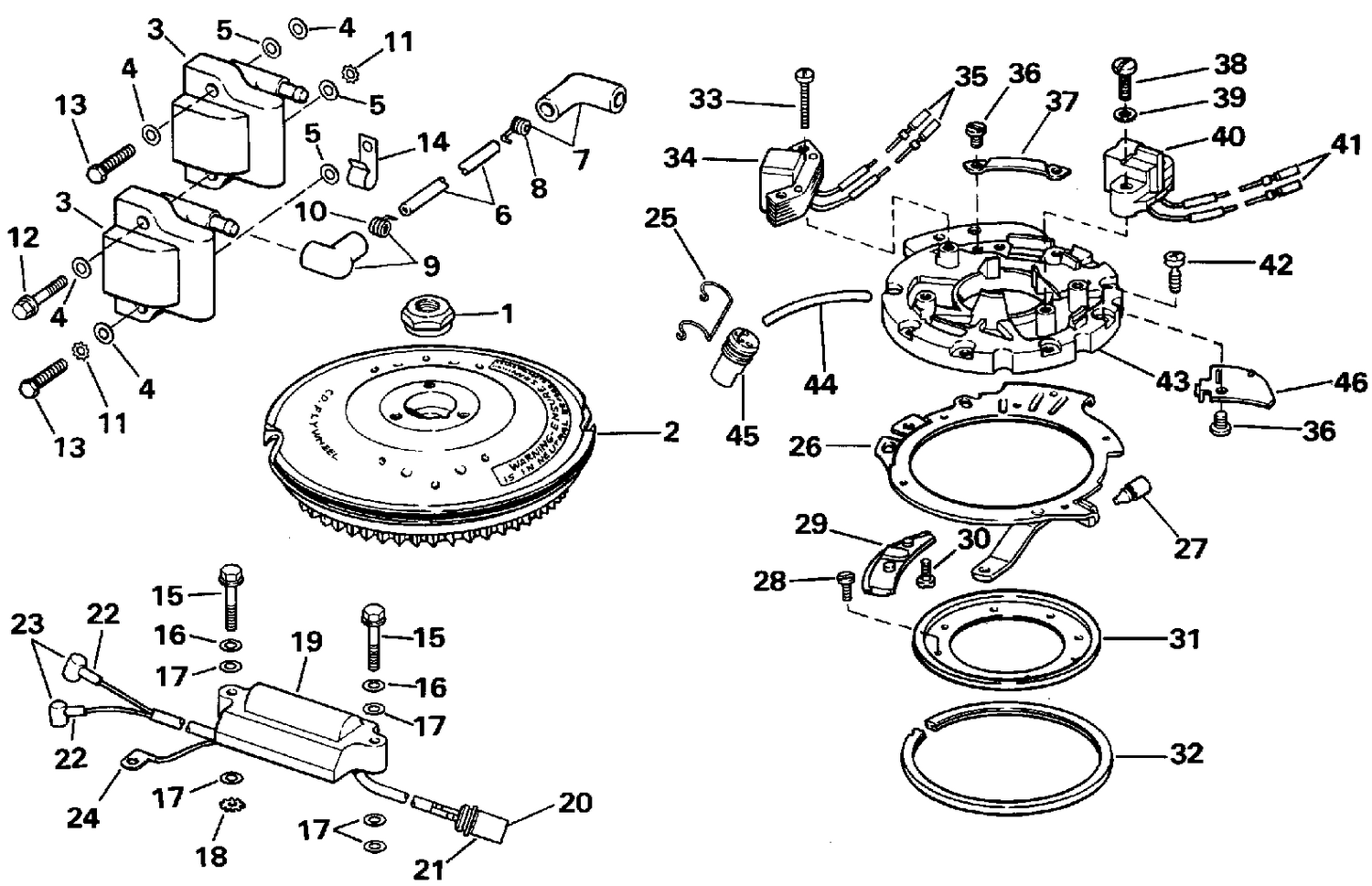

| Ref | Part Number | Description |
|---|
| 1 |
0302944 |
NIT,Flywheel |
| 2 |
0583913 |
FLYWHEEL ASSEMBLY This part replaces 0583077. |
| 3 |
0582508 |
COIL ASSY |
| 5 |
0329176 |
FIBER WASHER, Ignition coil |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 12 |
0323626 |
SCREW |
| 13 |
0328726 |
SCREW (Use existing coil screw) |
| 14 |
0330151 |
CLAMP, Harness to oil tank boss |
| 15 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter |
| 17 |
0329176 |
FIBER WASHER, Ignition coil |
| 19 |
0586800 |
POWER PACK ASSEMBLY This part replaces 0582285. |
| 25 |
0512743 |
DISPOSITIF DE RETENUE |
| 26 |
0395243 |
RETAINER & LINK ASSEMBLY |
| 27 |
0330579 |
BUMPER |
| 28 |
0319547 |
SCREW, Clamp & ground lead |
| 29 |
0396740 |
CAM, Throttle control |
| 31 |
0322102 |
PLATE, Support |
| 32 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 34 |
0581670 |
CHARGE COIL |
| 36 |
0303212 |
VIS, collier & capot |
| 37 |
0511458 |
COLLIER, fils |
| 40 |
0583387 |
SENSOR ASSEMBLY |
| 42 |
0511460 |
VIS, dispositif de retenue |
| 43 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 44 |
0512765 |
BRACKET |
| 0583391 |
0583391 |
ARMATURE PLATE ASSEMBLY |
