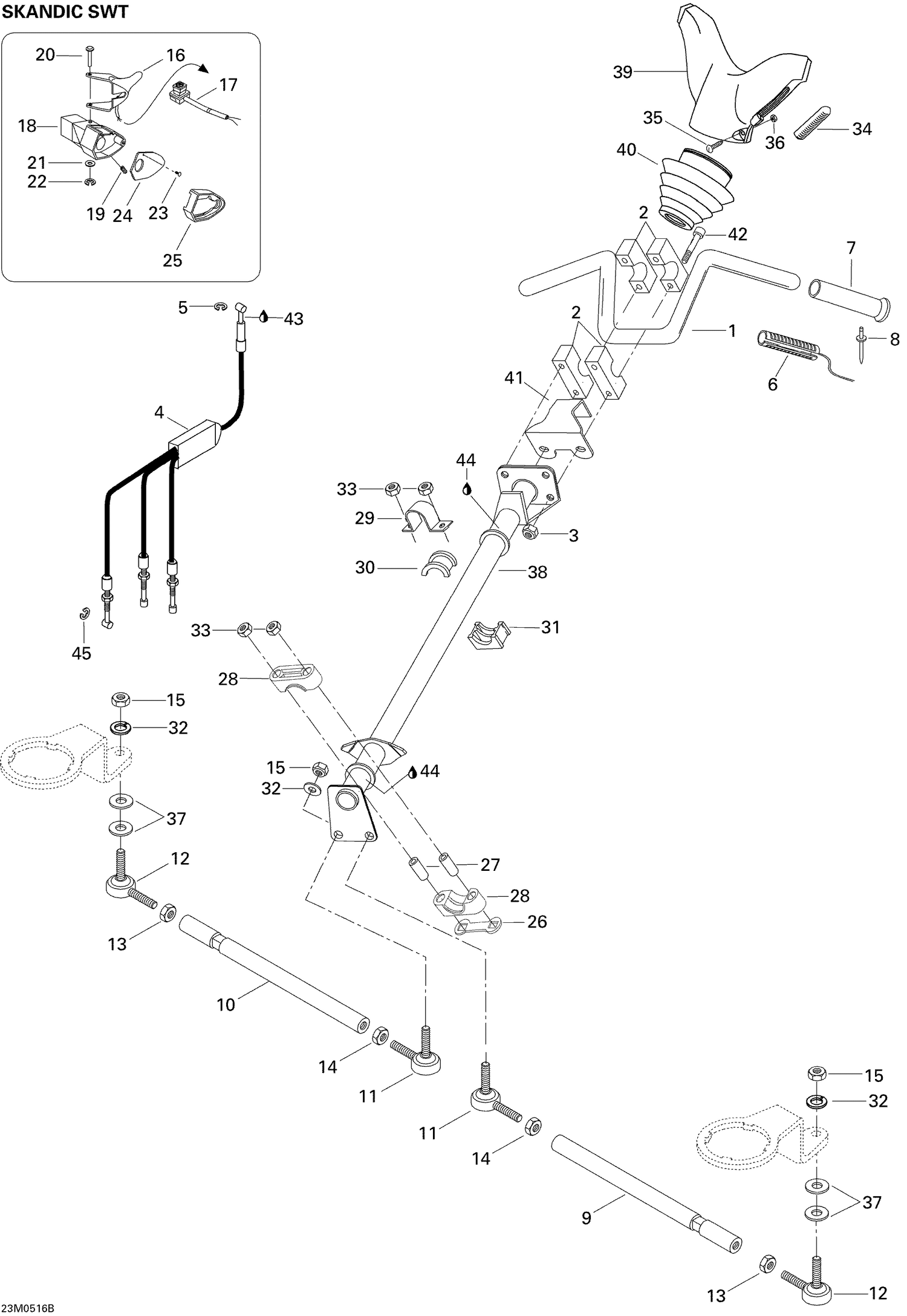

| Ref | Part Number | Description |
|---|
| 1 |
M529751 |
BAR-HANDLE - Call your local BRP dealership |
| 2 |
M548448 |
Support Guidon *Support-Steer. |
| 3 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 4 |
5244975 |
Throttle Cable - Call your local BRP dealership This part replaces M5244975. |
| 5 |
M31038 |
Circlip |
| 6 |
515175664 |
Heating Grip |
| 7 |
506152483 |
Grip This part replaces M5340464. |
| 8 |
36005 |
Rivet This part replaces M36005. |
| 9 |
M5441066 |
Tie Rod LH |
| 10 |
M548983 |
Rh Tie Rod |
| 11 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 12 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 13 |
M33019 |
RH NUT - Call your local BRP dealership |
| 14 |
M33017 |
LH NUT - Call your local BRP dealership |
| 15 |
232501416 |
Elastic Flange Nut M10 This part replaces M33023. |
| 16 |
512060214 |
Handle Ass'y This part replaces 512059623. |
| 17 |
515177362 |
Emergency Stop Switch This part replaces 414612700. |
| 18 |
512060603 |
Throttle Housing This part replaces 512059334. |
| 19 |
414440800 |
Socket Set Screw M8 X 10 |
| 20 |
414438700 |
Lever Pin |
| 21 |
234051600 |
Flat Washer M5, Stainless This part replaces 414438900. |
| 22 |
414439000 |
Circlip |
| 23 |
211000098 |
Screw |
| 24 |
512060390 |
Plate This part replaces 512059507. |
| 25 |
572044600 |
THROTTLE COVER - Call your local BRP dealership |
| 26 |
506150600 |
Stopper Plate |
| 27 |
506150500 |
Housing Bushing |
| 28 |
506150400 |
Housing Half |
| 29 |
M5343381 |
Retaining Support |
| 30 |
572064500 |
BUSHING - Call your local BRP dealership |
| 31 |
572064400 |
Bushing |
| 32 |
M20015 |
Lock Washer |
| 33 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces M33201. |
| 34 |
572023900 |
Key Way |
| 35 |
M40156 |
Screw |
| 36 |
M33062 |
NUT M5 - Call your local BRP dealership |
| 37 |
M31014 |
Washer |
| 38 |
M5245968 |
Main Tube |
| 39 |
572023800 |
Steering Padding |
| 40 |
M539033 |
Bellow |
| 41 |
M5444196 |
Support |
| 42 |
M40286 |
Socket Head Screw M8 X 45 |
| 43 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 44 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
