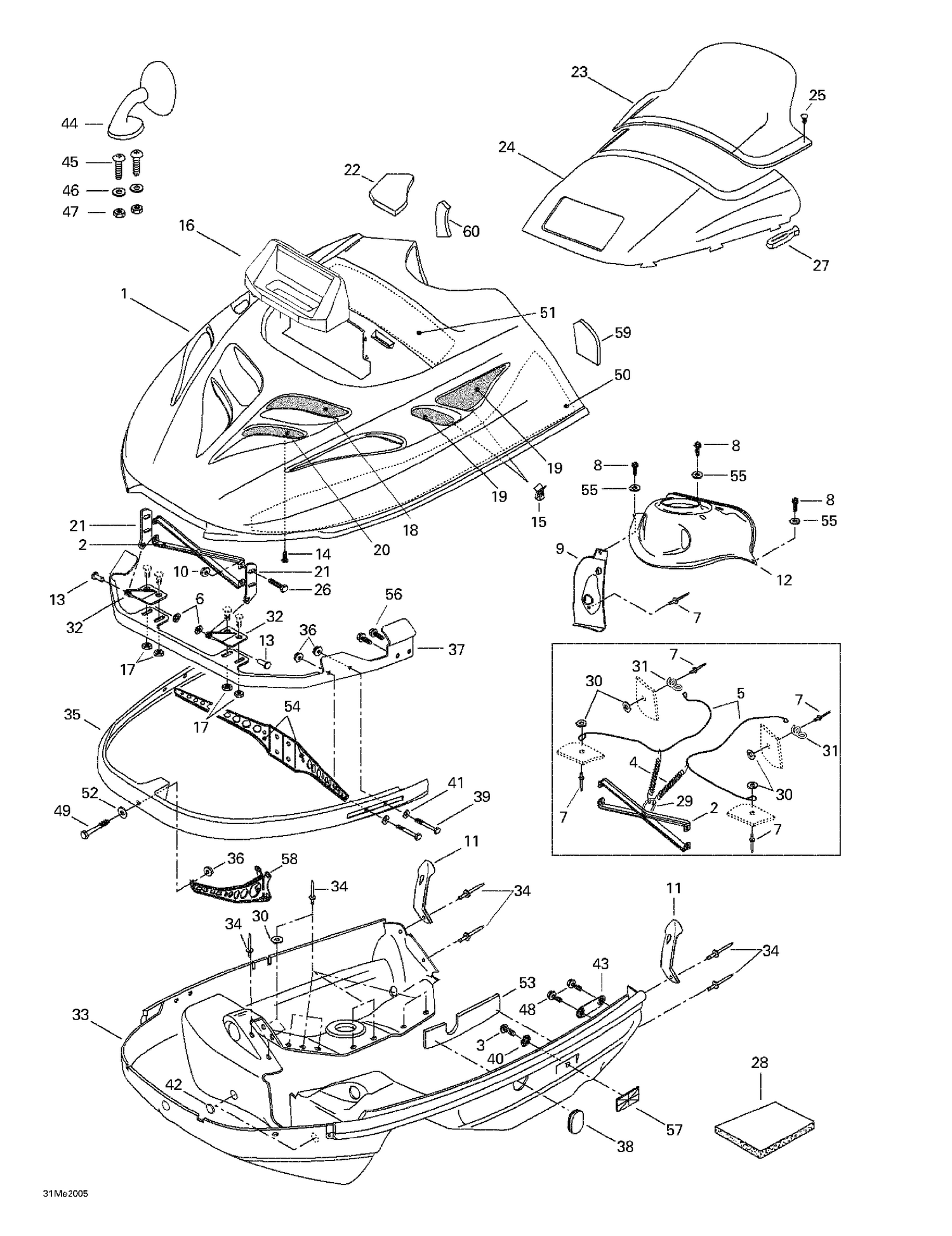

09- Cab, Console
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 517278100 | Hood Reinforcement |
| 3 | 208651041 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 4 | 414763300 | Spring |
| 5 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 6 | 389804300 | Push Nut |
| 7 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 8 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 10 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 11 | 570027100 | Hood Latch |
| 13 | 390906200 | FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 14 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 15 | 517302785 | Edge Clip This part replaces 517302183. |
| 16 | 415044800 | Sealing Foam |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 517298400 | RH Upper Grill Ass'y |
| 19 | 517280200 | Side Grill (Black) |
| 20 | 517298600 | RH Lower Grill |
| 21 | 517261100 | UPPPER HINGE - Call your local BRP dealership |
| 22 | 414975000 | Upper Foam |
| 23 | 415050500 | Medium Windshield |
| 24 | 572101800 | Windshield Support |
| 25 | 414939500 | Dart |
| 26 | 207151644 | Hex. Screw M5 X 16 |
| 27 | 570023800 | Windshield Latch |
| 28 | 414632400 | Acoustic Foam |
| 29 | 415058300 | RING - Call your local BRP dealership |
| 30 | 517124300 | Washer |
| 31 | 517262800 | Bracket |
| 32 | 517289900 | Welded Lower Hinge |
| 33 | 502006572 | Bottom Pan (Black) |
| 34 | 390906800 | Pop Rivet 3/16" |
| 35 | 517265400 | Front Bumper |
| 36 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 37 | 517296600 | Hinge Bracket |
| 38 | 570053702 | BOTTOM PAN CAP (BLACK) - Call your local BRP dealership |
| 39 | 207063044 | Hex. Screw M6 X 30 |
| 40 | 234451418 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 41 | 224061121 | Flat Washer |
| 42 | 572072100 | CAP - Call your local BRP dealership |
| 43 | 517267100 | Side Bracket |
| 48 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 49 | 207064044 | Hex. Screw M6 X 40 |
| 50 | 414883500 | LH Lower Foam |
| 51 | 414985100 | Center Foam |
| 52 | 224061201 | Flat Washer |
| 53 | 414931600 | Foam # 6 |
| 54 | 517295000 | LH Support |
| 55 | 391301600 | Washer |
| 56 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 57 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 58 | 517294500 | Front Support |
| 59 | 414883700 | LH Rear Foam |
| 414631900 | Acoustic | Foam 414631900 |
| 414631900 | Mousse | Acoustique 414631900 |
| 415048700 | Mousse | Avant Inférieur Panneau DR 415048700 |
| 415048700 | RH | Lower Foam 415048700 |
| 517295100 | Attache | DR 517295100 |
| 517295100 | RH | Support 517295100 |
| 517298500 | LH | Upper Grill Ass'y 517298500 |
| 517298700 | Grille | Inférieure GA 517298700 |
| 517298700 | LH | Lower Grill 517298700 |
