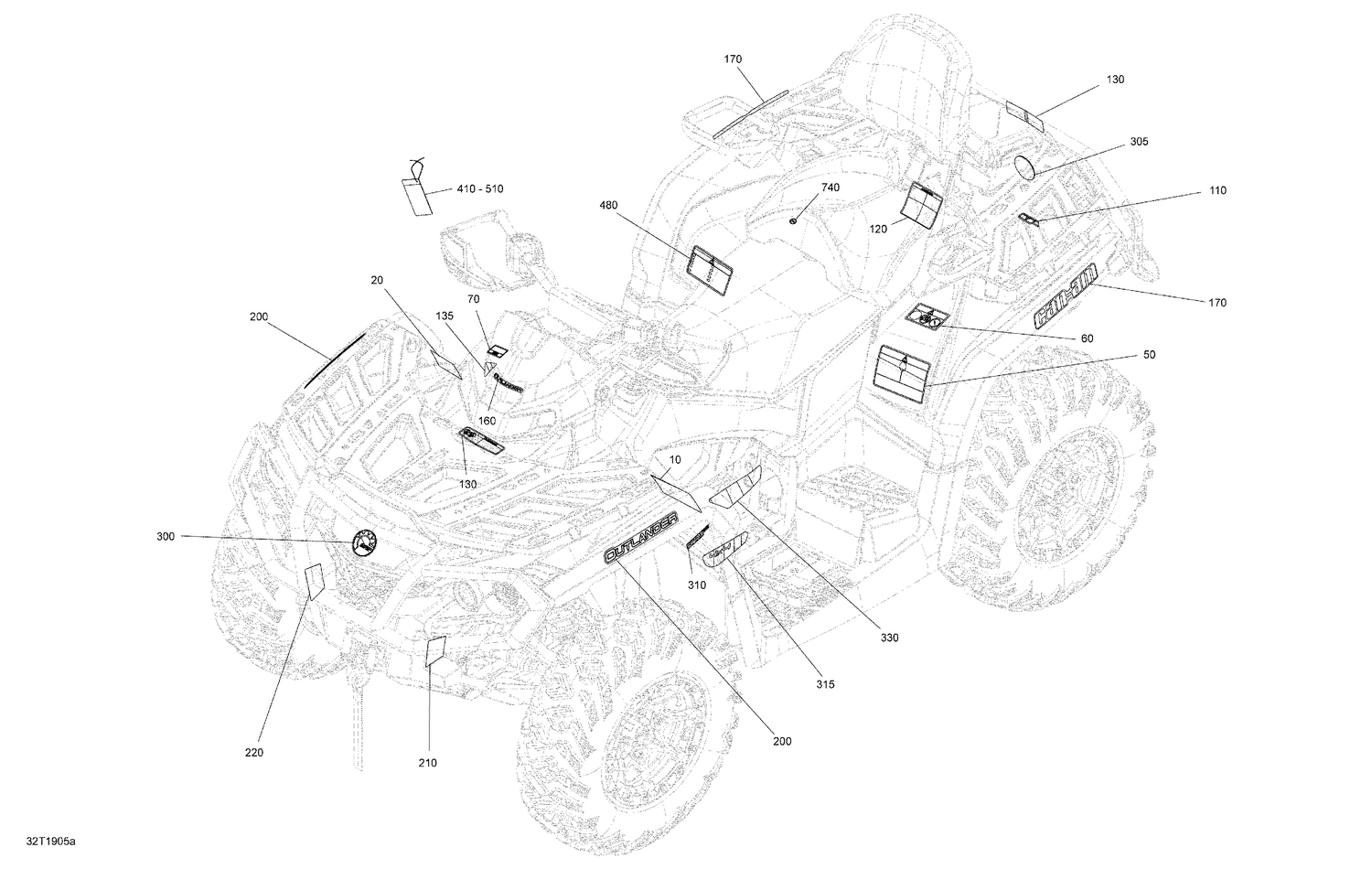

09- Decals DPS

09- Decals DPS

Parts (22)

RefPart NumberDescription
10 704907258 Warning Decal, Death and Injuries
20 704905679 Warning Decal Over 16
50 704906309 Warning Decal, Tire Pressure
60 704905694 Warning Decal Passenger
70 704905695 Warning Decal, Shifting Lever
110 704905699 Warning Decal Luggage Rack
120 704905701 Warning Decal, Seat Passenger
130 704905703 Warning Decal, Luggage Rack
135 704905706 Warning Decal, Hot Liquid
160 704905723 Console Decal "Outlander Max"
170 704907486 Deep Black/ Bright White, Decal "Can-Am"
200 704907487 Decal "Outlander"
210 704903972 LH Side Front Reflector
220 704903973 RH Side Front Reflector
300 516008739 BRP Logo 68mm
305 516008738 BRP Logo 48mm
310 704905746 Decal ROTAX POWER
330 704905749 LH Engine Decal "570 V-Twin EFI"
340 704905753 RH Engine Decal "570 V-Twin EFI"
410 704903946 Warning Decal, General Use Model
480 704905720 Decal, Mutltilingual
510 704905664 Decal Key "Off On"
