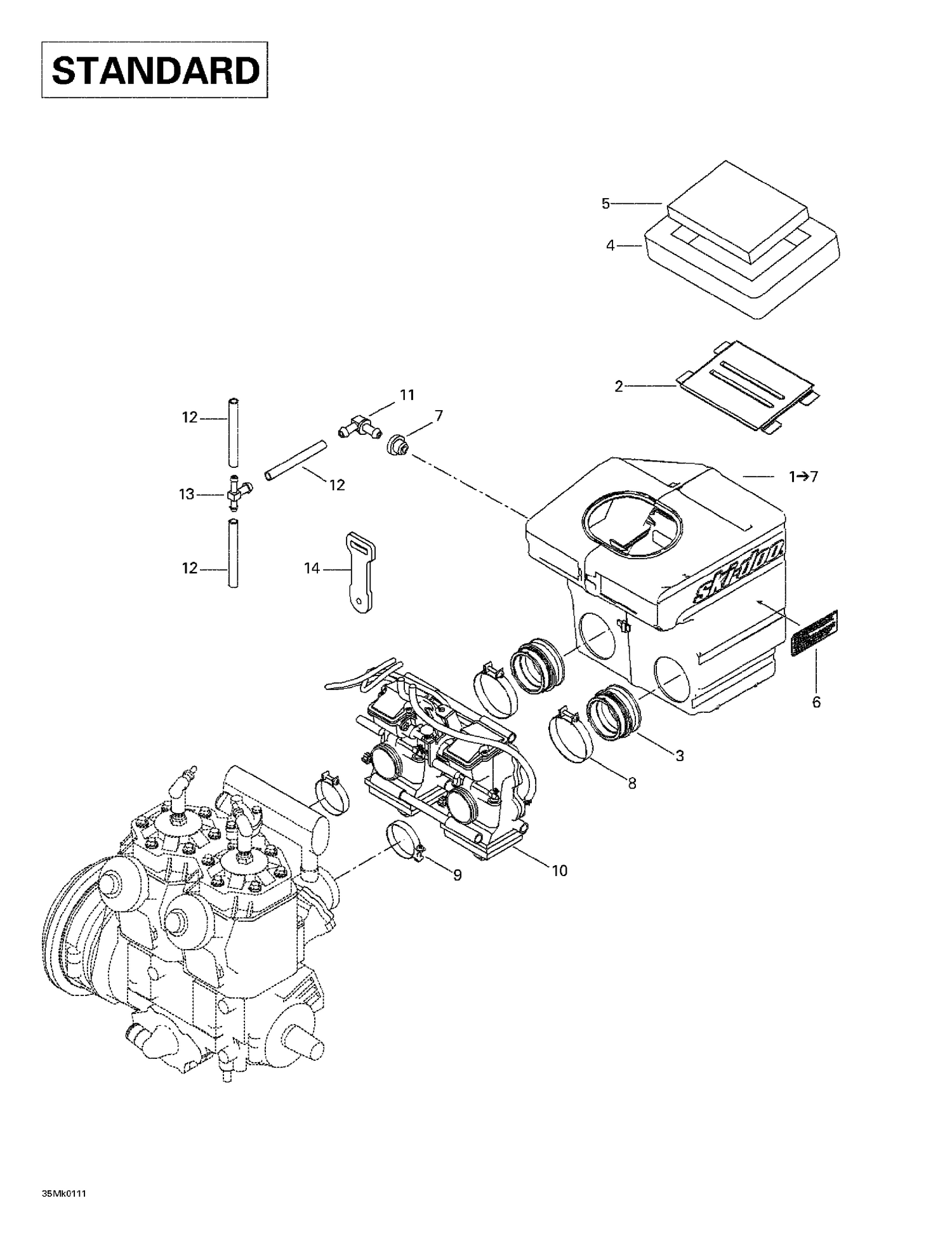

02- Air Intake System - Standard
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 3 | 508000092 | Air Intake Adaptor, 40 mm |
| 4 | 508000099 | Lower Foam |
| 5 | 508000154 | Air Filter |
| 6 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 7 | 513032908 | Grommet |
| 8 | 508000346 | Gemi Clamp This part replaces 508000162. |
| 9 | 512059835 | Gemi Clamp This part replaces 512059305. |
| 11 | 414580600 | Elbow Male Connector |
| 12 | 219704410 | Polyurethane Hose 10000Mm Long |
| 13 | 572045500 | T-Fitting |
