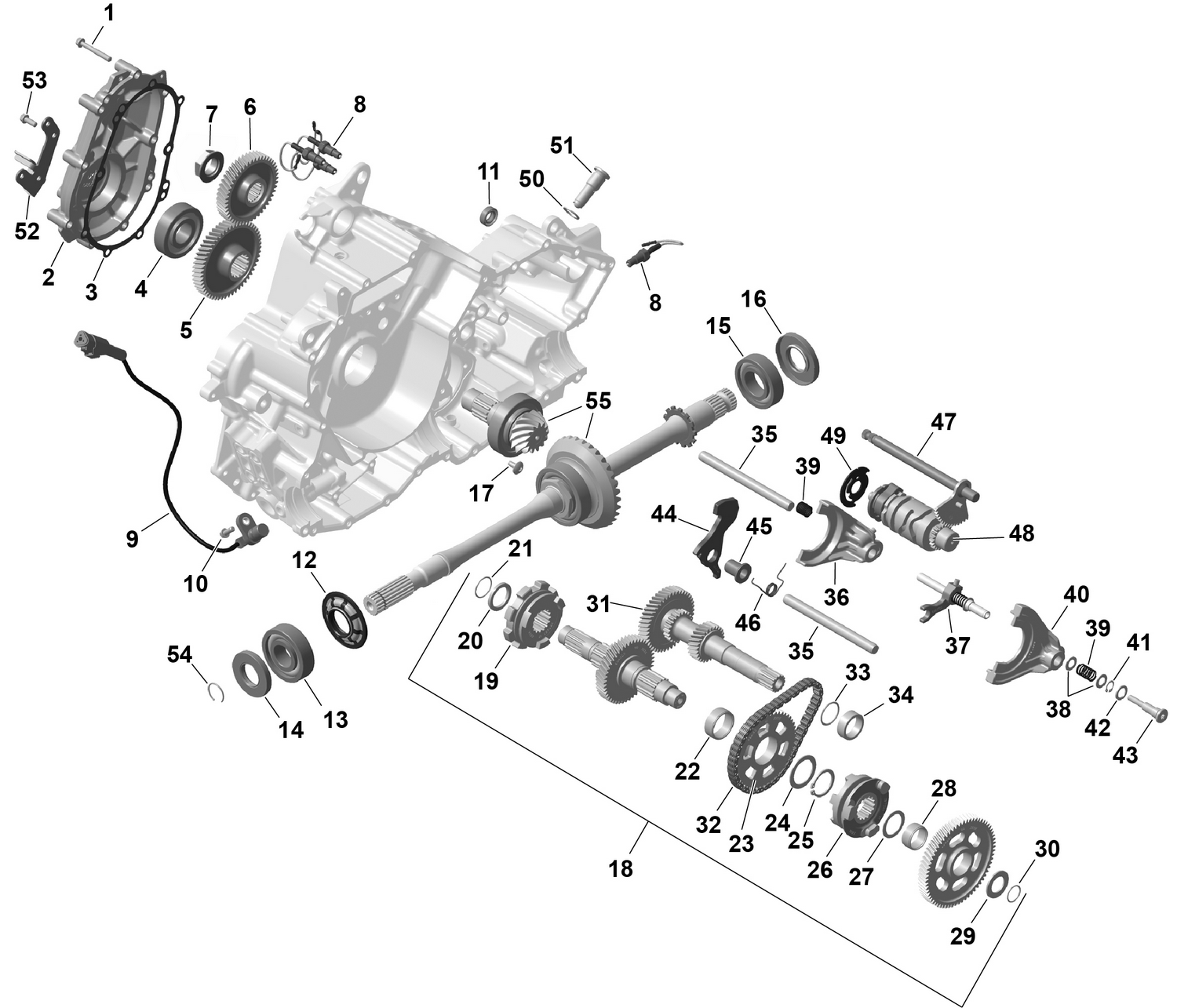

01- ROTAX - GearBox
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420440324 | Torx Flange Screw M6 X 45 |
| 2 | 420686892 | Gear Box Cover This part replaces 420686860. |
| 4 | 420932822 | Ball Bearing |
| 5 | 420934270 | Intermediate Gear 53 Teeth |
| 6 | 420934260 | Intermediate Gear 46 Teeth |
| 7 | 420842239 | Hex. Nut, M22 X 1.5 |
| 8 | 420640192 | Contact Screw M10 Ass'y With Cable |
| 9 | 420265727 | Camshft Position Sensor Ass'y This part replaces 420265722. |
| 10 | 420440162 | Torx Flange Screw M6 X 16 |
| 11 | 420250455 | Oil Seal |
| 13 | 420932822 | Ball Bearing |
| 15 | 420932580 | Ball Bearing |
| 17 | 420240051 | Torx Screw M6X13 |
| 19 | 420257254 | Shifting Sleeve |
| 20 | 420227864 | Thrust Washer |
| 21 | 420931391 | O-Ring |
| 22 | 420632359 | Needle Bearing |
| 23 | 420934190 | Pinion Gear 49 Teeth |
| 24 | 420626875 | Thrust Washer |
| 25 | 420945620 | Retaining Ring |
| 26 | 420257244 | Shifting Sleeve |
| 27 | 420427012 | Thrust Washer |
| 28 | 420632075 | Needle Bearing |
| 29 | 420627301 | Thrust Washer |
| 30 | 420230371 | O-Ring |
| 31 | 420820415 | Countershaft |
| 32 | 420898532 | Chain |
| 34 | 420247591 | Distance Ring |
| 35 | 420229243 | Dowel Pin 12X140 |
| 36 | 420657695 | Shift Fork |
| 37 | 420657707 | Shifting Block Ass'y |
| 38 | 420827590 | Thrust Washer |
| 39 | 420638151 | Spring |
| 40 | 420657685 | Gearshift Fork Ass'y |
| 41 | 420245330 | Snap Ring |
| 43 | 420240921 | Bearing Screw M12X1.5 |
| 44 | 420657760 | Parking Lock Lever |
| 45 | 420647132 | Collar Sleeve |
| 46 | 420638185 | Helical Spring |
| 47 | 420820346 | Shift Shaft Ass'y |
| 48 | 420657666 | Shifting Drum Ass'y This part replaces 420657661. |
| 49 | 420637955 | Isolating Washer |
| 50 | 420430624 | Oil Pressure Regulator Gasket Ring This part replaces 420430623. |
| 51 | 420441395 | Index Screw Ass'y M16X1.5 |
| 52 | 420651085 | Retaining Plate |
| 53 | 420440164 | Torx Flange Screw M6 X 16 |
| 54 | 420645024 | Retaining Ring |
