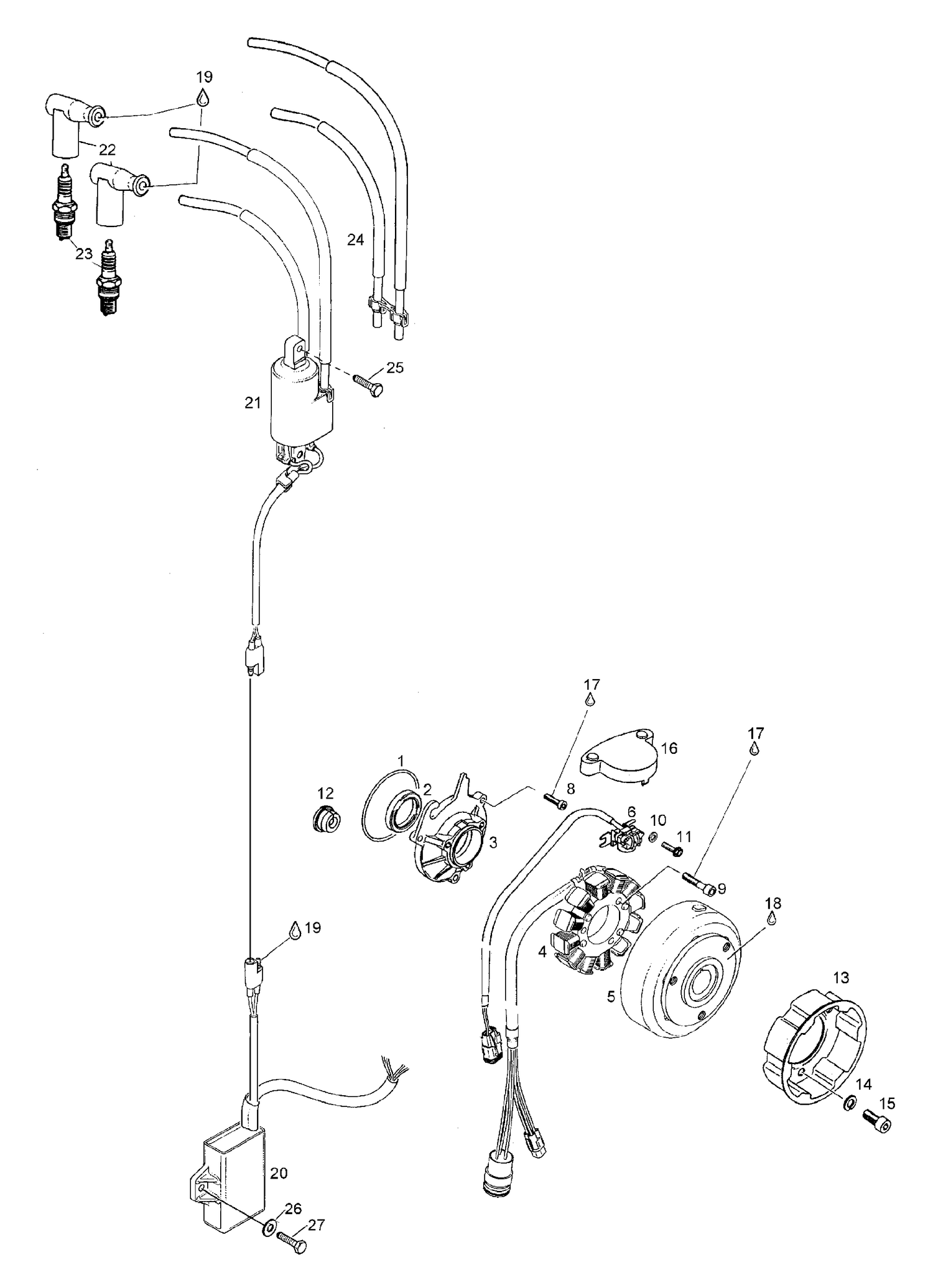

| Ref | Part Number | Description |
|---|
| 1 |
420850430 |
O-RING - Call your local BRP dealership |
| 2 |
420930695 |
SEAL-OIL - Call your local BRP dealership |
| 3 |
420810265 |
Armature plate |
| 4 |
420886584 |
Stator assy |
| 5 |
420888325 |
Magneto flywheel |
| 6 |
420965642 |
Pick up assy |
| 8 |
420941540 |
SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership |
| 9 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 10 |
420827800 |
WASHER - Call your local BRP dealership |
| 11 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 12 |
420860965 |
Cable grommet |
| 13 |
420852590 |
Starter cup This part replaces 420852416. |
| 14 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 15 |
420841520 |
Allen screw M8x12 |
| 16 |
420810700 |
Pick up cover |
| 17 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 18 |
219703000 |
Sealant Loctite 648 This part replaces 420899788. |
| 19 |
420897330 |
Lithium-base grease |
| 20 |
415085300 |
Amplifier-box |
| 21 |
415085400 |
IGNITION COIL - Call your local BRP dealership |
| 22 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 23 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 24 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 420965033. |
| 25 |
40030 |
Screw M6x20 |
| 26 |
20052 |
Lock washer |
