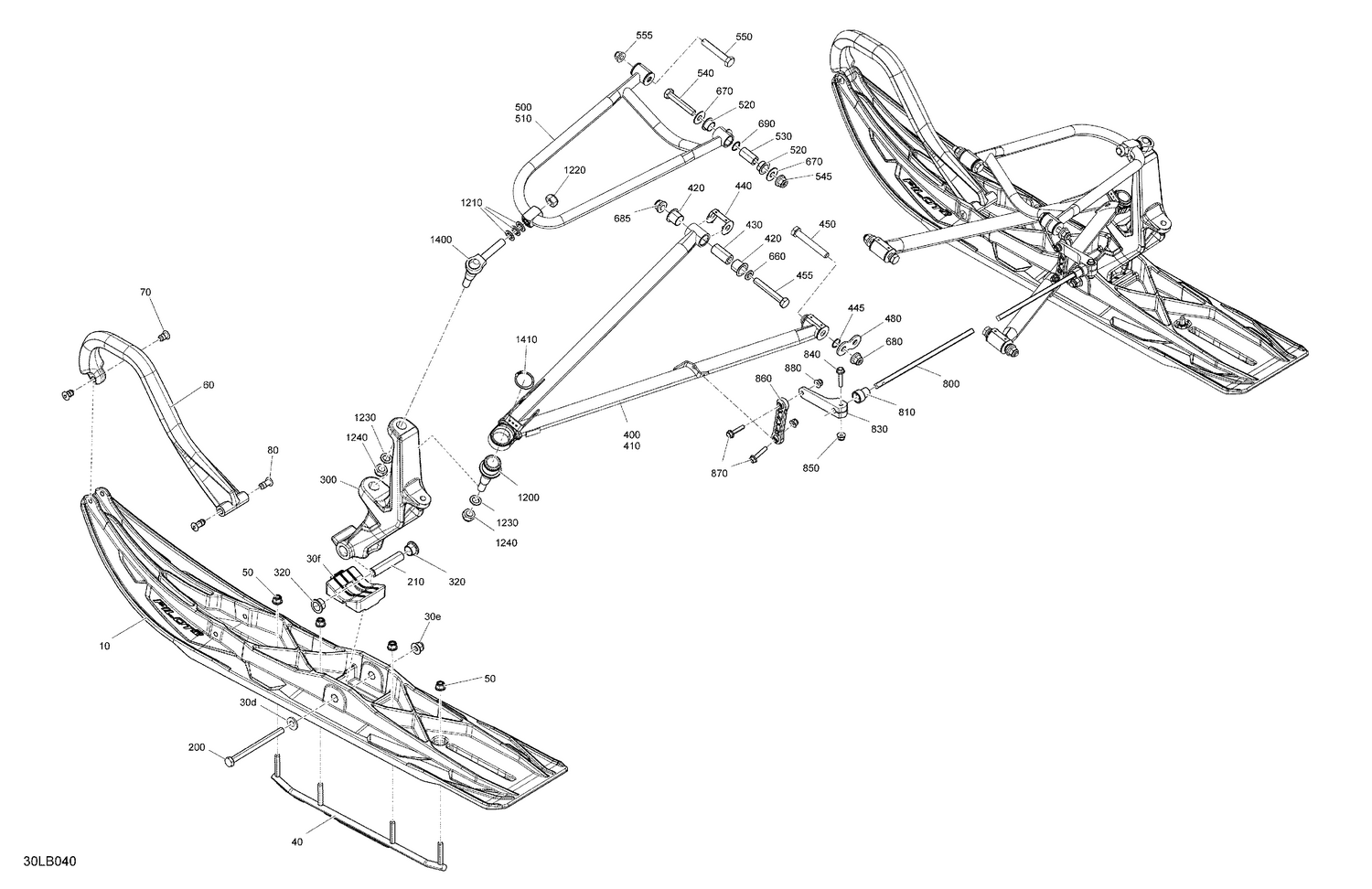

05- Suspension - Front
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 505074670 | Black, Racing Ski |
| 40 | 860201697 | Runner Kit |
| 50 | 233281414 | Hex. Flange Elastic Nut M8 |
| 60 | 505073138 | Black, Handle |
| 70 | 505071812 | Retainer 17mm long |
| 80 | 505072133 | Retainer 23mm Long |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 506133300 | Spacer |
| 220 | 503192496 | Washer |
| 230 | 233201464 | Hex. Elast. Flanged Nut M10 x 1.5 |
| 250 | 505072594 | Ski Stopper |
| 300 | 505074688 | Viper Red, RH Ski Leg RS |
| 320 | 505072690 | Leg Bushing |
| 400 | 505074655 | RH Lower Arm |
| 410 | 505074654 | LH Lower Arm |
| 420 | 503191766 | Cushion |
| 430 | 505072401 | Aluminum Bushing |
| 440 | 505072634 | Wear Plate |
| 445 | 505072448 | O-Ring |
| 450 | 250001024 | Screw Hex. M10 X 70 |
| 455 | 250001024 | Screw Hex. M10 X 70 |
| 480 | 505074424 | Rear Reinforcement |
| 500 | 505074899 | LH Upper Arm |
| 510 | 505074900 | RH Upper Arm |
| 520 | 505073018 | Bushing |
| 530 | 505075322 | Bushing |
| 540 | 250001023 | Screw Hex. M10 X 60 |
| 545 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 550 | 250001023 | Screw Hex. M10 X 60 |
| 555 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 685 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 800 | 505074719 | Stabiliser |
| 810 | 505072064 | Bushing |
| 830 | 505073731 | Stabilisator Lever |
| 840 | 207663056 | Hex Flange Screw M6 X 1.0 X 30 |
| 850 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 860 | 505072204 | Sway Bar Double Joint Link |
| 870 | 207663056 | Hex Flange Screw M6 X 1.0 X 30 |
| 880 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 1200 | 505074133 | Ball Joint |
| 1210 | 503189276 | Washer |
| 1220 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1400 | 505072257 | Upper Ball Joint |
