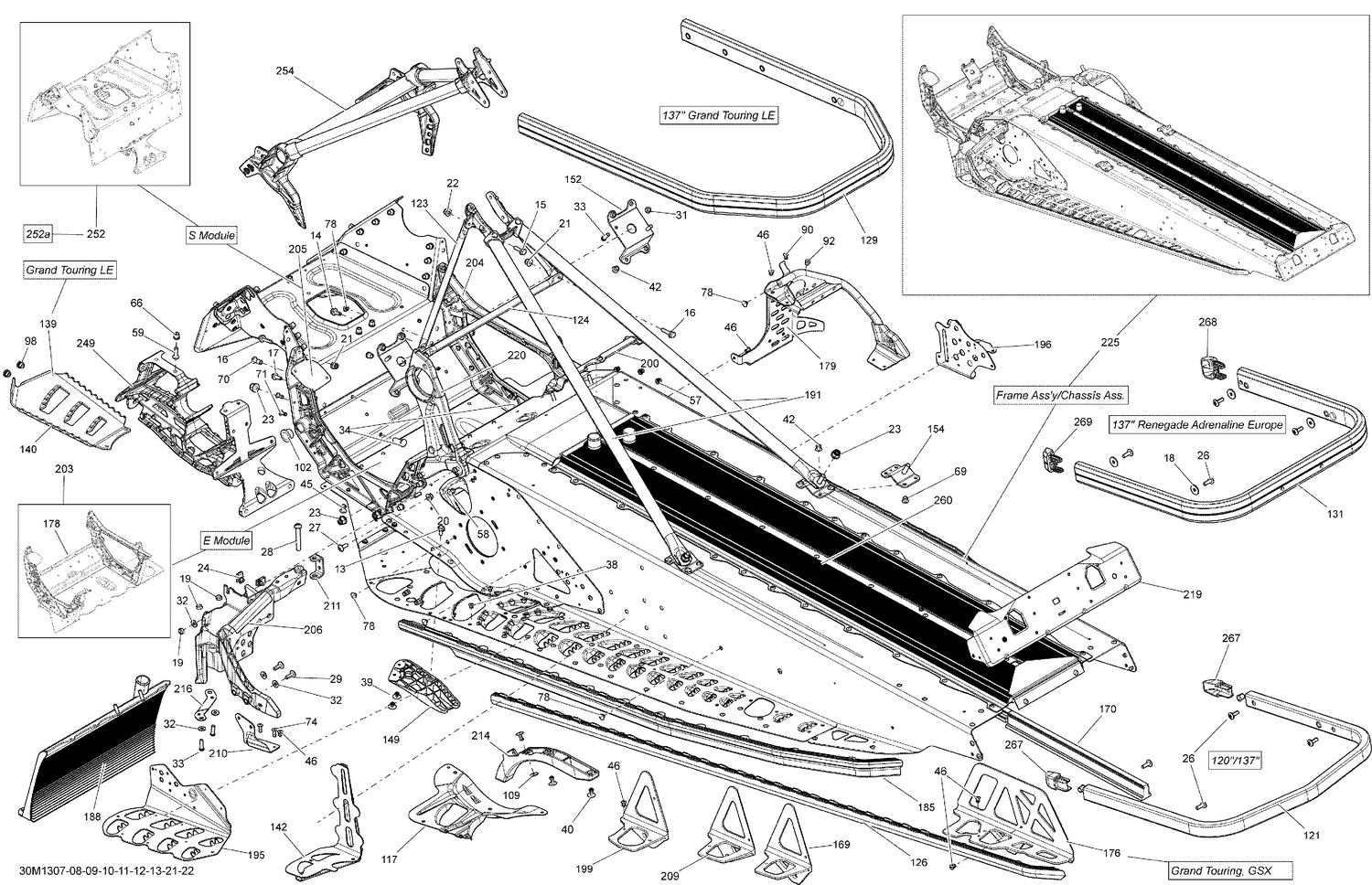

09- Frame
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 13 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 14 | 207661644 | Hex. Flange Screw M6 X 16 |
| 15 | 207662044 | Hex. Flange Screw M6 X 20 |
| 16 | 207662544 | Hex. Flange Screw M6 X 25 |
| 17 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 18 | 224061201 | Flat Washer |
| 19 | 232561414 | Elastic Stop Nut M6 |
| 20 | 233061414 | Hex. Flange Nut M6 |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 26 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 27 | 250000534 | Tork Screw M6 X 16 |
| 28 | 250000535 | Torx Screw M8 X 55 |
| 29 | 250000536 | Tork Screw M6 X 18 |
| 32 | 250200039 | Flat Washer |
| 33 | 250300027 | Clinch Stud M6 X 20 |
| 34 | 250300038 | Clinch Stud |
| 38 | 293150102 | Rivet 3/16" |
| 39 | 293150104 | Pop Rivet 3/16" |
| 40 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 42 | 293150119 | Hemlock Rivet, 6.5 mm |
| 45 | 293150120 | Hemlock Rivet 6.5 mm |
| 46 | 293150144 | Stavex Rivet |
| 57 | 293150146 | Henrob Rivet |
| 58 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 59 | 207662044 | Hex. Flange Screw M6 X 20 |
| 66 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 69 | 293150174 | Hemlock Rivet, 6.4 mm |
| 70 | 293150182 | Monobolt Rivet 6.4 |
| 71 | 293150191 | Monobolt Rivet, 4.8 mm |
| 90 | 390909100 | Avex Rivet |
| 92 | 390909200 | Avex Rivet |
| 96 | XXX | Not Available As Spare Parts |
| 102 | 505073317 | Leg Cushion |
| 109 | 517124300 | Washer |
| 117 | 518324874 | RH Reinforcement |
| 117 | 518324875 | LH Reinforcement |
| 123 | 518325114 | Upper Lateral Column Support |
| 124 | 518325115 | Center Column Support |
| 126 | XXX | Not Available As Spare Parts |
| 149 | 518325782 | RH Deflector, Black Polypropylene |
| 149 | 518325783 | LH Deflector, Black Polypropylene |
| 152 | 518325943 | MAG Engine Support |
| 154 | 518325973 | RH Rear Base |
| 154 | 518325974 | LH Rear Base |
| 170 | 860200802 | TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 178 | 518326198 | Front Member |
| 179 | 518328938 | RH Stirup This part replaces 518326216. |
| 185 | 518324812 | RH Roller |
| 185 | 518324813 | LH Roller |
| 188 | 518326485 | Front Radiator |
| 191 | 518326559 | Rear Member |
| 195 | 860200813 | CHASSIS KIT - Call your local BRP dealership This part replaces 860200522. |
| 196 | 518326616 | RH Front Suspension Retainer |
| 196 | 518326617 | LH Front Suspension Retainer |
| 200 | 518326656 | Seal |
| 203 | 518327567 | E Module |
| 204 | 518326795 | RH Member |
| 205 | 518326796 | LH Member |
| 206 | 518326820 | LH Stirup |
| 210 | 518326960 | Support |
| 211 | 518326961 | U-Attach |
| 214 | 518326973 | Front Tunnel Protector |
| 216 | 518326986 | Attach |
| 219 | 518327105 | Rear Cap |
| 220 | 518327460 | Driven Pulley Support This part replaces 518327133. |
| 225 | 415129809 | FRAME SPORT - Call your local BRP dealership This part replaces 415129740. |
| 249 | 518327487 | Front Suspension Support This part replaces 518327475. |
| 252 | 518328320 | Cross Member S Module This part replaces 518327495. |
| 254 | 518326970 | Front Member |
