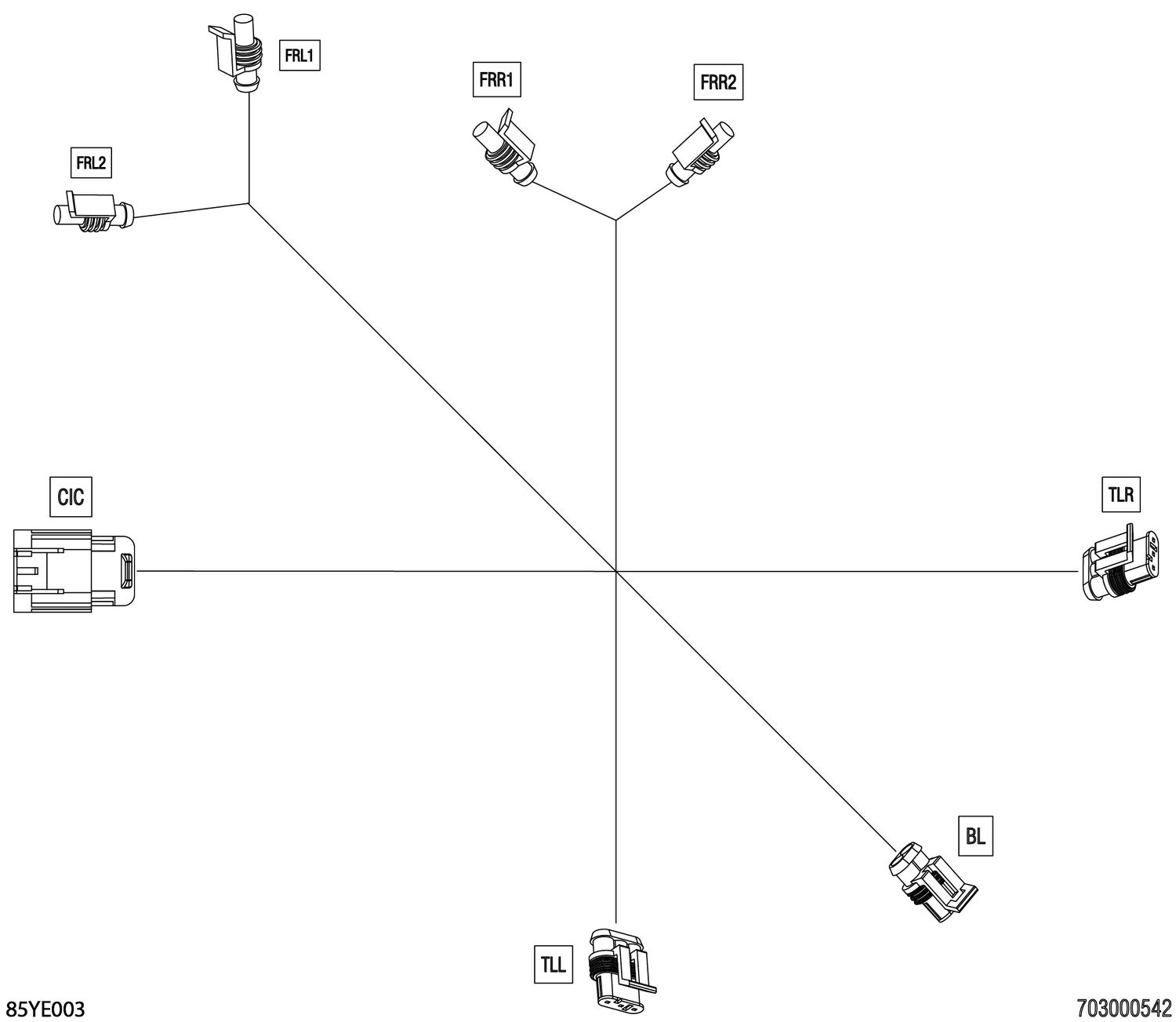

08- Electric - Rear Box Wiring Harness - 710009560
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| BL | 409209500 | Female Housing, 2 Circuits |
| BL | 515176621 | Wire Seal |
| BL | 710001340 | Female Terminal |
| CIC | 710001223 | Terminal |
| CIC | 710001224 | Terminal |
| CIC | 710001225 | Cap |
| CIC | 710001233 | Seal |
| CIC | 710001332 | Seal Wire |
| CIC | 710001927 | Housing |
| CIC | 710006181 | Lock |
| FRL1 | 278001012 | Male Housing, 1 Circuit |
| FRL1 | 515176621 | Wire Seal |
| FRL1 | 710001340 | Female Terminal |
| FRL2 | 278001012 | Male Housing, 1 Circuit |
| FRL2 | 515176621 | Wire Seal |
| FRL2 | 710001340 | Female Terminal |
| FRR1 | 278001012 | Male Housing, 1 Circuit |
| FRR1 | 515176621 | Wire Seal |
| FRR1 | 710001340 | Female Terminal |
| FRR2 | 278001012 | Male Housing, 1 Circuit |
| FRR2 | 515176621 | Wire Seal |
| FRR2 | 710001340 | Female Terminal |
| TLL | 278001013 | Wire Seal |
| TLL | 278001014 | Female Terminal |
| TLL | 409209600 | Female Housing, 3 Circuits |
| TLL | 515176621 | Wire Seal |
| TLL | 710001340 | Female Terminal |
| TLR | 278001013 | Wire Seal |
| TLR | 278001014 | Female Terminal |
| TLR | 409209600 | Female Housing, 3 Circuits |
| TLR | 515176621 | Wire Seal |
| 10 | 710009560 | Rear Wiring Harness |
