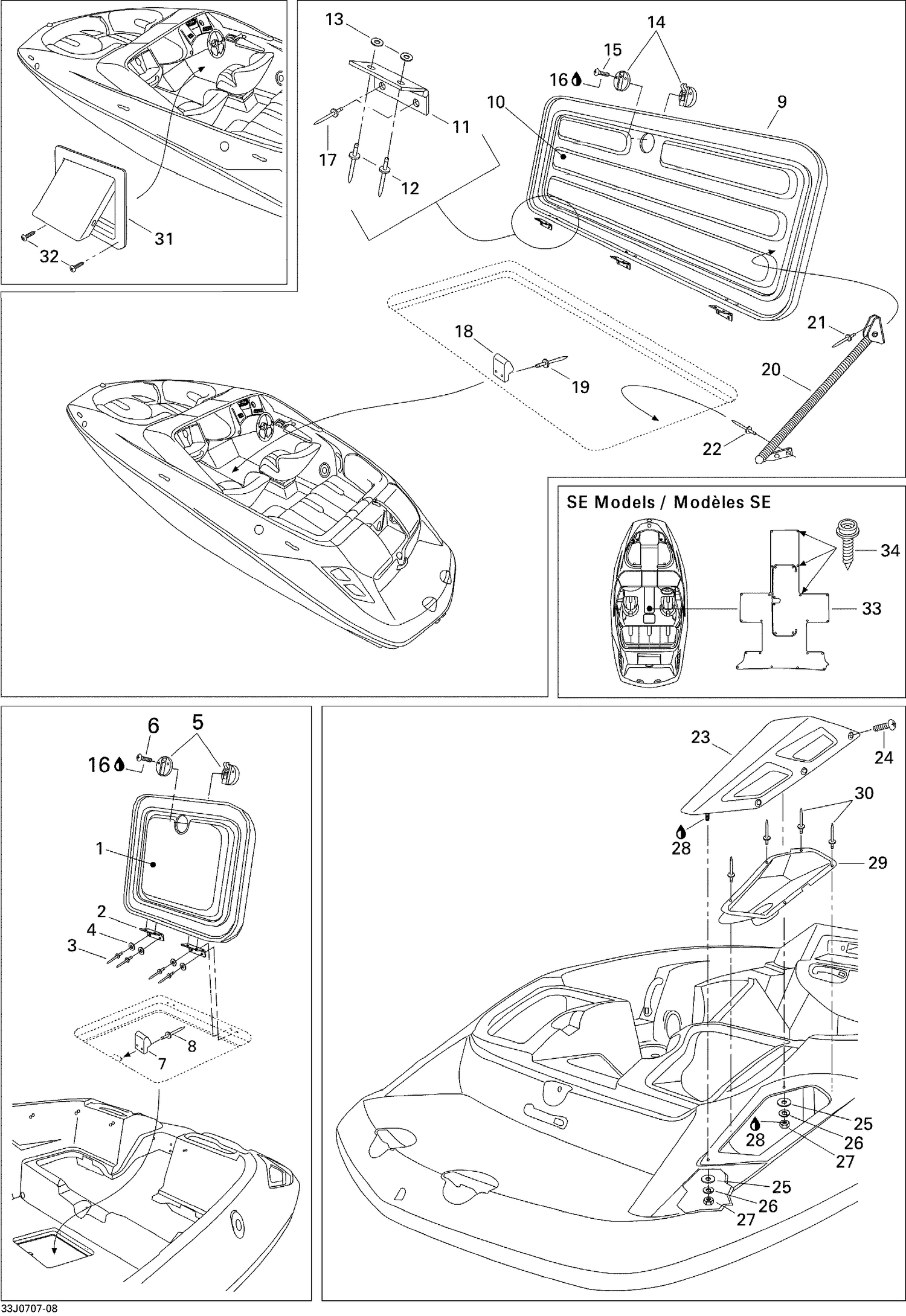

| Ref | Part Number | Description |
|---|
| 1 |
204072592 |
ACCESS DOOR - Call your local BRP dealership |
| 2 |
204072601 |
HINGE - Call your local BRP dealership |
| 3 |
293150088 |
Pop Rivet 3/16" |
| 4 |
234051600 |
Flat Washer M5, Stainless |
| 5 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 6 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 7 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 8 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 9 |
204073144 |
CENTER COVER - Call your local BRP dealership This part replaces 204072455. |
| 10 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 11 |
204072601 |
HINGE - Call your local BRP dealership |
| 12 |
293150088 |
Pop Rivet 3/16" |
| 13 |
234051600 |
Flat Washer M5, Stainless |
| 14 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 15 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 16 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 17 |
293150005 |
Pop Rivet 3/16" |
| 18 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 19 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 20 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 21 |
204000081 |
Pop Rivet 3/16" |
| 22 |
293150043 |
Pop Rivet 3/16" |
| 24 |
204100154 |
PHILLIPS SCREW 1 - Call your local BRP dealership |
| 25 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 26 |
211200025 |
Lock Washer 1/4” |
| 27 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 28 |
293800060 |
Loctite 243, 10 ml |
| 30 |
293150015 |
Pop Rivet 1/8” |
| 31 |
204072447 |
ACCESS DOOR - Call your local BRP dealership |
| 32 |
209941960 |
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership |
