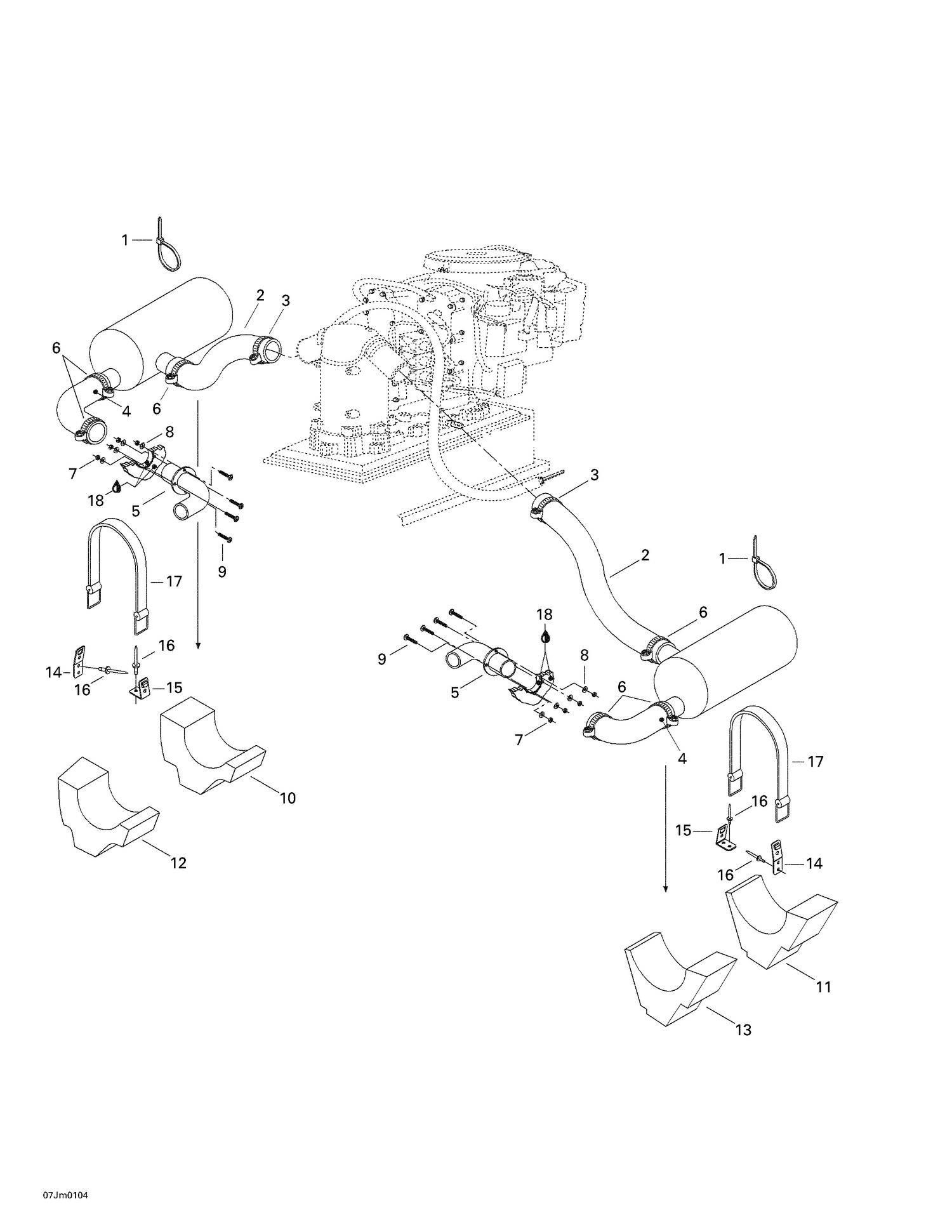

| Ref | Part Number | Description |
|---|
| 1 |
293750020 |
WRAP_TIE 828 X 9 - Call your local BRP dealership |
| 2 |
204340294 |
FLEXIBLE EXHAUST - Call your local BRP dealership |
| 3 |
293650064 |
Tridon Clamp |
| 4 |
204340297 |
Exhaust Hose |
| 5 |
204340249 |
Exhaust Outlet Ass'y |
| 6 |
293650112 |
Tridon Clamp |
| 7 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
208663560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 10 |
204340237 |
Front Muffler Support (Port) |
| 11 |
204340199 |
Front Muffler Support (Starboard) |
| 12 |
204340238 |
Rear Muffler Support (Port) |
| 13 |
204340200 |
Rear Muffler Support (Starboard) |
| 14 |
293850024 |
STRAP CLIP - Call your local BRP dealership |
| 15 |
204060017 |
Strap Clip 90° |
| 16 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 17 |
293850022 |
STRAP - Call your local BRP dealership |
